Status Indicator RAPs
12-961 Mix Full Stack
• Compared to the maximum paper size that was loaded at the previous job, the paper size
(either feed direction or width direction) of the next job is bigger.
• Staple mode has been changed while the width of the maximum paper size that was
loaded at the previous job is less than 279.4mm.
• The maximum paper size that was loaded at the previous job is unknown.
Procedure
Remove the Finisher Front Cover. Enter dC330 [012-204] and press Start. Actuate the Stack A
Sensor (Figure 1). The display changes.
YN
Press Stop. Check the circuit of the Stack A Sensor (Figure 2). Refer to the OF 99-2 RAP
for troubleshooting procedure.
Enter dC330 [012-205] and press Start. Actuate the Stack B Sensor. The display changes.
YN
Press Stop. Check the circuit of the Stack B Sensor (Figure 3). Refer to the OF 99-2 RAP
for troubleshooting procedure.
Enter dC330 [012-200] and press Start. Actuate the Stacker Paper Sensor. The display
changes.
YN
Press Stop. Check the circuit of the Stacker Paper Sensor (Figure 4). Refer to the OF 99-
2 RAP for troubleshooting procedure.
Press Stop. Rotate the Stacker Motor Drive Pulley manually by turning the Stacker Drive
Motor Drive Gear (PL 17.11). The pulley rotates smoothly.
YN
Check the following and repair the Stacker Drives as required (PL 17.11).
• Stacker Motor Gear for wear and damage.
• Stacker Tray for dragging and incorrect installation.
• Stacker Elevator Belt/rack/gear for wear and damage.
Disconnect Stacker Motor P/J889. Measure the resistance between pin 1 and pin 2 of the
motor connector. Between 12 to 40 ohms is measured while the pulley is rotated manu-
ally.
YN
Replace the Stacker Motor (PL 17.11).
• Ensure that the connectors shown in the circuit diagrams (Figure 2, Figure 3, Figure 4,
Figure 5) are securely connected and that the wires are not damaged.
• If the problem persists, replace Finisher PWB (PL 17.13) (Figure 6).
NOTE: The large white Stacker Drive Pulley can be pulled out to release the Stacker Drives to
free the Stacker Tray (REP 12.20).

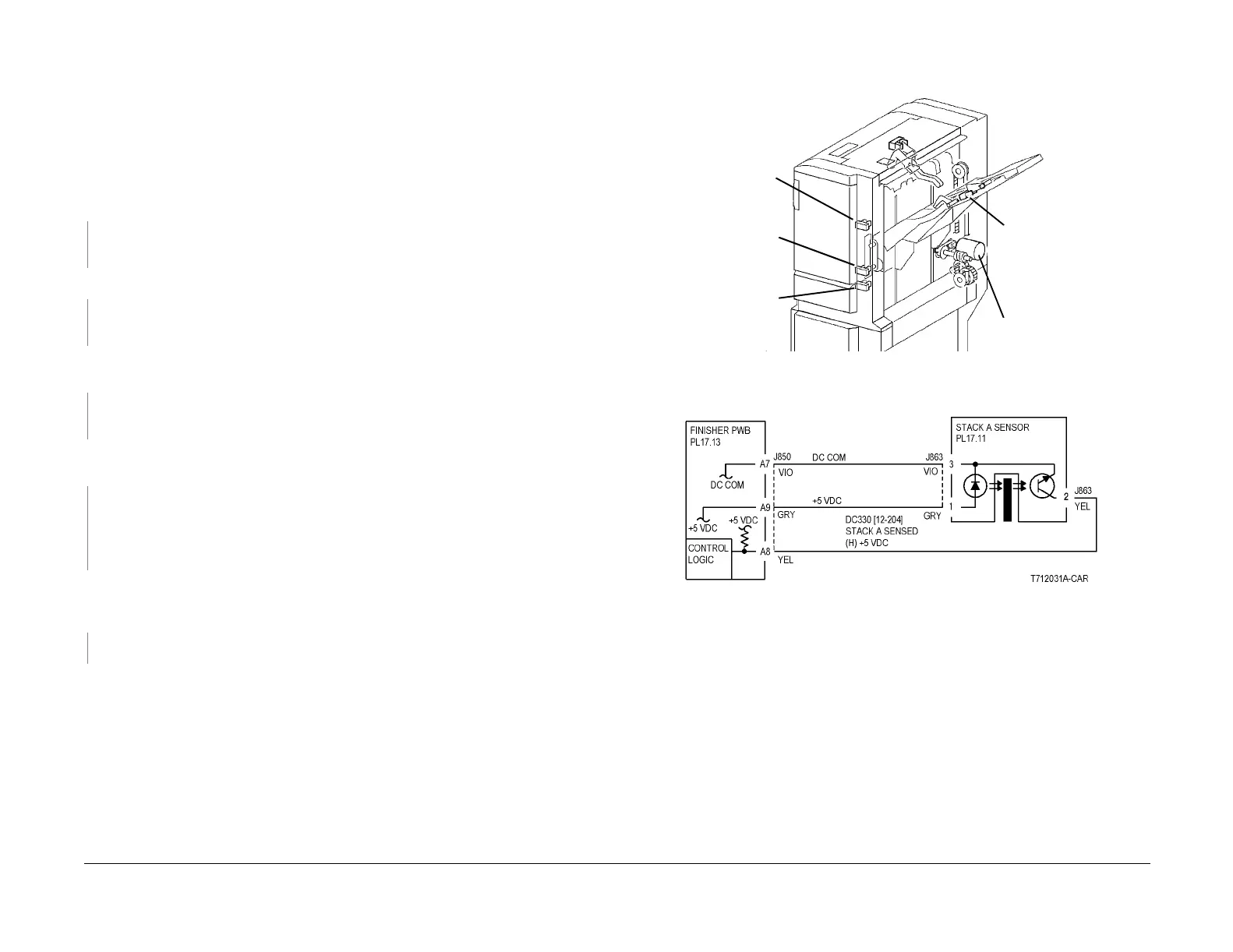

Figure 1 Component Location
Figure 2 12-961 RAP Circuit Diagram - Stack A Sensor
Upper
Limit
Sensor
Stack A
Sensor
Stack B
Sensor
Stacker
Paper
Sensor
Stacker
Motor
