Xerox DocuColor 2240 Service Manual

09/03
4-116
DC 3535/2240/1632, WC M24
REP 12.10
Initial issue
Repairs and Adjustments
3. Remove Stapler Assembly (Figure 2).

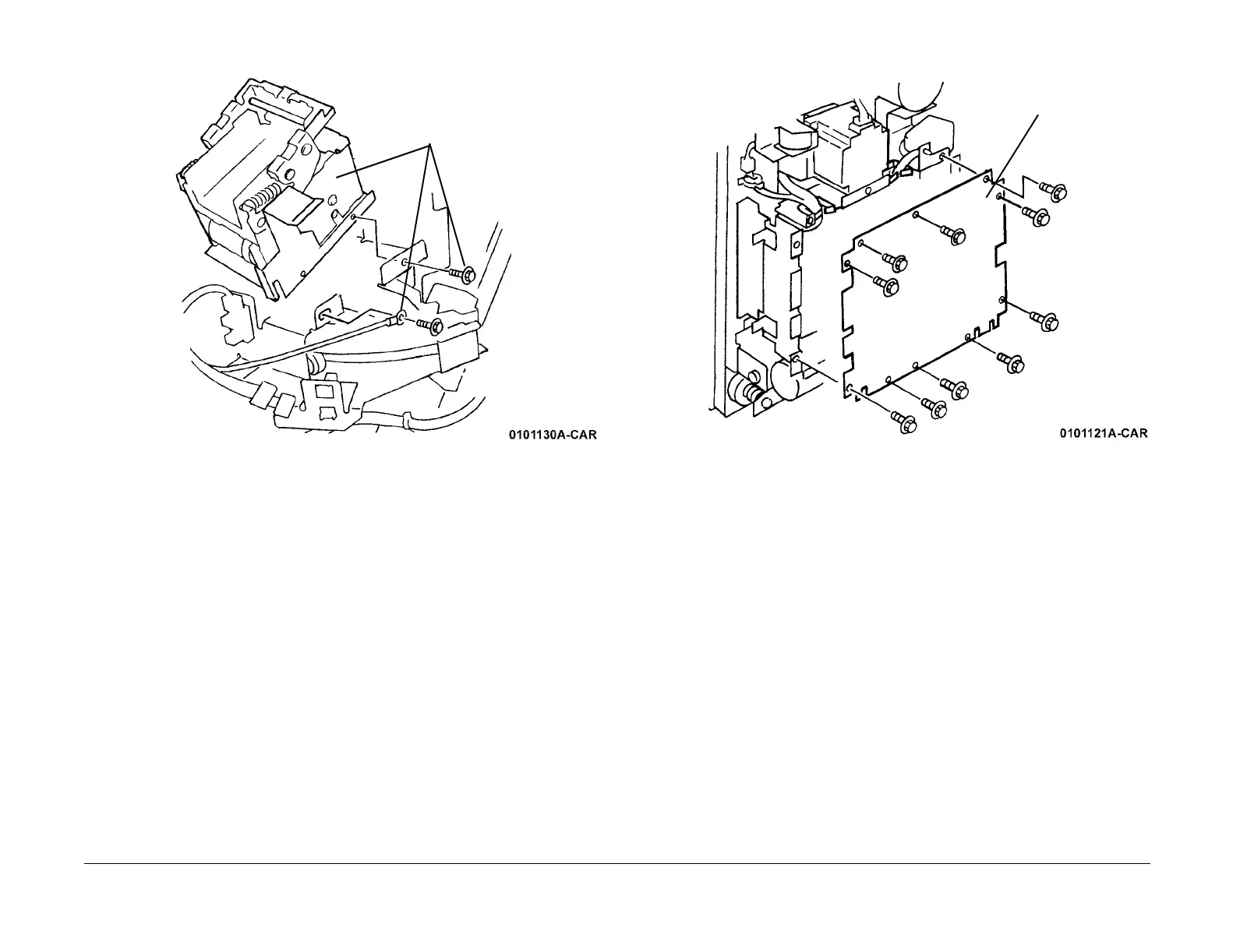

Figure 2 Removing Stapler Assembly
4. Remove the PWB Cover (Figure 3).
Figure 3 Removing the PWB Cover
Remove Screws (2),
Ground Wire (1) and
Stapler
Remove Screws (10)
and Cover
