Xerox DocuColor 2240 Service Manual

09/03
4-47
DC 3535/2240/1632, WC M24
REP 6.11
Repairs and Adjustments
Initial issue
7. Remove the Carriage Cable (Figure 3).

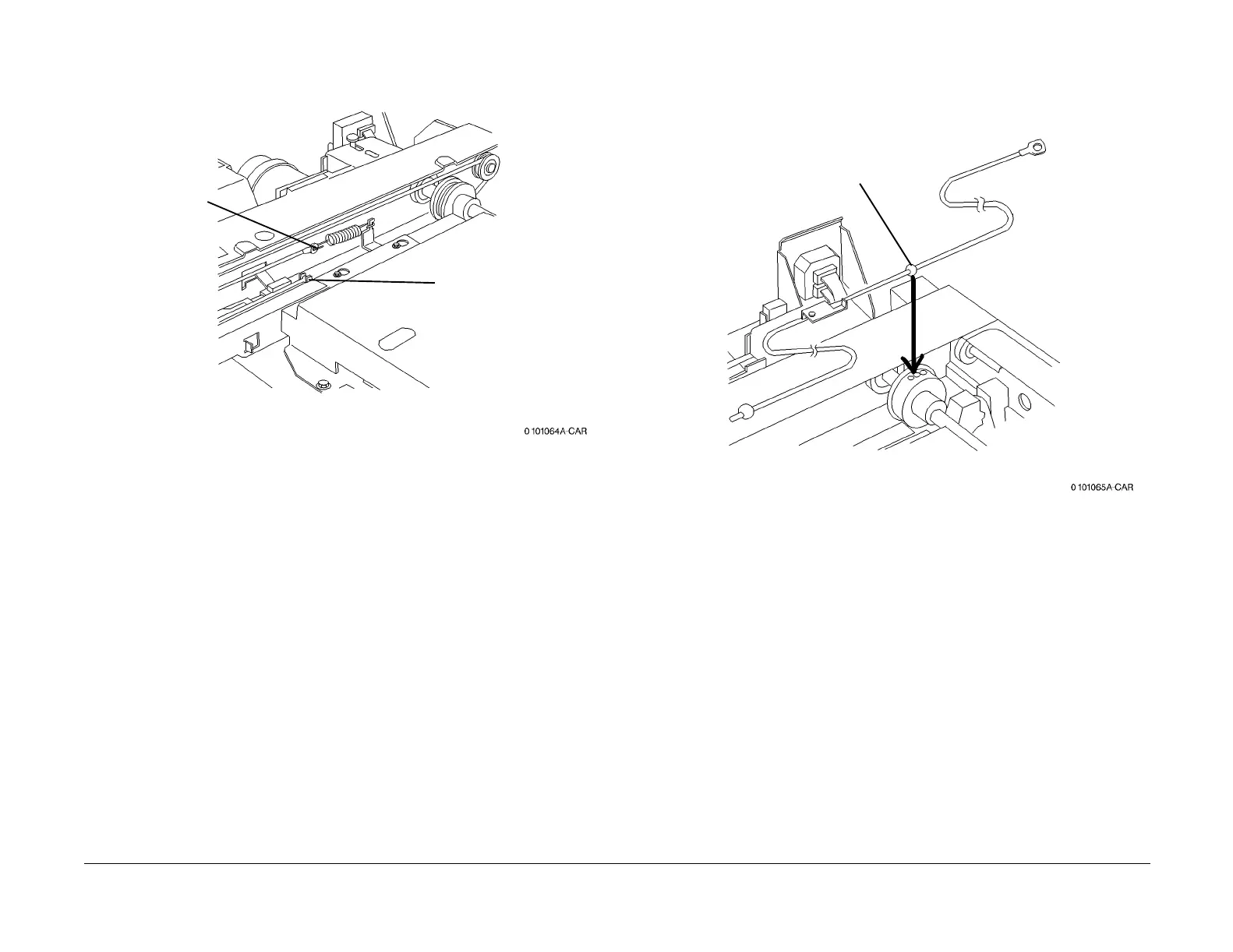

Figure 3 Removing Carriage Cable
Replacement
1. Install the Carriage Cable.
a. Orient the cable as shown and insert the middle Carriage Cable Ball into the detente
in the Capstan (Figure 4).
Figure 4 Winding Carriage Cable
1
Detach the Spring
from the cable
hook
2
Remove the ball from its
retainer and remove
cable
Cable Ball
