09/03
4-48
DC 3535/2240/1632, WC M24
REP 6.11
Initial issue
Repairs and Adjustments

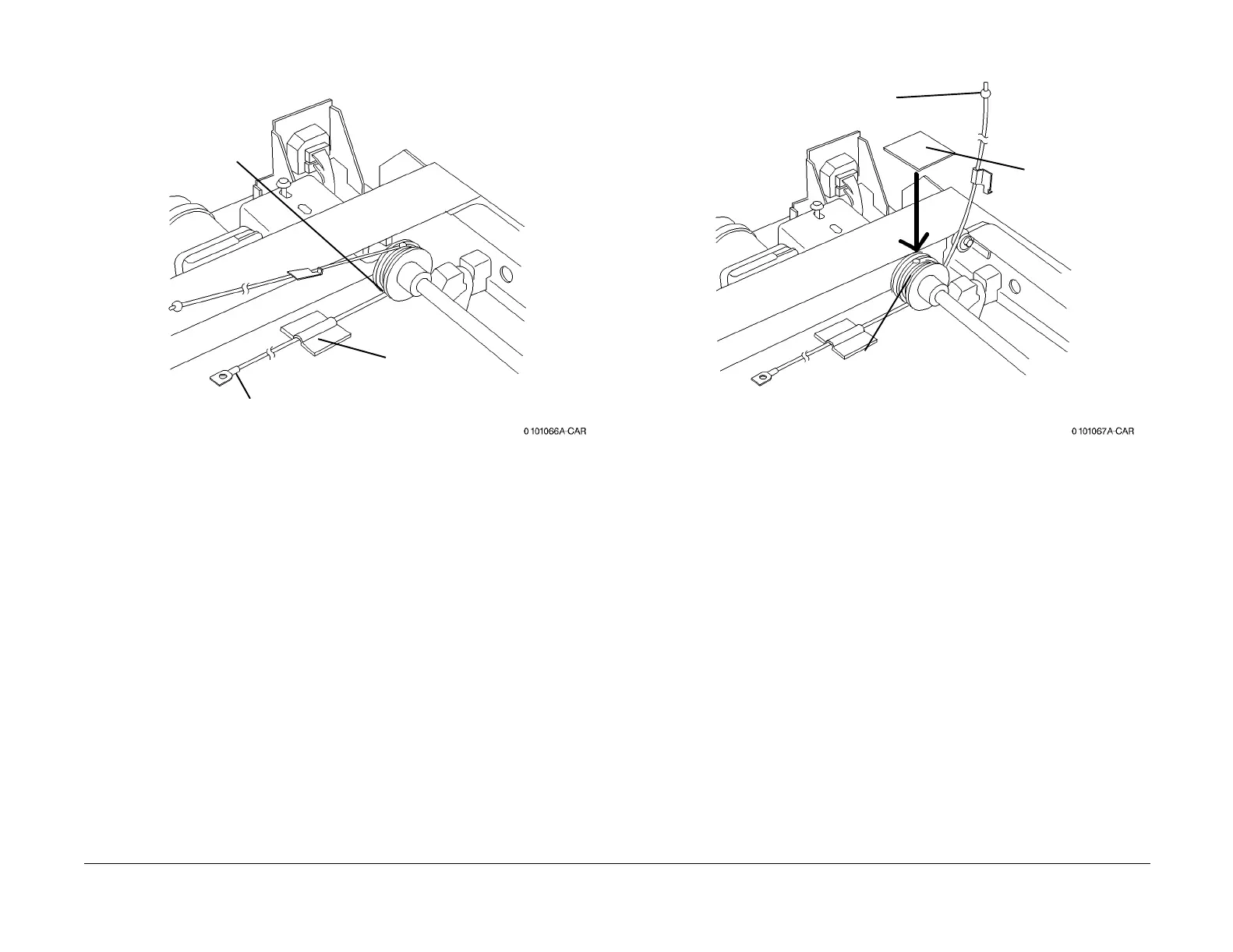

b. Prepare the spring/hook end for installation (Figure 5).
Figure 5 Preparing the Spring/Hook End
c. Prepare the ball end for installation (Figure 6).
Figure 6 Preparing the Ball End
1
Hold the Capstan Ball in
place and wind the cable so
that it feeds from the bottom
of the Capstan (2.5 turns)
2
Temporarily tape the
cable to the frame
Cable
(Spring/Hook End)
Cable
(Ball End)
1
Hold the Capstan Ball in place,
and wind the cable so that it
feeds over the top of the Cap-
stan (2.5 turns)
2
Temporarily tape
the cable to the top
of the Capstan
To Next Page
