09/03
4-96
DC 3535/2240/1632, WC M24
REP 9.22
Initial issue
Repairs and Adjustments
3. If Transfer Belt is skewed or wrinkled, perform following steps: (Figure 12).
a. Relax tension of Belt.
b. Rotate Gear in arrow direction and move Transfer Belt.

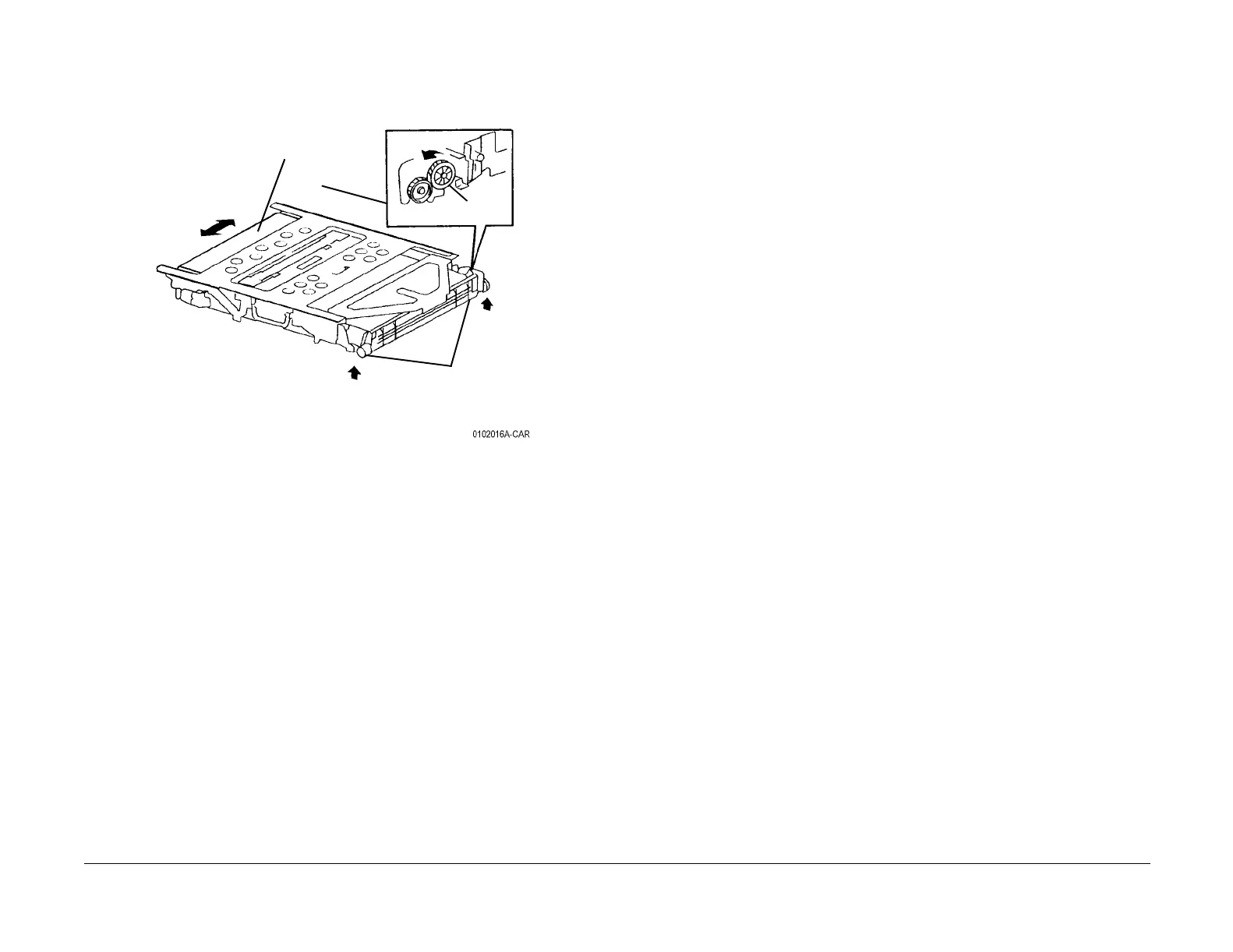

Figure 12 Re-positioning Transfer Belt
1
Relax Belt
Tension
Gear
2
Reposition
Belt while
Rotating
Gear
