Repairs and Adjustments
7. Remove Front Rail Mounting Screws (2) (Figure 6).

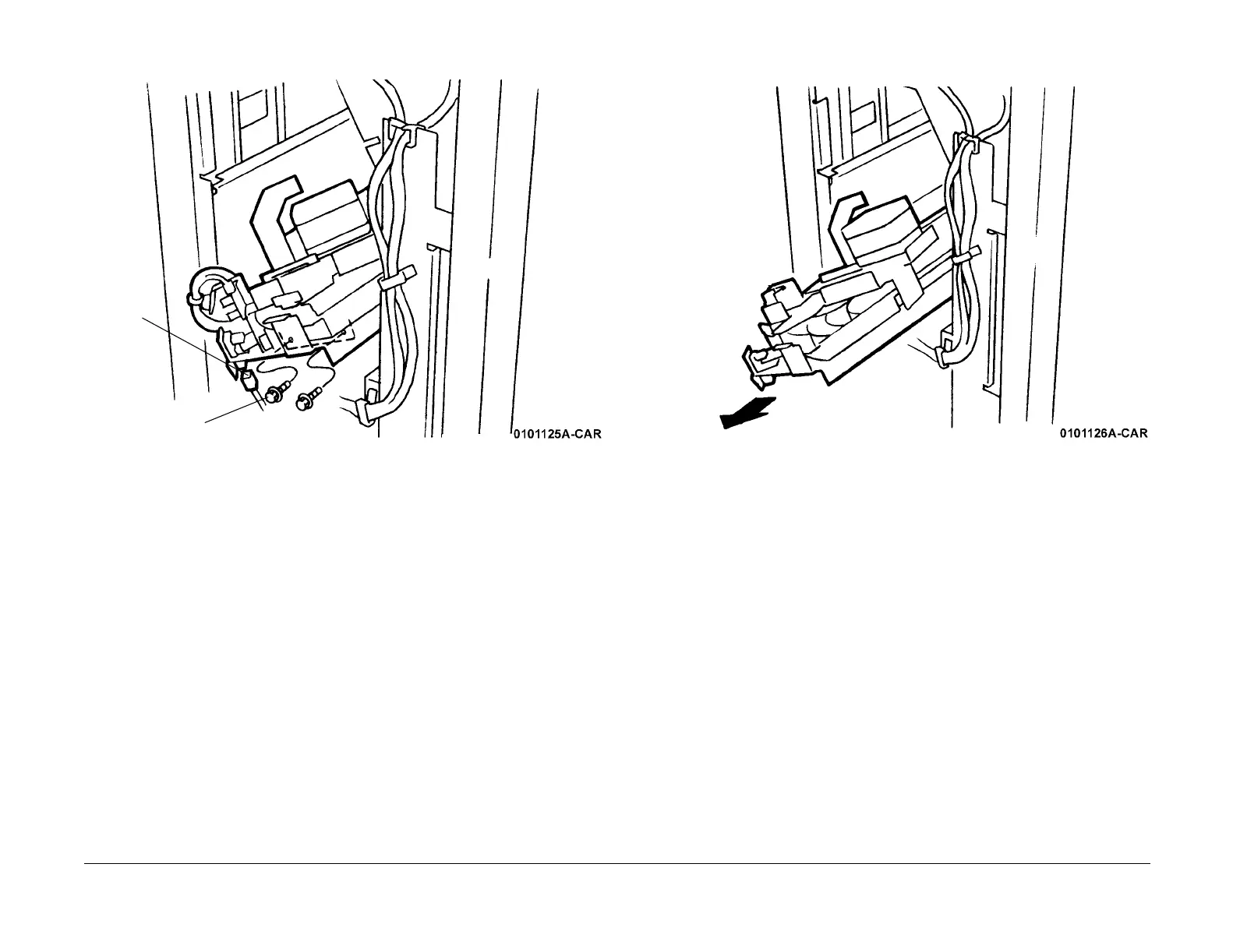

Figure 6 Removing Front Rail Mounting Screws
8. Remove the Rail Assembly (Figure 7).
Figure 7 Removing Rail Assembly
2
Remove Screws (2)
1
Disconnect
Connector
