09/03
4-80
DC 3535/2240/1632, WC M24
REP 9.8
Initial issue
Repairs and Adjustments
10. Disconnect Developer Housing Harnesses (Figure 2).
a. Open harness clip and remove harness from clip.
b. Disconnect Harness P/J’s (3).
c. Remove screw from Inner Cover and remove cover.
d. Remove Developer Housing harnesses from additional harness clips (not shown,
under Inner Cover).

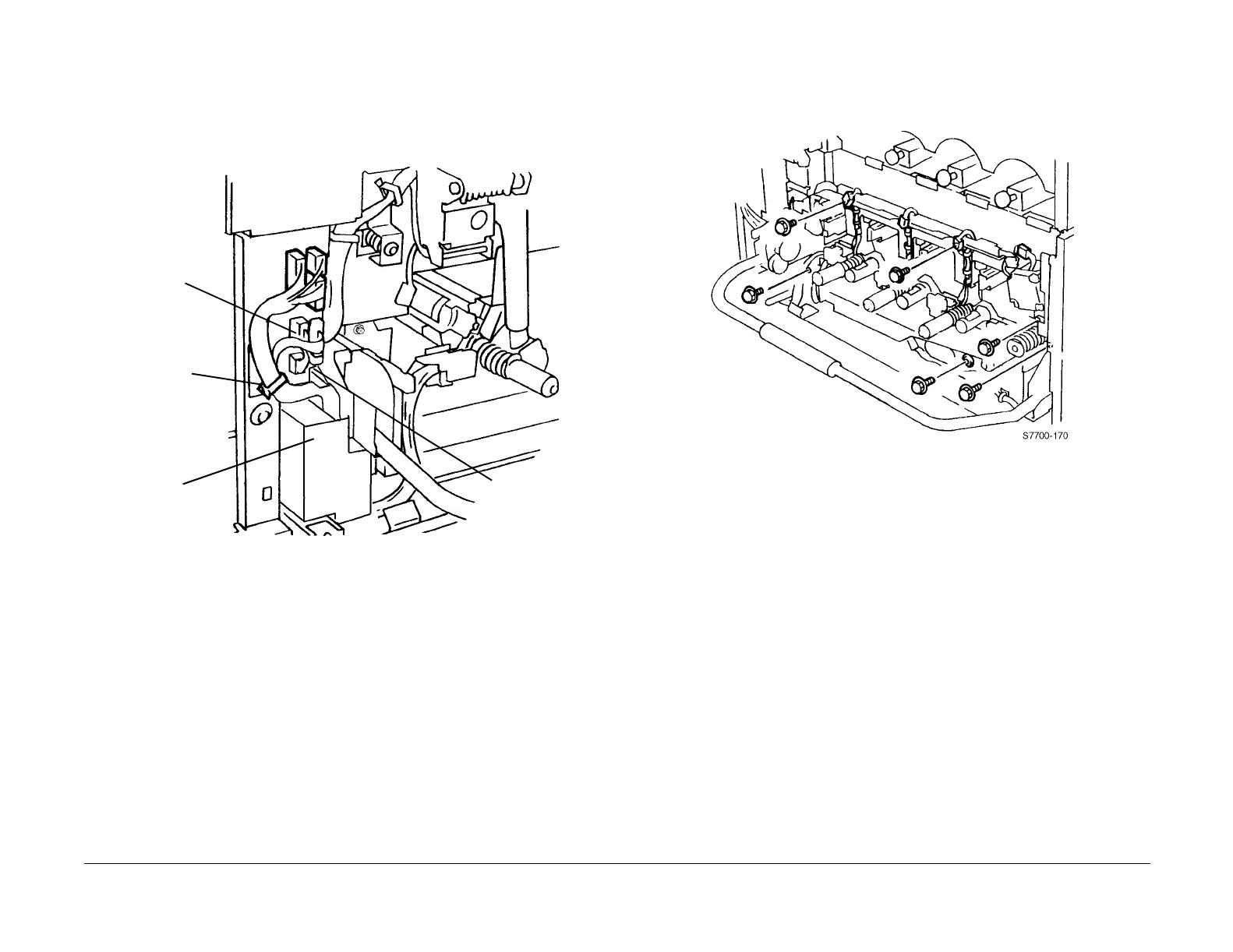

Figure 2 Disconnecting Developer Harnesses
11. Remove Plate Assembly (Figure 3).
a. Remove Screws (6).
b. Pull Plate Assembly toward front to remove it. Ensure that harnesses are not dam-
aged.
Figure 3 Removing Plate Assembly
Harness
Connectors
(3)
Harness
Clip
Screw
Inner
Cover
To Next Page
