Xerox DocuColor 2240 Service Manual

09/03
4-125
DC 3535/2240/1632, WC M24
REP 12.12
Repairs and Adjustments
Initial issue
8. Remove the Compiler Tray Assembly (Figure 7).

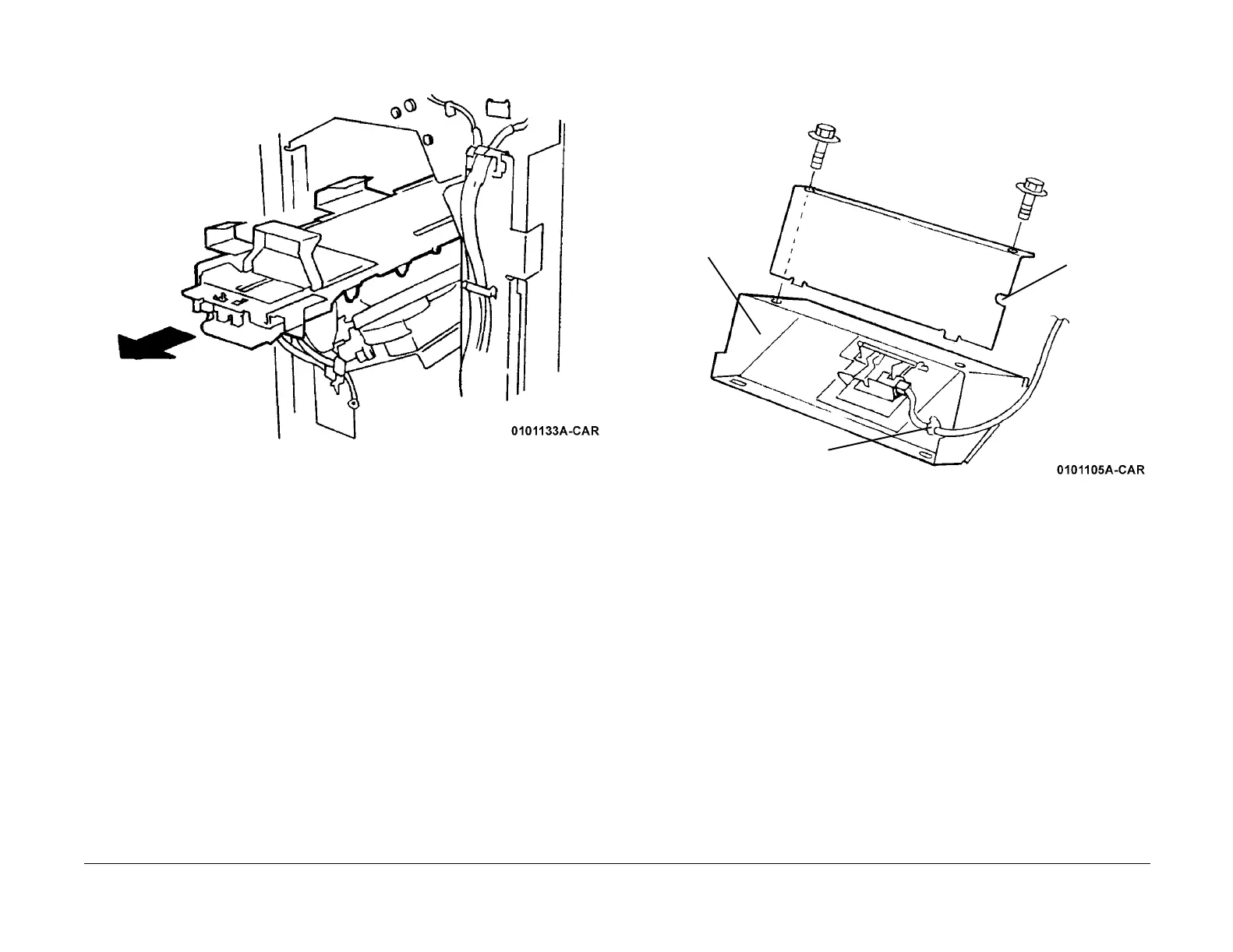

Figure 7 Removing Compiler Tray Assembly
Replacement
1. Make sure when installing the Plate, that the Cable Tie (Strain Relief) is inside the Bracket
and the cable is routed through the notch (Figure 8).
Figure 8 Routing the Cable
Notch
Cable Tie
(Strain Relief)
Bracket
