Xerox DocuColor 2240 Service Manual

09/03
4-124
DC 3535/2240/1632, WC M24
REP 12.12
Initial issue
Repairs and Adjustments
6. Release Compiler Tray Harness (Figure 5).

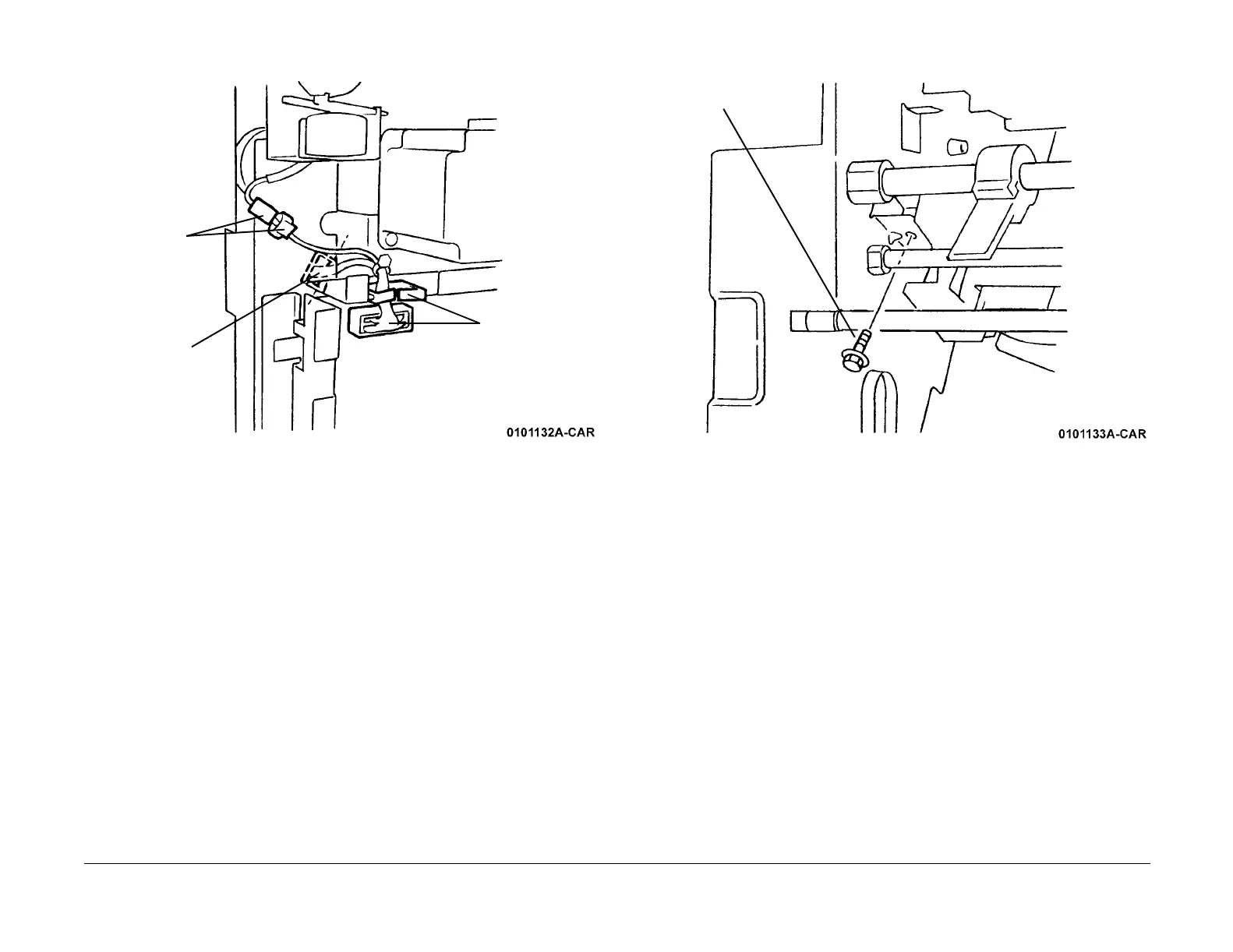

Figure 5 Releasing Compiler Tray Harness
7. Remove the Screw on the Inboard side (Figure 6).
Figure 6 Removing Screw on Inboard Side
1
Disconnect and
remove from
Guide
2
Disconnect from
Finisher PWB and
remove from Guide
3
Move harnesses
back through
frame
Screw
