Repairs and Adjustments
Initial issue

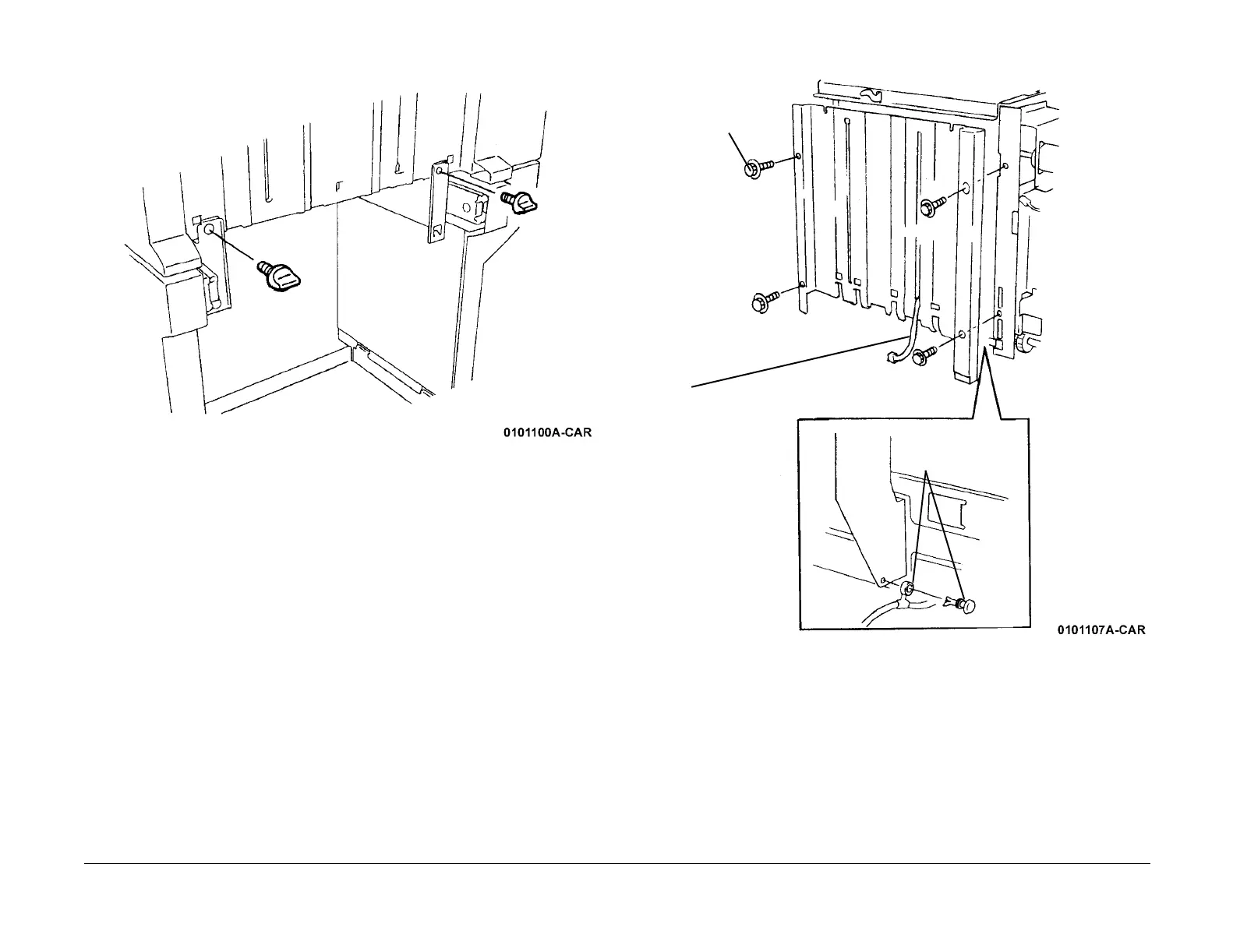

4. Remove Thumbscrews (2) (Figure 3).
Figure 3 Removing Thumbscrews (2)
5. Remove the Tray Guide (Figure 4).
Figure 4 Removing Tray Guide
1
Remove
Screws (4)
2
Remove Fastener
and Cable Clamp
3
Remove Cable
from Tray Guide
and remove Tray
Guide
