Xerox DocuColor 2240

09/03
2-71
DC 3535/2240/1632, WC M24
4-363
Status Indicator RAPs
Initial issue
• If no problems are found, replace the MCU PWB (PL 13.1).
• If the problem persists, replace the I/F PWB (PL 9.1).

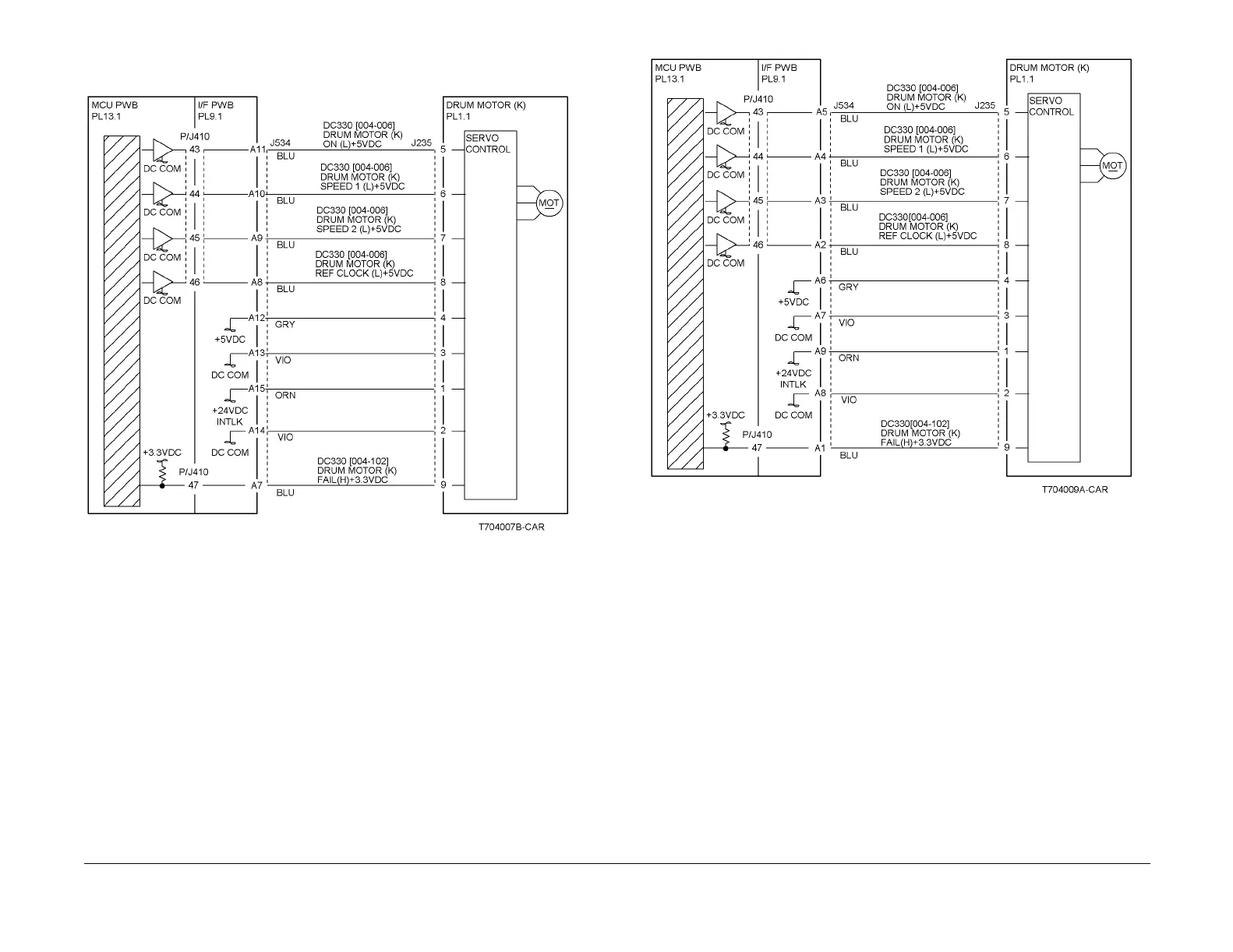

Figure 1 4-363 RAP Circuit Diagram - Drum Motor (K) (DC2240/1632)
Figure 2 4-363 RAP Circuit Diagram - Drum Motor (K) (DC3535)
