09/03
7-49
DC 3535/2240/1632, WC M24
+3.3 VDC / +3.3VDC RTN Wirenets
Wiring Data
Initial issue
+3.3 VDC / +3.3VDC RTN Wirenets

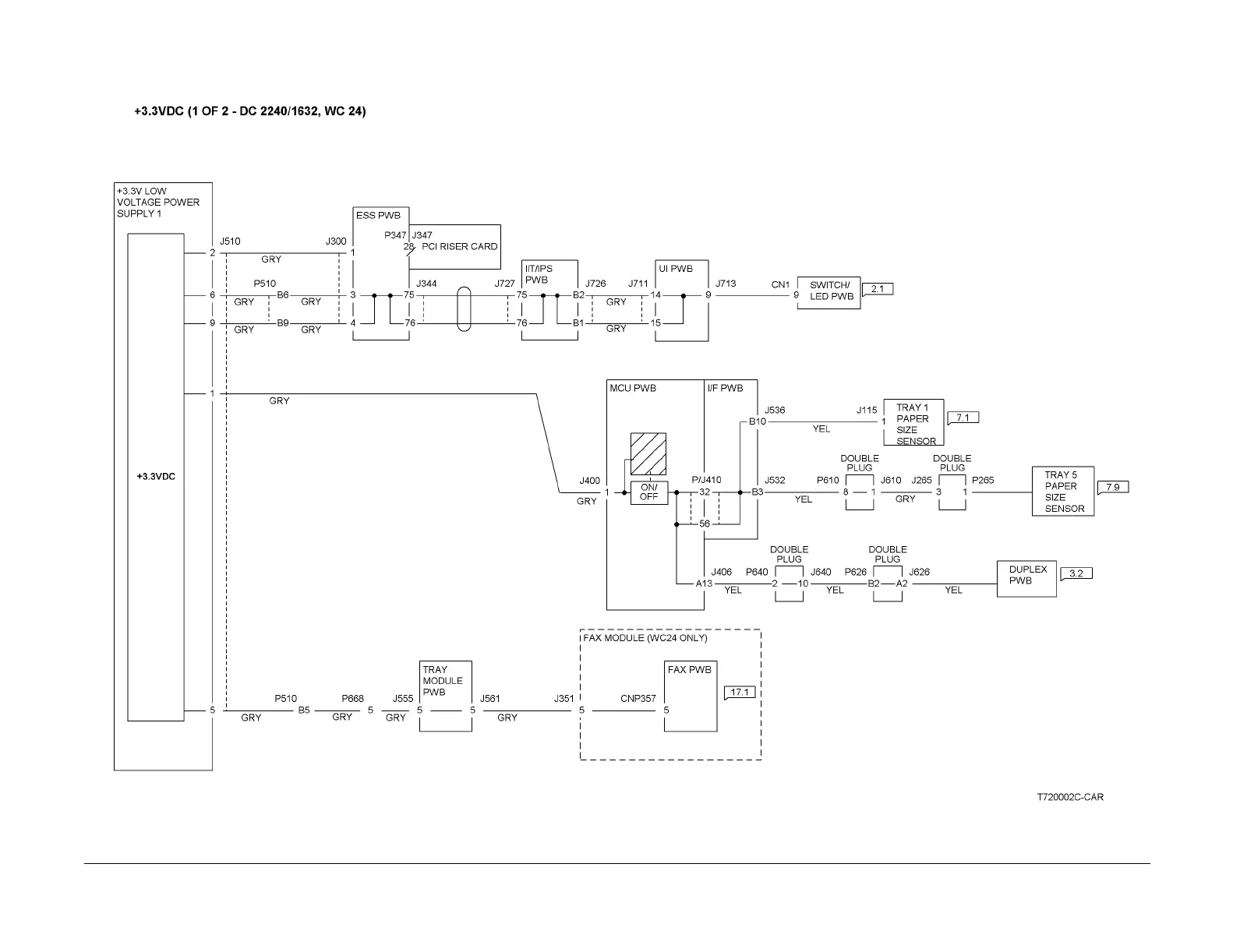

Figure 1 +3.3VDC Wirenet (1 of 2 -DC 2240/1632)
