09/03
7-52
DC 3535/2240/1632, WC M24
+3.3 VDC / +3.3VDC RTN Wirenets
Initial issue
Wiring Data

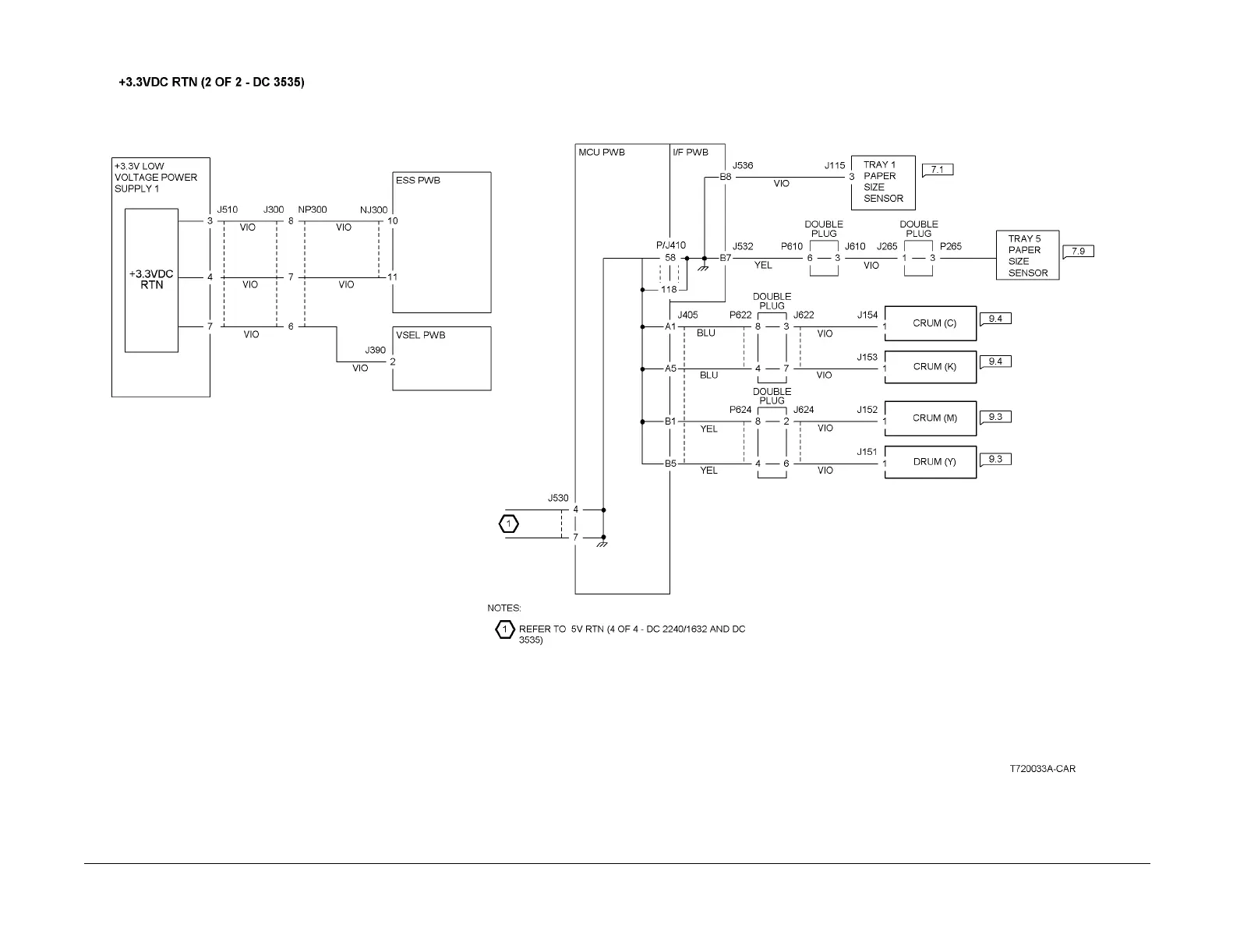

Figure 4 +3.3V RTN Wirenet (2 of 2 -DC 3535)
