09/03
2-116
DC 3535/2240/1632, WC M24
7-104
Initial issue
Status Indicator RAPs
YN
Replace the Tray Module PWB (PL 15.9).
Replace the Takeaway Motor 1 (PL 15.9).
Check the drives of the Takeaway Motor 1 (refer to PL 15.9)
Press Stop.
• Ensure that the Chutes (PL 2.3, PL 15.10) are properly seated and not damaged.
• Check the Pinch Rolls (PL 2.3, PL 15.10) for damage or contamination.
• Ensure that the connectors shown in the circuit diagrams (Figure 1, Figure 4, Figure 5)
are securely connected and that the wires are not damaged.
• If the problem persists, replace the Tray Module PWB (PL 15.9).

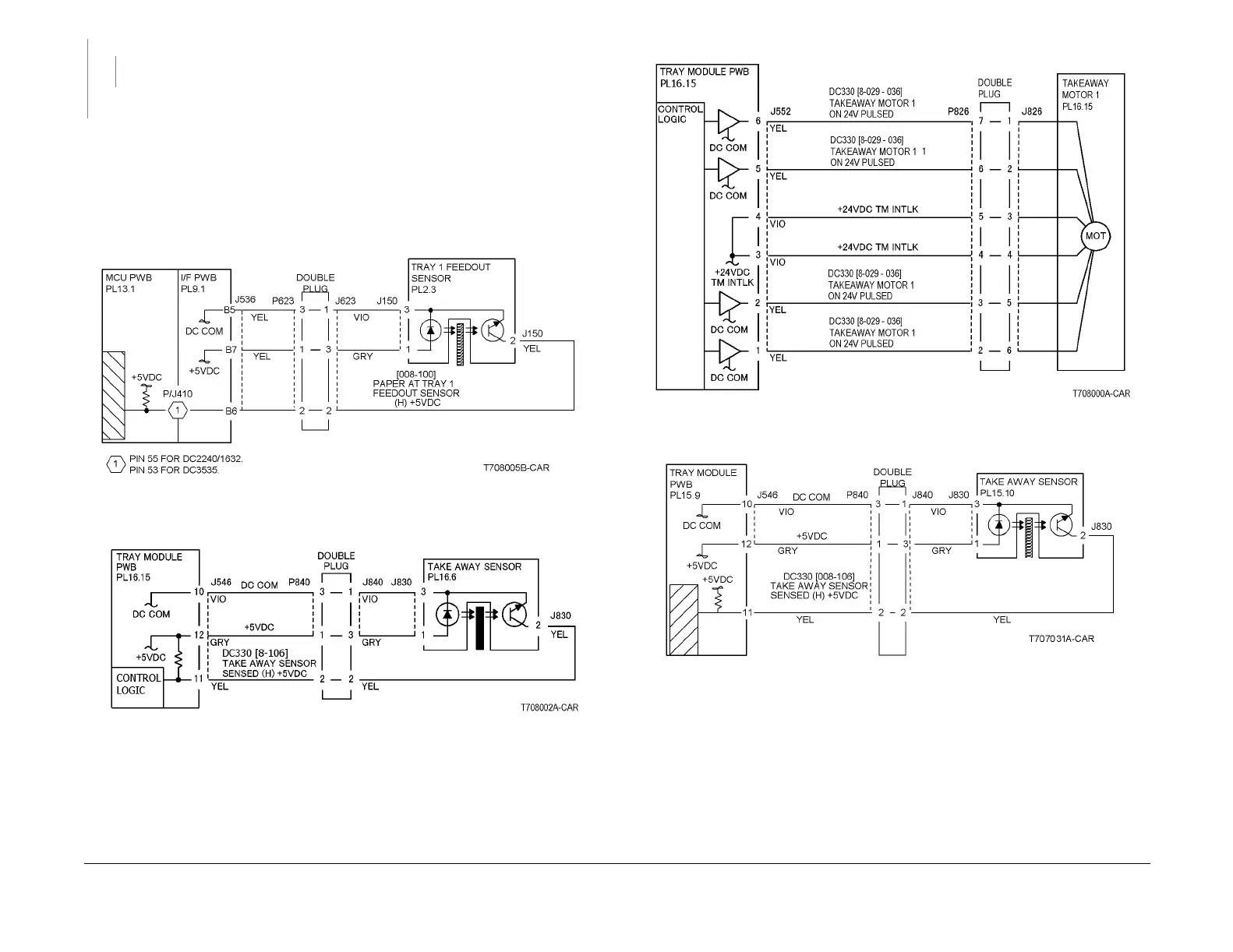

Figure 1 7-104 RAP Circuit Diagram - Tray 1 Feed Out Sensor
Figure 2 7-104 RAP Circuit Diagram - Takeaway Sensor TTM
Figure 3 7-104 RAP Circuit Diagram - Takeaway Motor 1 TTM
Figure 4 7-104 RAP Circuit Diagram - Takeaway Sensor 3TM
D
To Next Page
