09/03
2-182
DC 3535/2240/1632, WC M24
9-348
Initial issue
Status Indicator RAPs

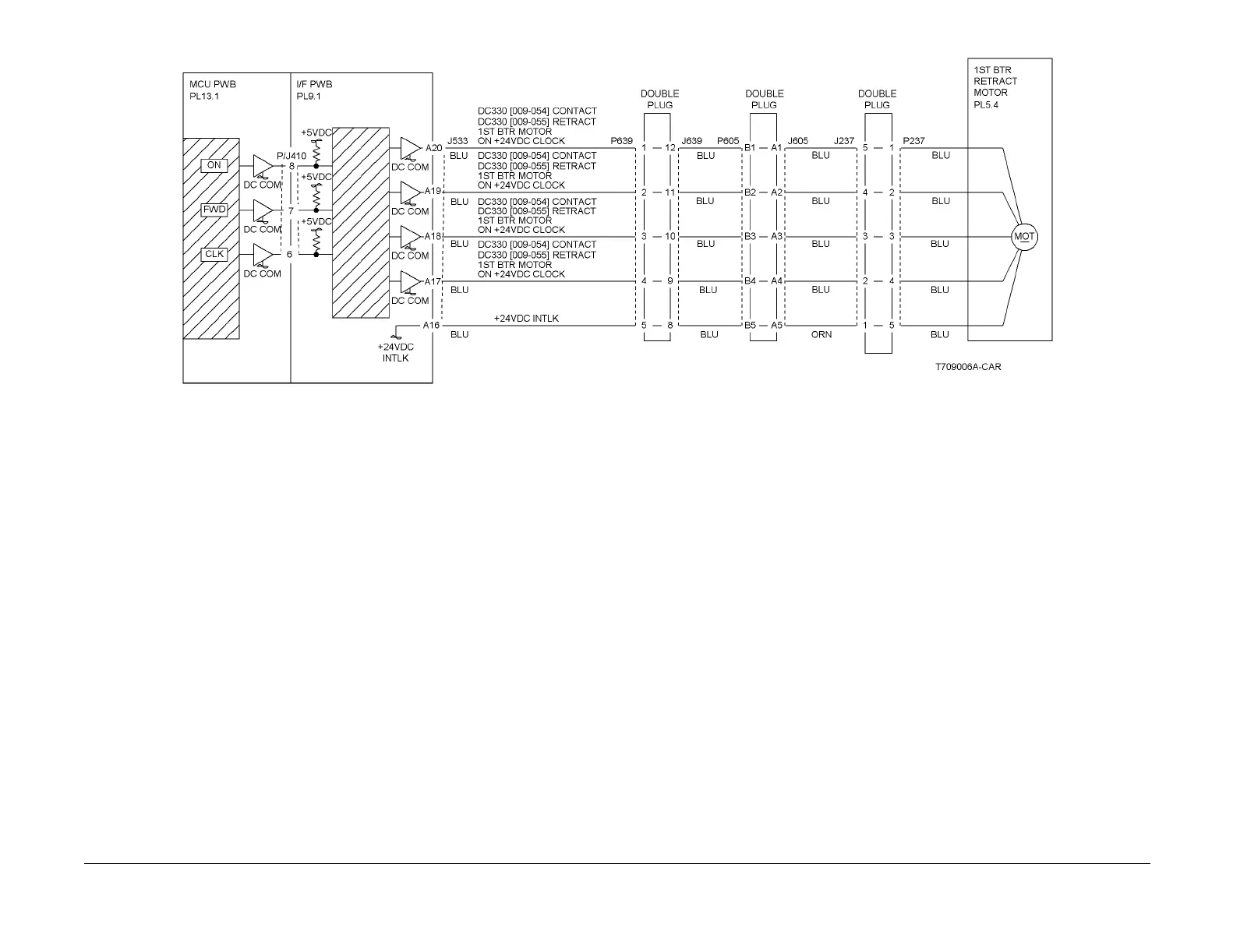

Figure 2 9-348 Rap Circuit Diagram - 1ST BTR Retract Motor
