09/03
2-203
DC 3535/2240/1632, WC M24
9-654
Status Indicator RAPs
Initial issue

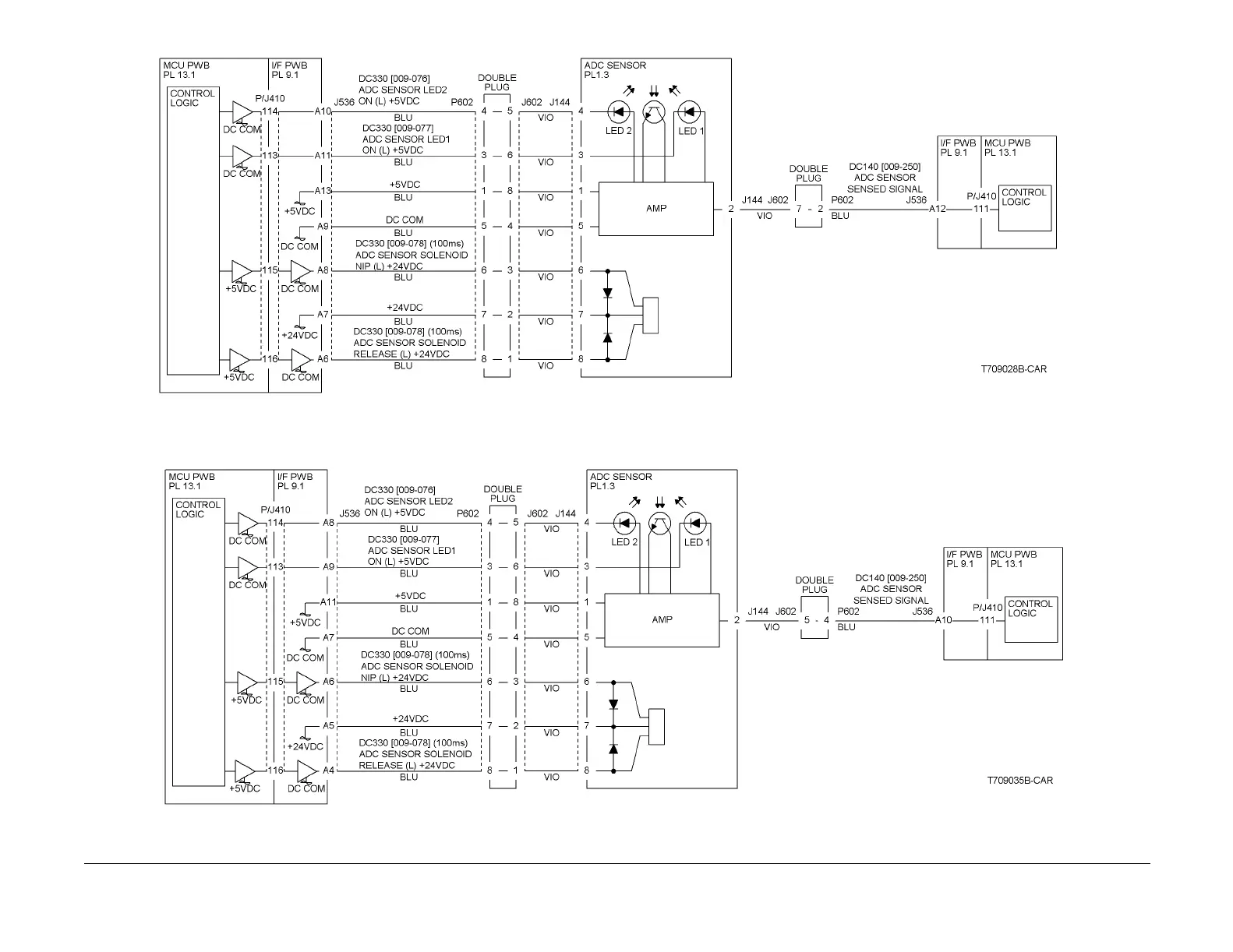

Figure 1 9-654 Rap Circuit Diagram - DC2240/1632 ADC Sensor
Figure 2 9-654 Rap Circuit Diagram - DC3535 ADC Sensor
