Xerox DocuColor 2240 Service Manual

09/03
4-36
DC 3535/2240/1632, WC M24
REP 5.15
Initial issue
Repairs and Adjustments

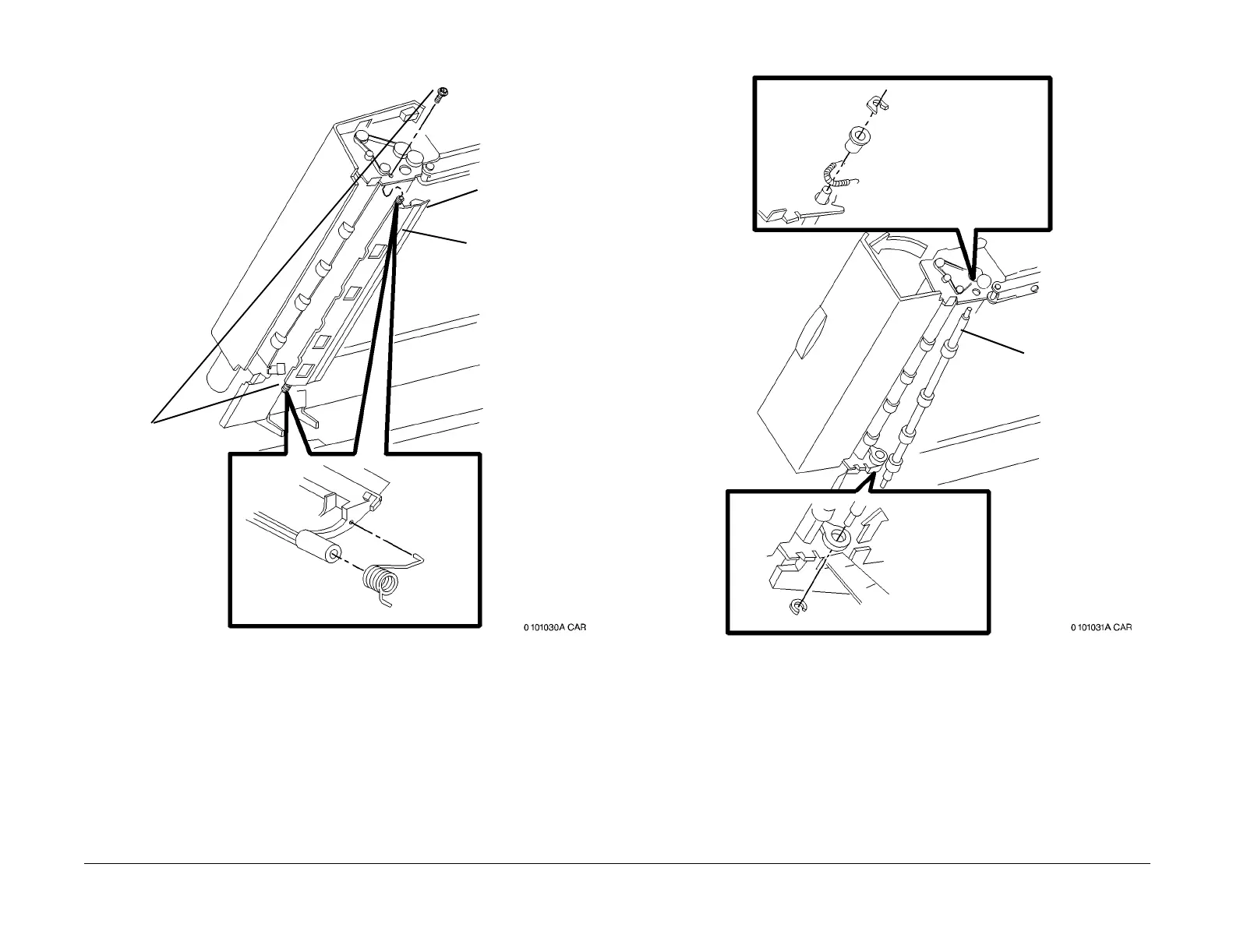

3. Remove Gate (Figure 2).
Figure 2 Removing Gate
4. Remove Registration Pinch Roll (Figure 3).
Figure 3 Removing Registration Pinch Roll
1
Observe position
of Springs
2
Remove
Screws (2)
3
Remove Gate while
containing Springs
CAUTION
Plastic edge on
Gate is fragile
2
Remove
C Clip
and
longer
Spring
1
Remove C
Clip, shorter
Spring, and
Bearing
3
Remove Regis-
tration Pinch Roll
