09/03
2-50
DC 3535/2240/1632, WC M24
3-953, 3-954
Initial issue
Status Indicator RAPs

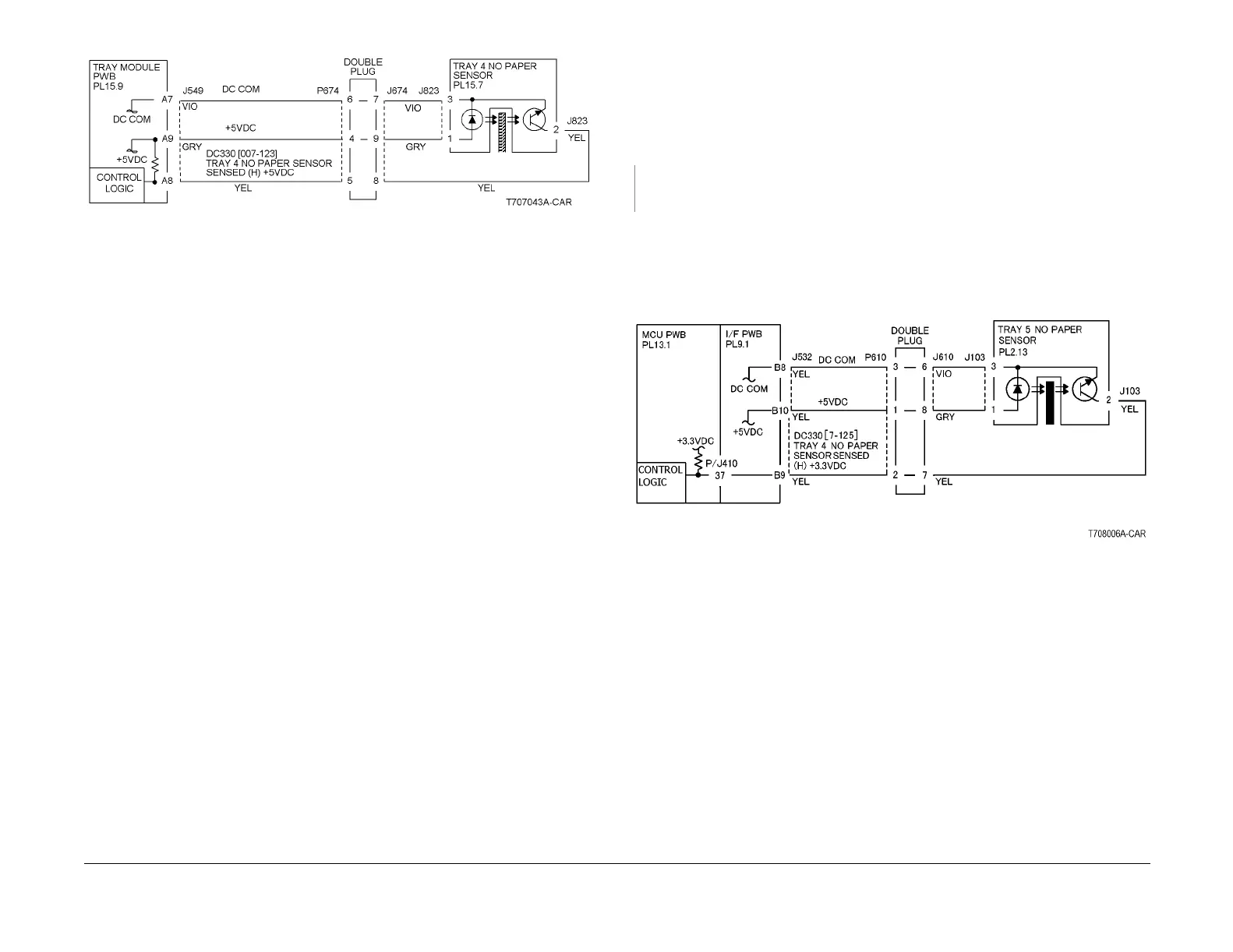

Figure 2 9-353 RAP Circuit Diagram - Tray 4 No Paper Sensor (3TM)
3-954 Tray 5 Empty
Paper is not detected in Tray 5.
Procedure
Enter dC330 [007-125] and press Start. Actuate the Tray 5 No Paper Sensor. The display
changes.
YN
Press Stop. Check the circuit of the Tray 5 No Paper Sensor (Figure 1). Refer to the OF
99-2 RAP for troubleshooting procedure.
Press Stop.
• Ensure that the connectors shown in the circuit diagram (Figure 1) are securely con-
nected and that the wires are not damaged.
• Replace the Tray 5 No Paper Sensor (PL 2.13).
• If the problem persists, replace the MCU PWB (PL 13.1)
Figure 1 3-954 RAP Circuit Diagram - Tray 5 No Paper Sensor
To Next Page
