09/03
4-90
DC 3535/2240/1632, WC M24
REP 9.21
Initial issue
Repairs and Adjustments

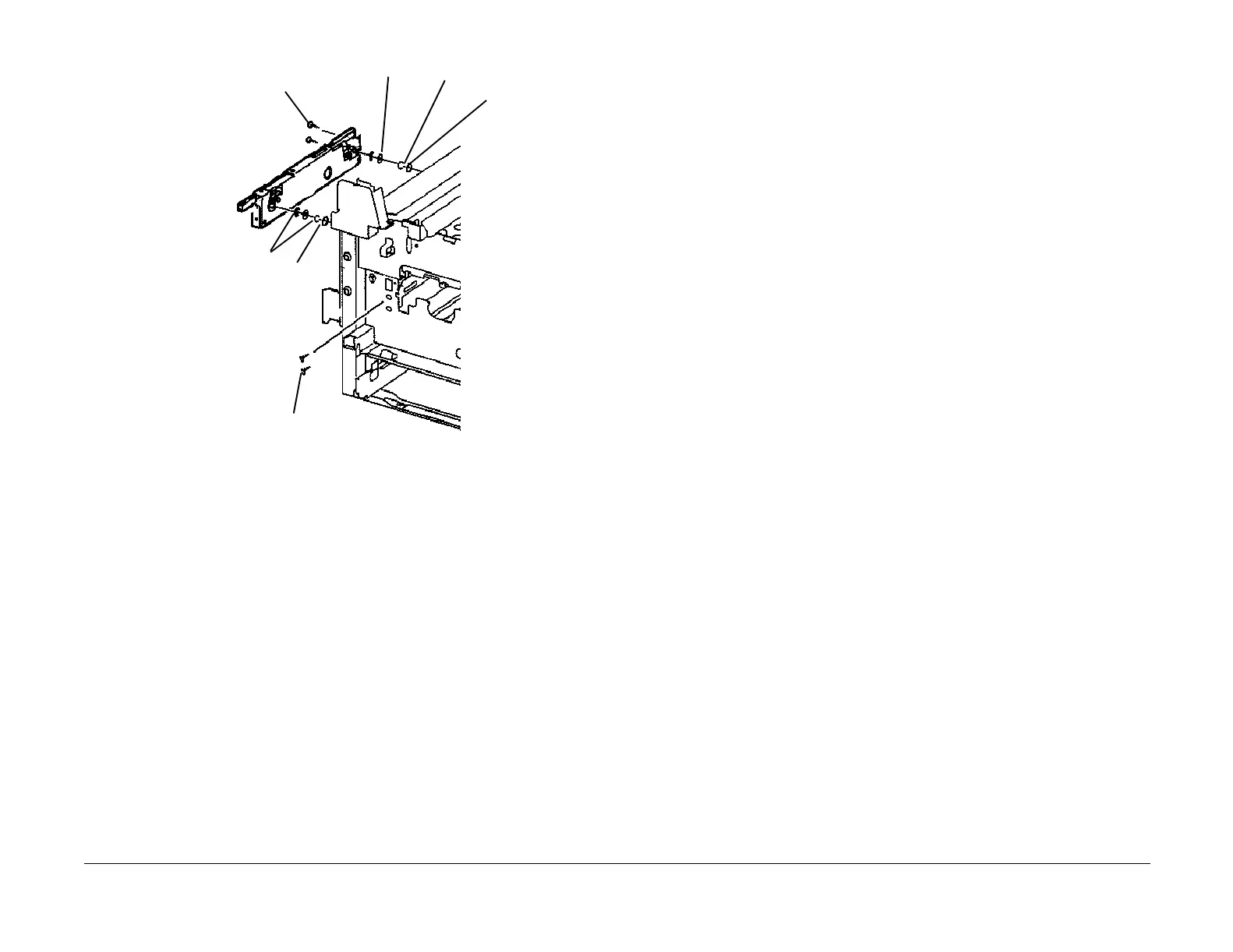

Figure 1 Removing Left Lift Assembly
Replacement
1. Install Lift Assembly.
a. Position Lift Assembly in frame.
b. Raise or lower xerographic frame as required and push in or pull out Lift Assembly
actuator as required to engage lift bearings with slots in xerographic frame.
c. Install front top screw, then front bottom screw, then rear screws (2).
d. Install washers (2) and e-rings (2).
2. Assemble remaining machine components.
E-Ring
E-Ring
Washer
Washer
Screws (2)
Screws (2)
Bearing
To Next Page
