DC 3535/2240/1632, WC M24
ADJ 5.4
Initial issue
Repairs and Adjustments
3. Adjust Document Transport Height (Figure 3).

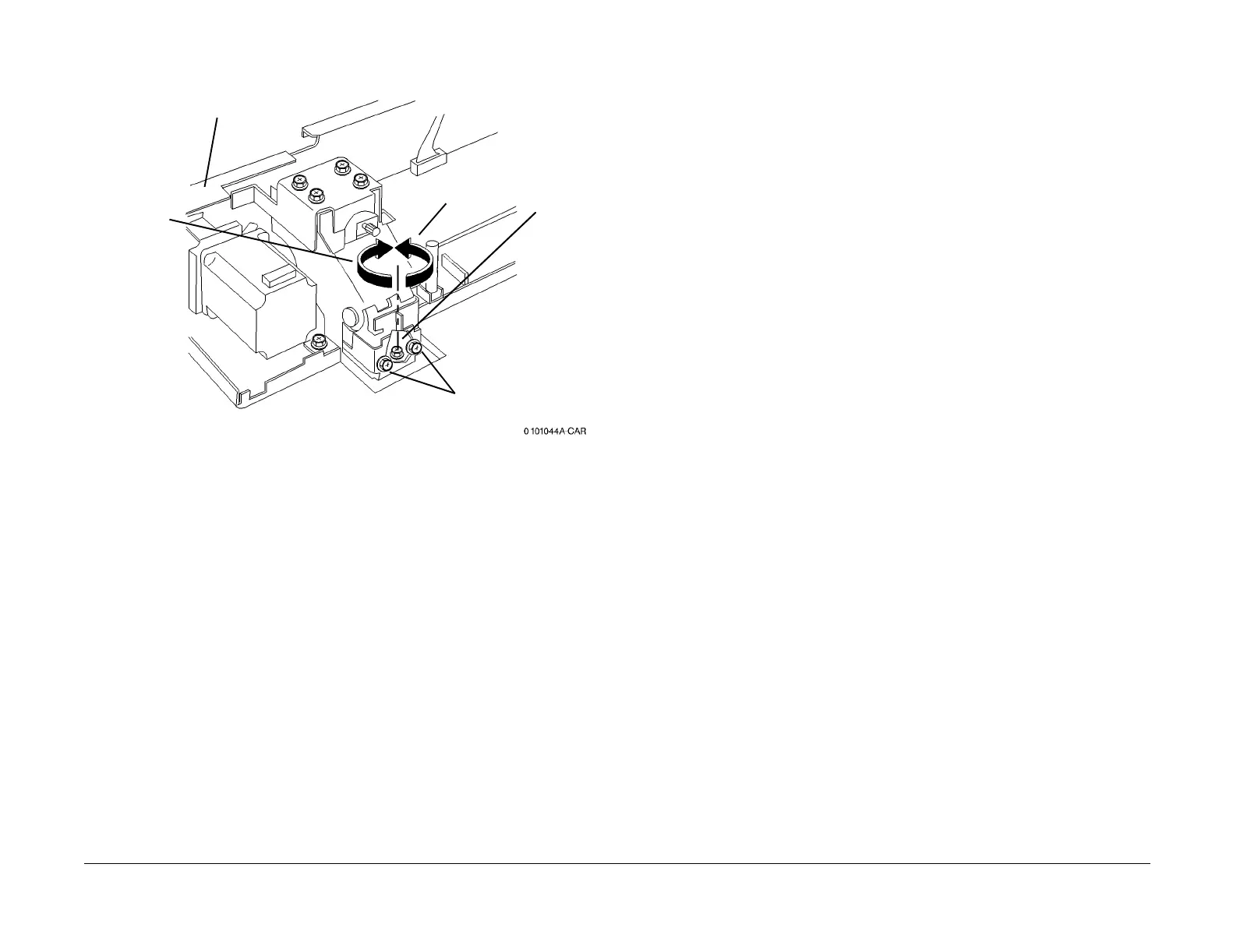

Figure 3 Adjusting Document Transport Height
4. Repeat check.
Lower Document
Transport Frame
Raise Docu-
ment Trans-
port Frame
2
Adjust
Screw
1
Lower DADF
3
Raise
DADF
4
Tighten
Screws
