09/03
4-178
DC 3535/2240/1632, WC M24
ADJ 9.12
Initial issue
Repairs and Adjustments
4. Check vertical magnification (Figure 2):
Measure the 300mm line running from near LE1 to the trail edge of the 1.8lp ladder. If the
dimension is not 300mm ±1.5mm, perform the Adjustment.

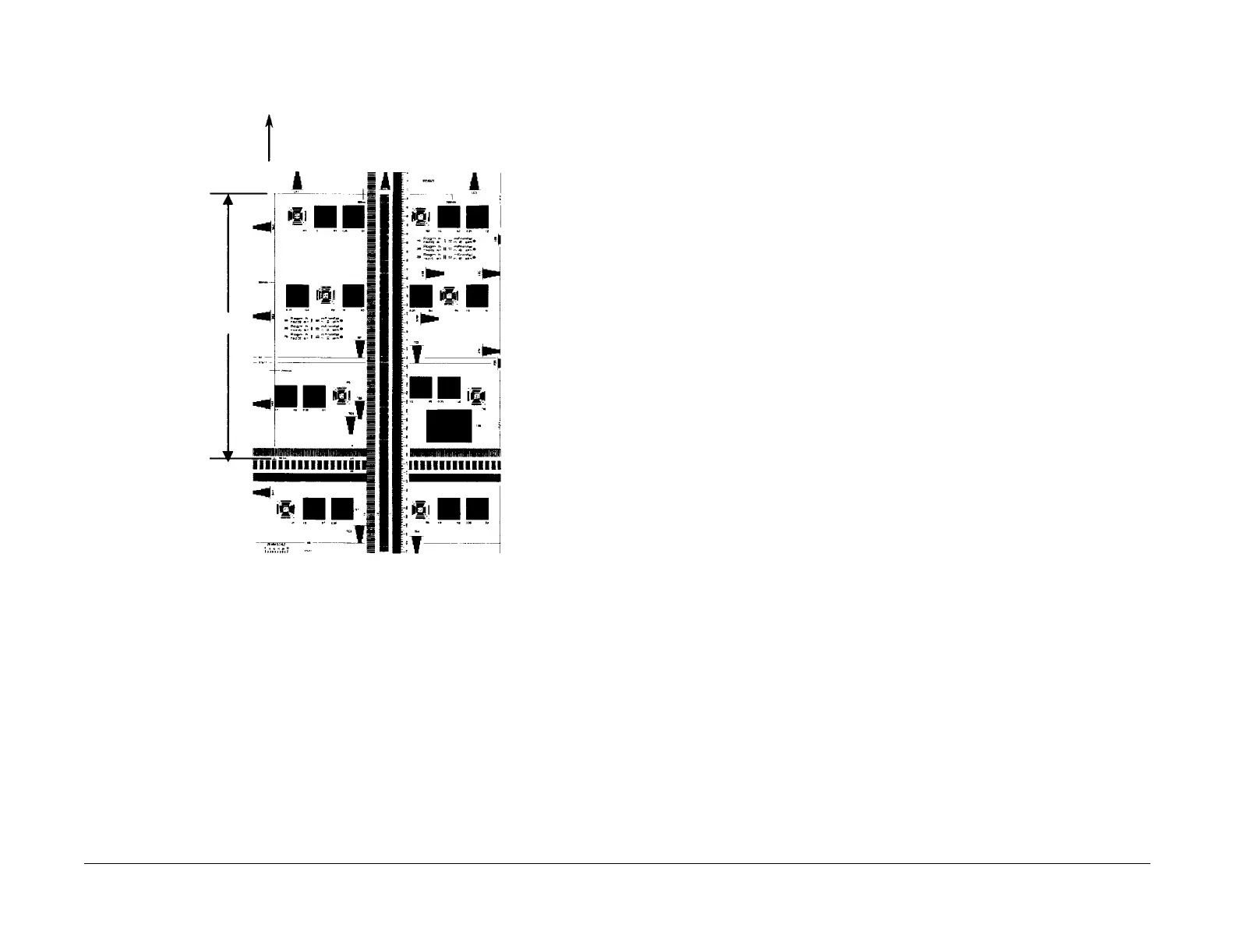

Figure 2 Checking Vertical Magnification
Adjustment
1. Horizontal Magnification Adjustment
• Enter dC131 [715-234]
• Each bit represents 0.1% change:
Increase the value to lengthen the line
Decrease the value to shorten the line
2. Vertical Magnification Adjustment
• Enter dC131 [715-302]
• Each bit represents 0.1% change:
Increase the value to lengthen the line
Decrease the value to shorten the line
Lead Edge
300mm +/-
1.5mm
To Next Page
