Fax Kit Installation
Installation
Initial issue

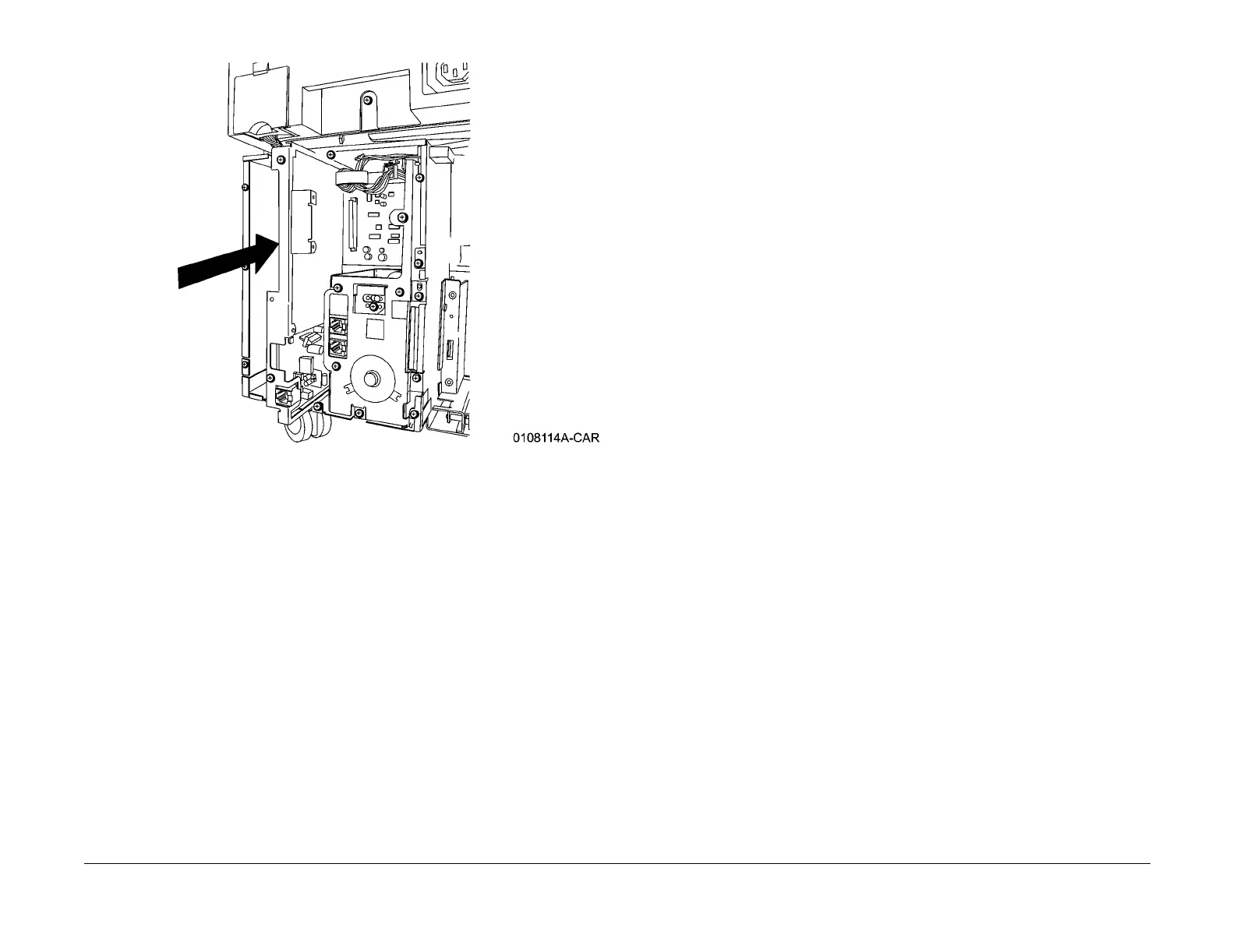

Figure 16 Installing the G3 PWB (Optional Line)
6. Reinstall the Fax Module Cover and the Rear Cover (Tray Module).
Align the G3
PWB connec-
tor and Add
Port PWB con-
nector and
slide the G3
PWB in place
