Xerox DocuColor 2240 Service Manual

09/03
9-12
DC 3535/2240/1632, WC M24
Fax Kit Installation
Initial issue
Installation
G3 Option Kit Installation
1. Switch off the machine and disconnect the power cord.
2. Remove the Rear Cover (Tray Module) (REP 14.9).
3. Remove the Fax Module Cover (Figure 14).

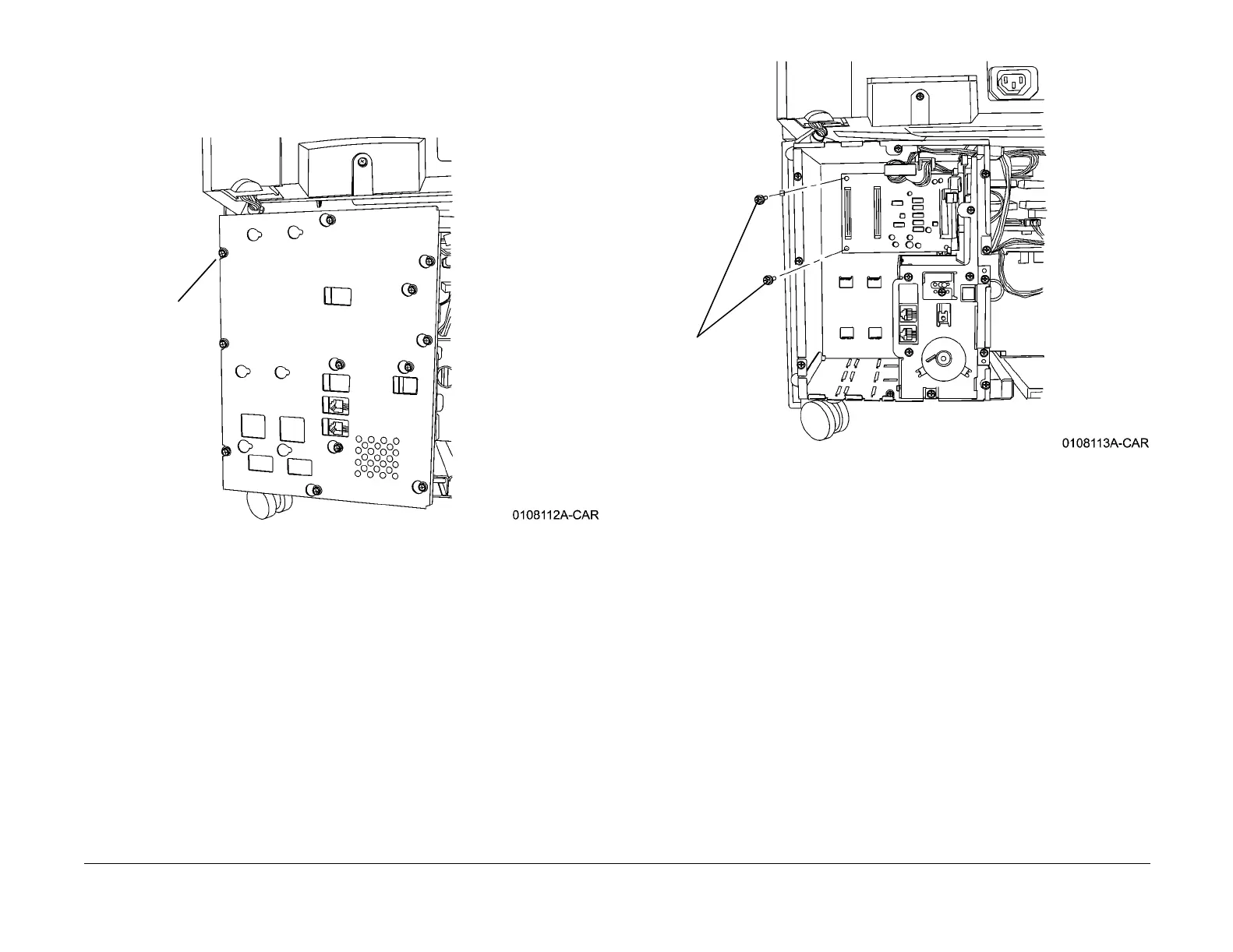

Figure 14 Removing the Fax Module Cover
4. Install the Add Port PWB (Figure 15).
Figure 15 Installing the Add Port PWB
5. Install the G3 PWB (Figure 16).
1
Loosen
screws (12)
2
Slide the Fax
Module Cover
to the right to
remove
1
Align the Add
Port connector
and Fax PWB
connector and
press firmly
2
Fasten the Add
Port PWB with
screws (2)
