Xerox DocuColor 2240

09/03
2-121
DC 3535/2240/1632, WC M24
7-110
Status Indicator RAPs
Initial issue

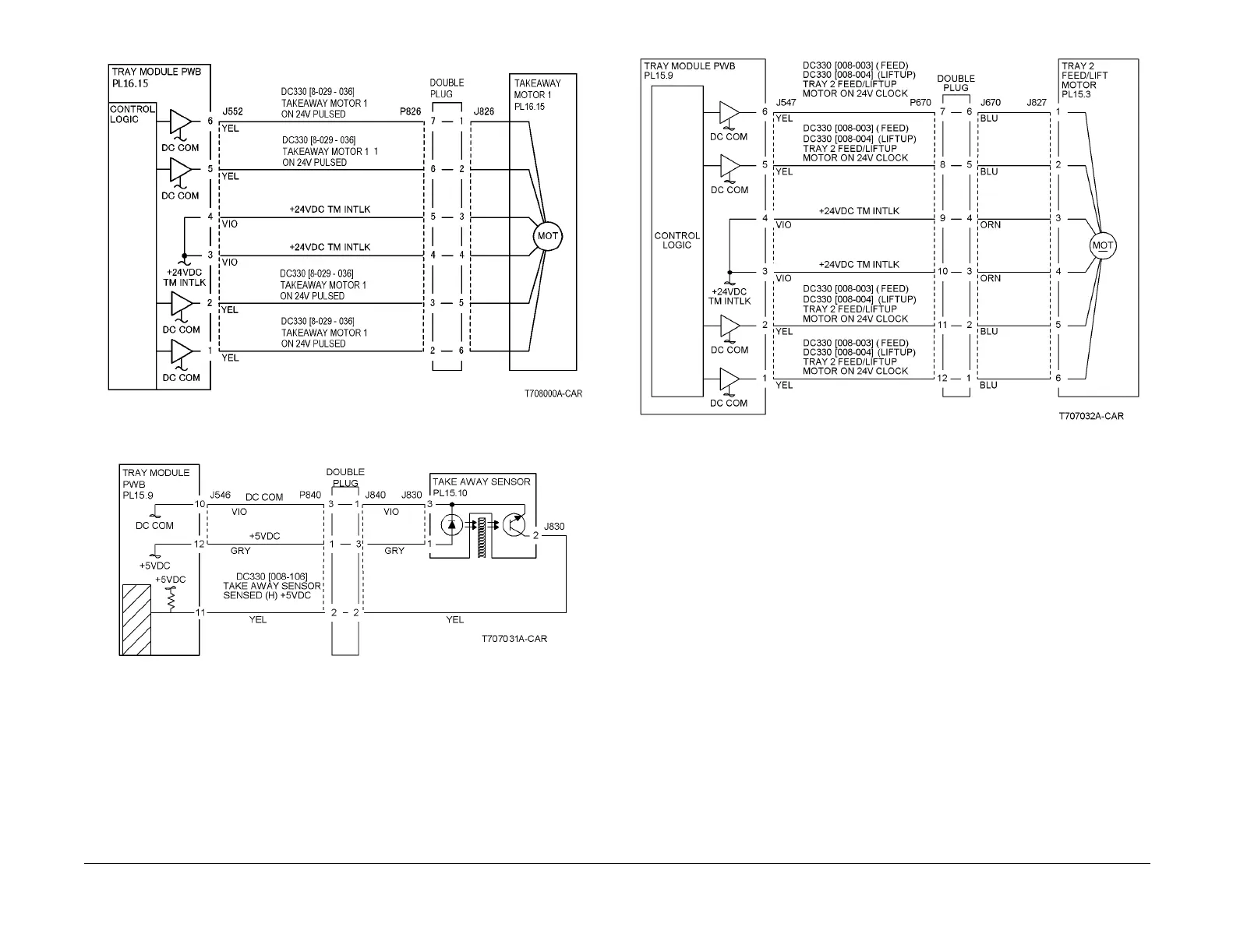

Figure 3 7-110 RAP Circuit Diagram - Takeaway Motor 1 (TTM)
Figure 4 7-110 RAP Circuit Diagram - Takeaway Sensor (3TM)
Figure 5 7-110 RAP Circuit Diagram - Tray 2 Feed/Lift Motor (3TM)
