Xerox DocuColor 2240

09/03
2-143
DC 3535/2240/1632, WC M24
7-282
Status Indicator RAPs
Initial issue
7-282 Tray 2 Lift
The Tray 2 Level Sensor does not detect tray lift.
Initial Actions
Remove Tray 2 from the machine and empty the paper stock, then:
• Manually turn the gear at the rear of Tray 2 to check that the Bottom Plate moves up and
down smoothly.
• Check that the Tray 2 Level Sensor Actuator (PL 16.7) is properly seated and operates
smoothly.
• Gently push Tray 2 in to check that the drive transmission is firmly engaged.
• Ensure that Tray 2 is properly closed.
Procedure
The machine is equipped with a 3TM.
YN
Enter dC330 [008-004] and press Start. The Tray 2 Feed/Lift Motor (PL 16.7) ener-
gizes.
YN
Press Stop. Check the circuit of the Tray 2 Feed/Lift Motor (Figure 1). Check the
wires from the Tray Module PWB to the Tray 2 Feed/Lift Motor for an open circuit. If
the wires are good, replace the Tray 2 Feed/Lift Motor (PL 16.7). If the problem still
exits, replace the Tray Module PWB (PL 16.15)
Press Stop. Enter dC330 [007-117] and press Start. Open and close Tray 2. The dis-
play changes.
YN
Press Stop. Check the circuit of the Tray 2 Level Sensor (Figure 2). Refer to the OF
99-2 RAP for troubleshooting procedure.
Press Stop.
• Check the Tray 2 Feed / Lift Motor and its associated gears (PL 16.7) for damage,
contamination or misalignment.
• Ensure that the connectors shown in the circuit diagrams (Figure 1, Figure 2) are
securely connected and that the wires are not damaged.
• Replace the Tray 2 Level Sensor (PL 16.7).
• If these checks are OK, replace the Tray Module PWB (PL 16.15).
Enter dC330 [008-004] and press Start. The Tray 2 Feed/Lift Motor (PL 15.3) energizes.
YN
Press Stop. Check the circuit of the Tray 2 Feed/Lift Motor (Figure 3). Check the wires
from the Tray Module PWB to the Tray 2 Feed/Lift Motor for an open circuit. If the wires
are good, replace the Tray 2 Feed/Lift Motor (PL 15.3). If the problem still exits, replace
the Tray Module PWB (PL 15.9)
Press Stop. Enter dC330 [007-117] and press Start. Open and close Tray 2. The display
changes.
YN
Press Stop. Check the circuit of the Tray 2 Level Sensor (Figure 4). Refer to the OF 99-2
RAP for troubleshooting procedure.
Press Stop.
• Check the Tray 2 Feed / Lift Motor and its associated gears (PL 15.3) for damage, con-
tamination or misalignment.
• Ensure that the connectors shown in the circuit diagrams (Figure 3, Figure 4) are securely
connected and that the wires are not damaged.
• Replace the Tray 2 Level Sensor (PL 15.3).
• If these checks are OK, replace the Tray Module PWB (PL 15.9).

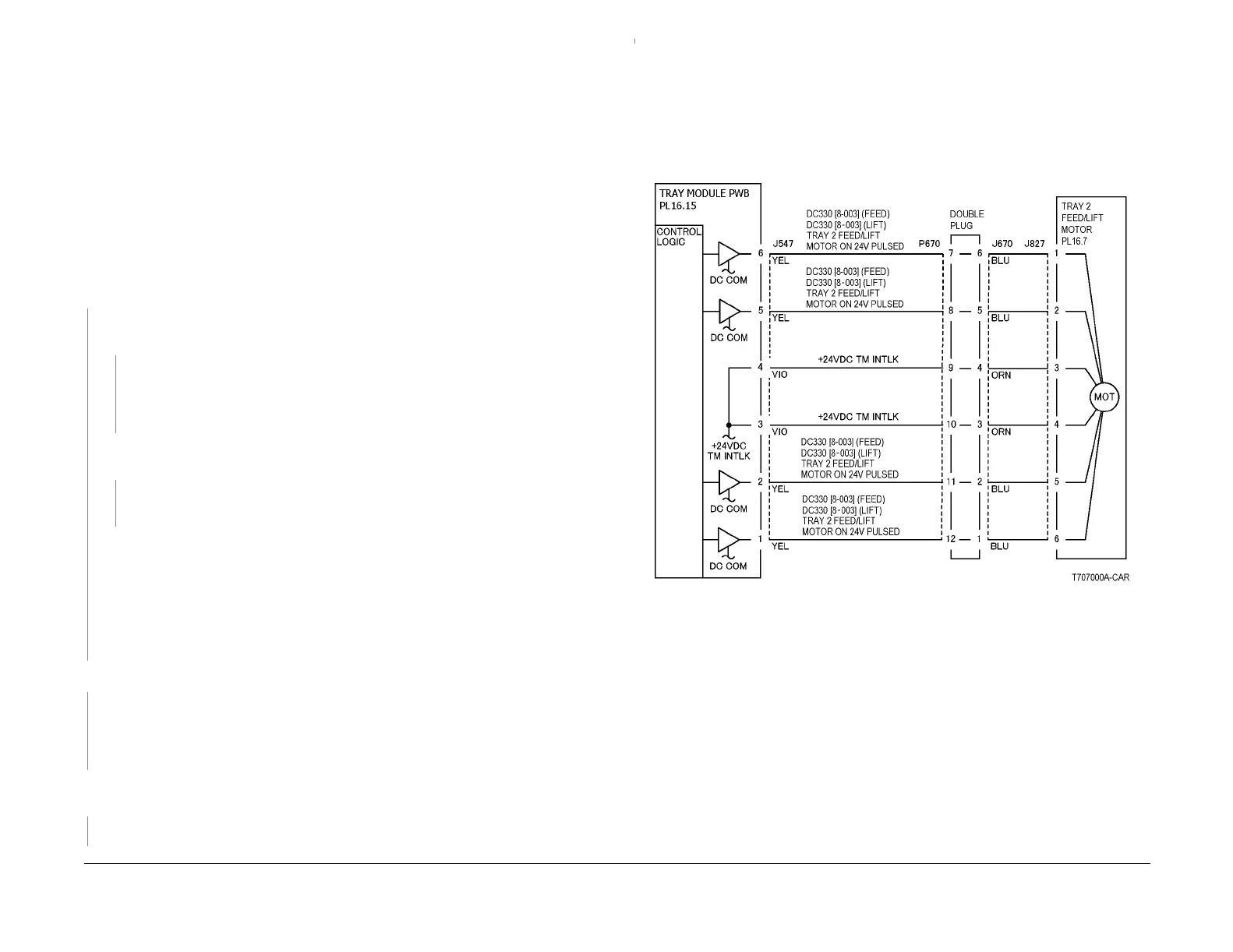

Figure 1 7-282 RAP Circuit Diagram - Tray 2 Lift/Feed Motor (TTM)
