Xerox DocuColor 2240

09/03
2-145
DC 3535/2240/1632, WC M24
7-283
Status Indicator RAPs
Initial issue
7-283 Tray 3 Lift (3TM)
The Tray 3 Level Sensor does not detect tray lift.
Initial Actions
Remove Tray 3 from the machine and empty the paper stock, then:
• Manually turn the gear at the rear of Tray 3 to check that the Bottom Plate moves up and
down smoothly.
• Check that the Tray 3 Level Sensor Actuator (PL 15.5) is properly seated and operates
smoothly.
• Gently push Tray 3 in to check that the drive transmission is firmly engaged.
• Ensure that Tray 3 is properly closed.
Procedure
Enter dC330 [008-006] and press Start. The Tray 3 Feed/Lift Motor (PL 15.5) energizes.
YN
Press Stop. Check the circuit of the Tray 3 Feed/Lift Motor (Figure 1). Check the wires
from the Tray Module PWB to the Tray 3 Feed/Lift Motor for an open circuit. If the wires
are good, replace the Tray 3 Feed/Lift Motor (PL 15.5). If the problem still exits, replace
the Tray Module PWB (PL 15.9)
Press Stop. Enter dC330 [007-118] and press Start. Open and close Tray 3. The display
changes.
YN
Press Stop. Check the circuit of the Tray 3 Level Sensor (Figure 2). Refer to the OF 99-2
RAP for troubleshooting procedure.
Press Stop.
• Check the Tray 3 Feed/Lift Motor and its associated gears (PL 15.5) for damage, contam-
ination or misalignment.
• Ensure that the connectors shown in the circuit diagrams (Figure 1, Figure 2) are securely
connected and that the wires are not damaged.
• Replace the Tray 3 Level Sensor (PL 15.5).
• If the problem persists, replace the Tray Module PWB (PL 15.9).

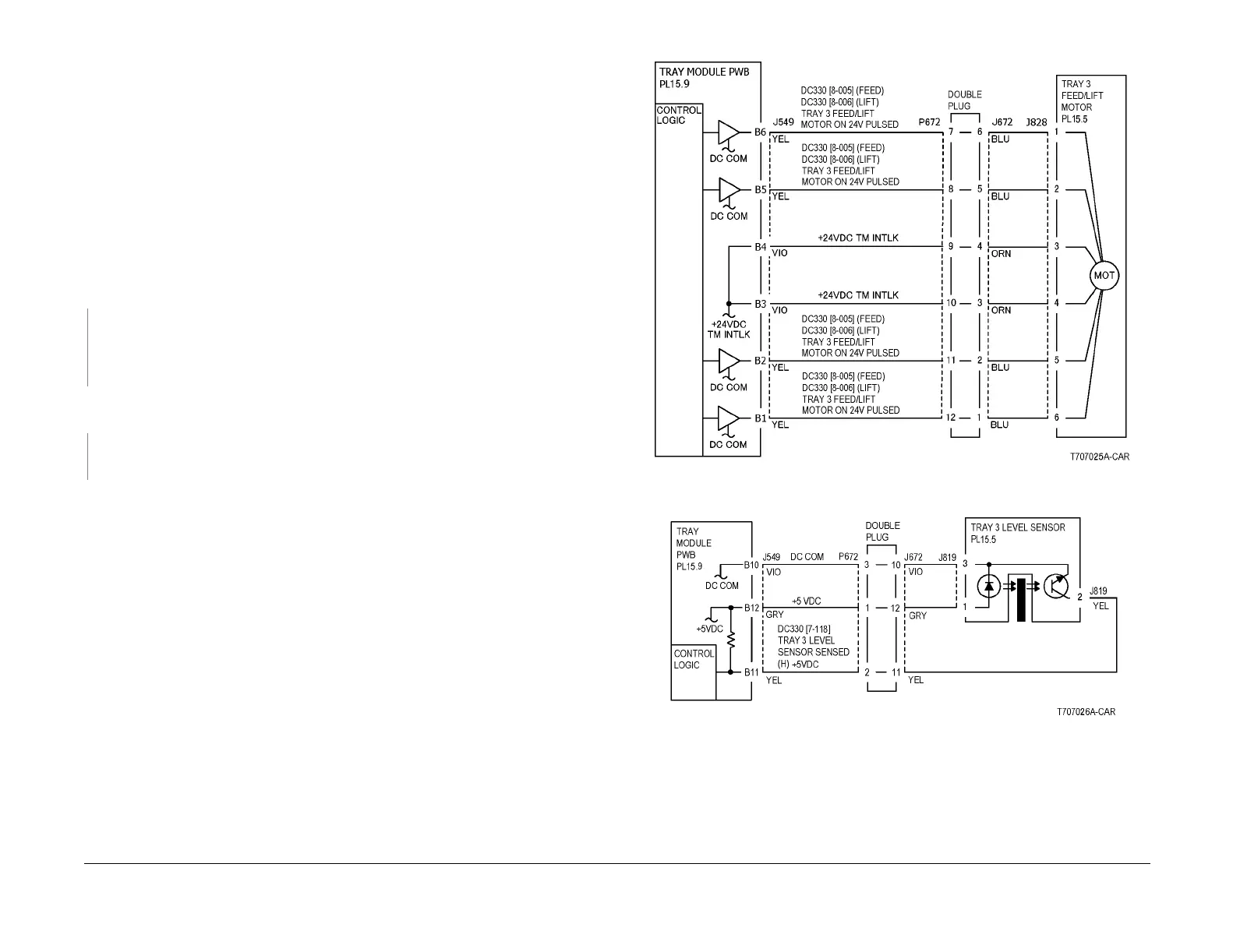

Figure 1 7-283 RAP Circuit Diagram - Tray 3 Feed/Lift Motor (3TM)
Figure 2 7-283 RAP Circuit Diagram - Tray 3 Level Sensor (3TM)
