Status Indicator RAPs
7-284 Tray 4 Lift (3TM)
The Tray 4 Level sensor does not detect tray lift.
Initial Actions
Remove Tray 4 from the machine and empty the paper stock, then:
• Manually turn the gear at the rear of Tray 4 to check that the Bottom Plate moves up and
down smoothly.
• Check that the Tray 4 Level Sensor Actuator (PL 15.7) is properly seated and operates
smoothly.
• Gently push Tray 4 in to check that the drive transmission is firmly engaged.
• Ensure that Tray 4 is properly closed.
Procedure
Enter dC330 [008-008] and press Start. The Tray 4 Feed/Lift Motor (PL 15.5) energizes.
YN
Press Stop. Check the circuit of the Tray 4 Feed/Lift Motor (Figure 1). Check the wires
from the Tray Module PWB to the Tray 4 Feed/Lift Motor for an open circuit. If the wires
are good, replace the Tray 4 Feed/Lift Motor (PL 15.7). If the problem still exits, replace
the Tray Module PWB (PL 15.9)
Press Stop. Enter dC330 [007-119] and press Start. Open and close Tray 4. The display
changes.
YN
Press Stop. Check the circuit of the Tray 4 Level sensor (Figure 2). Refer to the OF 99-2
RAP for troubleshooting procedure.
Press Stop.
• Check the Tray 4 Feed/Lift Motor and its associated gears (PL 15.7) for damage, contam-
ination or misalignment.
• Ensure that the connectors shown in the circuit diagrams (Figure 1, Figure 2) are securely
connected and that the wires are not damaged.
• Replace the Tray 4 Level Sensor (PL 15.7).
• If the problem persists, replace the Tray Module PWB (PL 15.9).

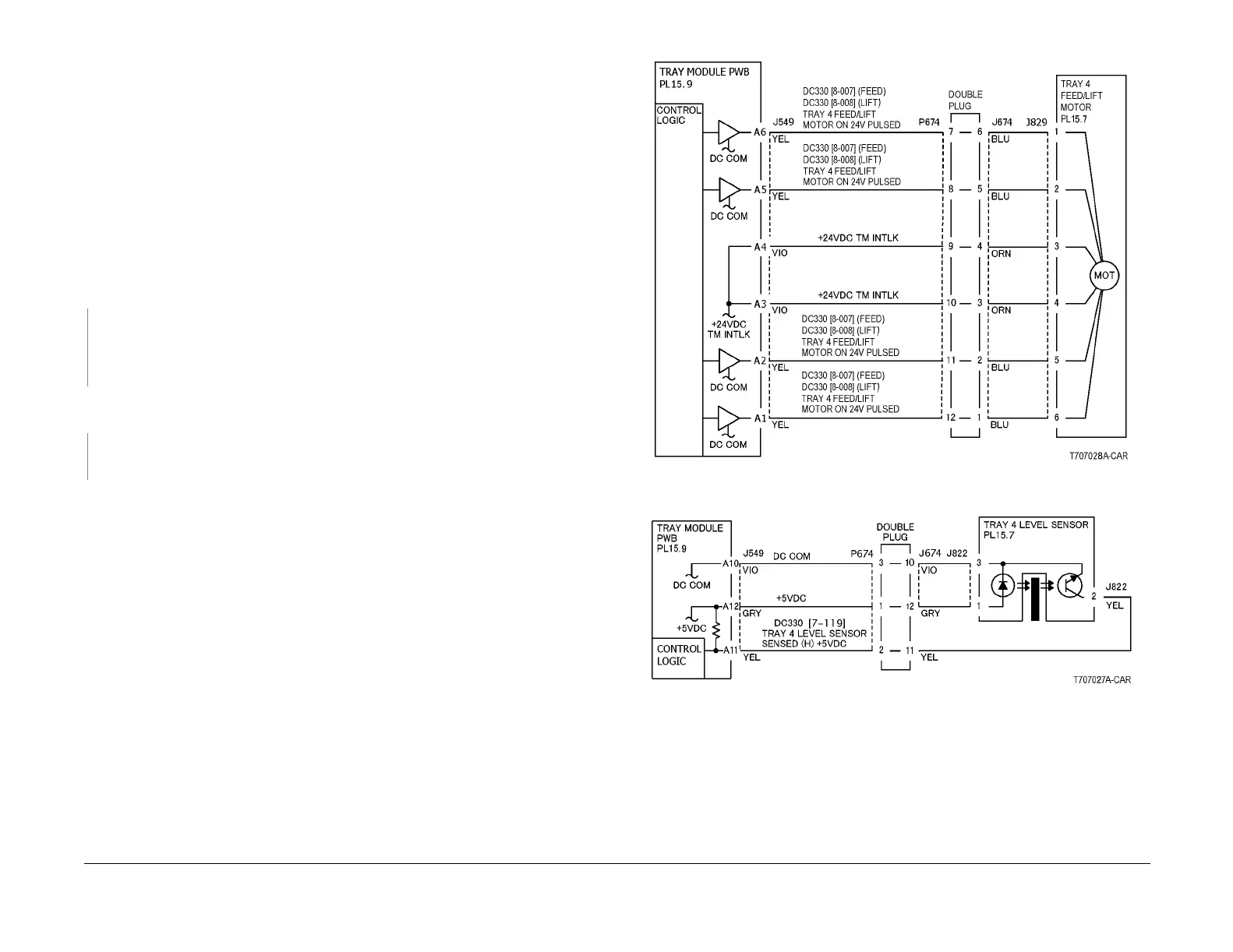

Figure 1 7-284 RAP Circuit Diagram - Tray 4 Feed/Lift Motor (3TM)
Figure 2 7-284 RAP Circuit Diagram - Tray 4 Level Sensor (3TM)
