Status Indicator RAPs
10-111 Fuser Exit Switch Off
The Fuser Exit Switch did not de-energize.
Initial Actions
• Check condition and specification of the paper supply.
• Check for obstructions in the paper feed path.
• Clean the Fuser Exit Roll and check for wear.
• Check the drive transmissions for damage or wear.
Procedure
Remove the Fuser Assembly from the machine and check the Fuser Stripper Fingers and
Fuser Roll (PL 7.1) for dirt build up, wear or damage. The check is OK.
YN
Clean or replace the Fuser Assembly (PL 7.1).
Open the Left Cover Assembly (PL 2.8). Enter dC330 [010-101] and press Start. Actuate the
Fuser Exit Switch (PL 2.8). The display changes state.
YN
Press Stop. Check the circuit of the Fuser Exit Switch (Figure 1). Refer to the OF 99-3
RAP for troubleshooting procedure.
Press Stop.
• Ensure that the connectors shown in the circuit diagrams are securely connected and that
the wires are not damaged.
• If the problem persists, replace the MCU PWB (PL 13.1).

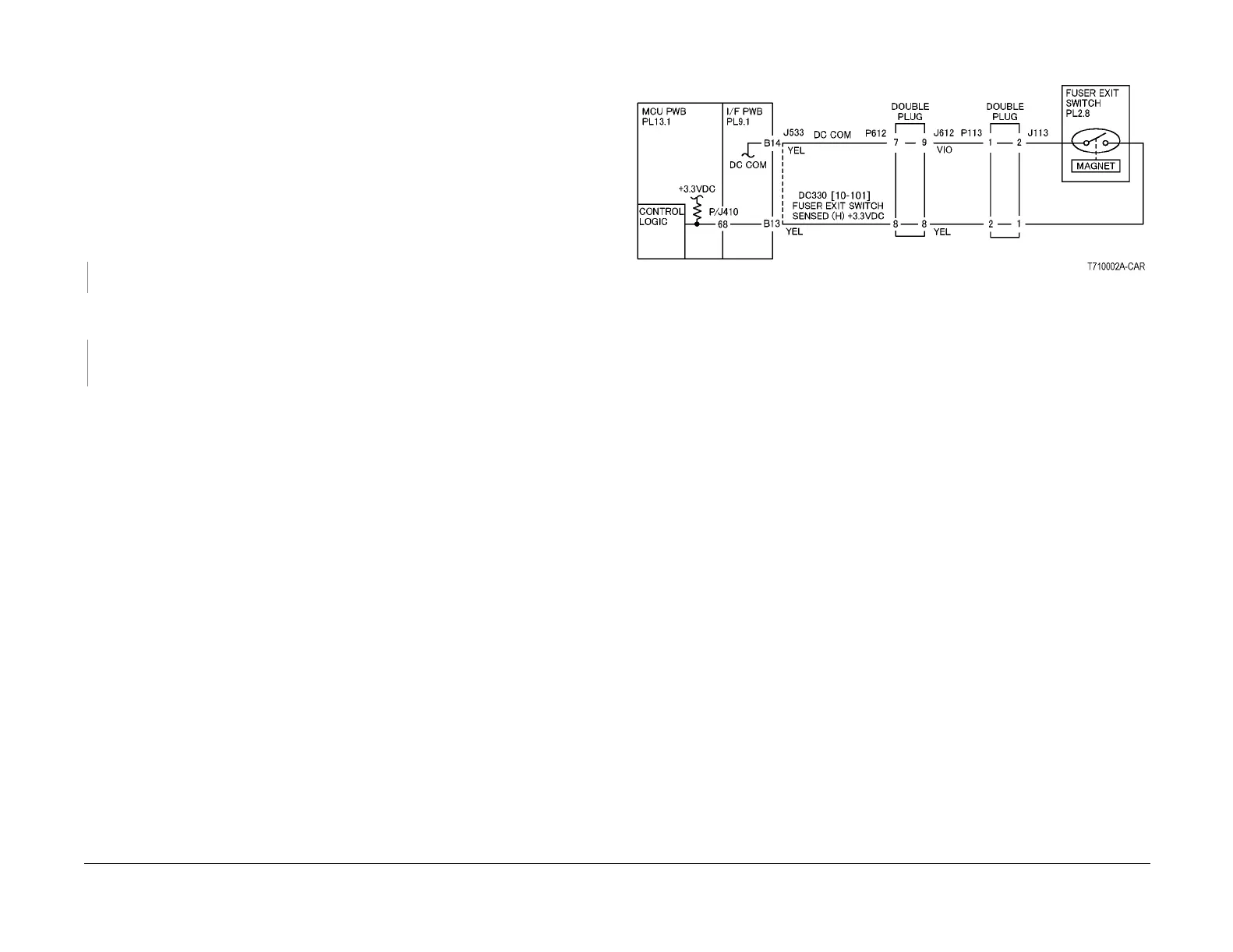

Figure 1 10-111 RAP Circuit Diagram - Fuser Exit Switch
