Status Indicator RAPs
Initial issue

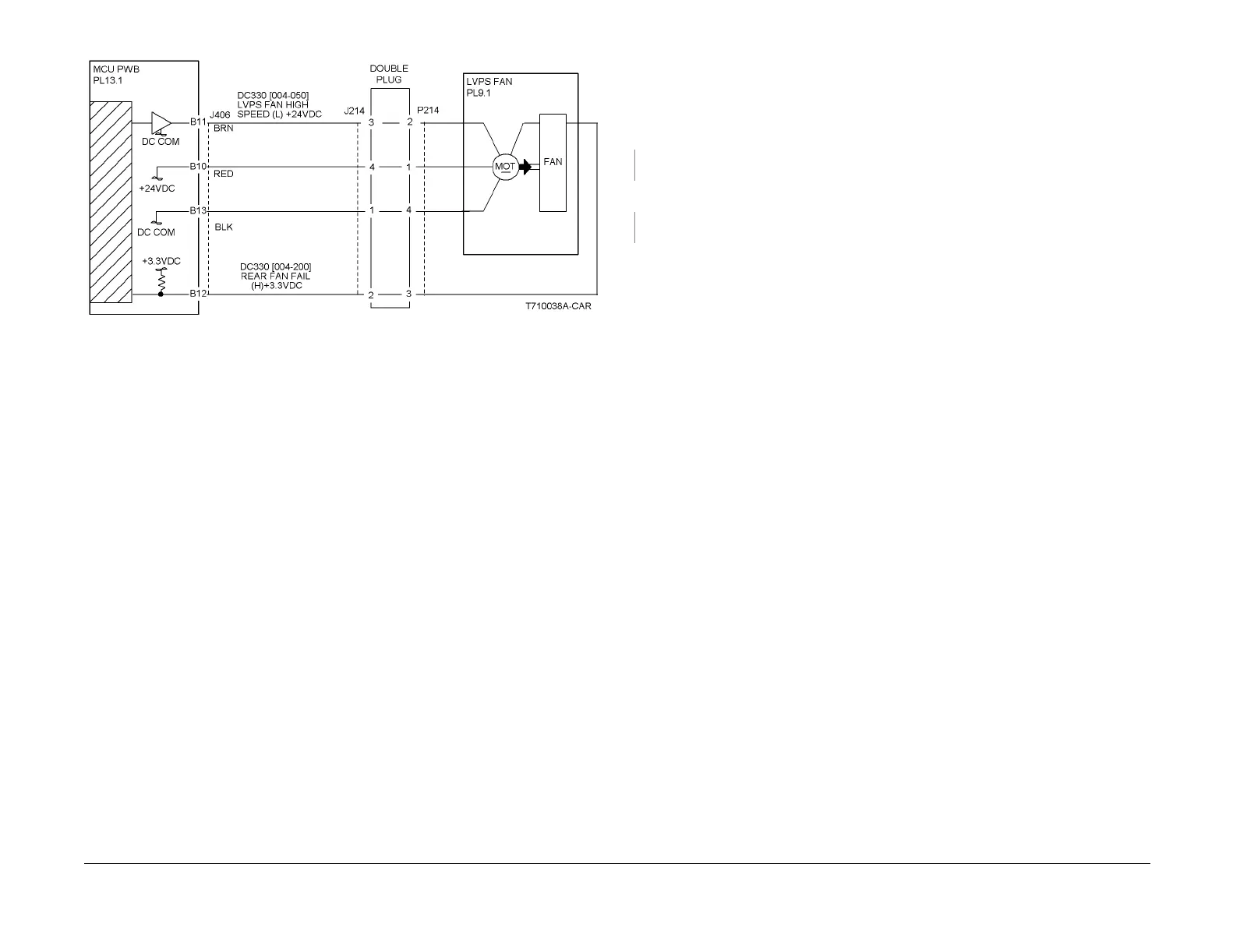

Figure 5 10-398 RAP Circuit Diagram - DC 3535 LVPS Fan
10-420 Fuser Near End Of Life
Replace the Fuser Assembly in X copies.
Procedure
The Fuser Assembly was replaced.
YN
Replace the Fuser Assembly (PL 7.2)
Run the dC135 [954-804]. The initial value is 0.
YN
Replace the MCU PWB (PL 13.1).
Ensure that the LIFE setting value is 100K, switch power off then on.
If the problem continues, replace the MCU PWB (PL 13.1).
