Xerox DocuColor 2240

09/03
2-247
DC 3535/2240/1632, WC M24
12-120
Status Indicator RAPs
Initial issue
12-120 Compiler Entrance Sensor On
The Compiler Entrance Sensor did not detect paper.
Initial Actions
• Check condition and specification of the paper supply.
• Check for obstructions in the paper feed path.
• Clean the H Transport Belt and check for wear.
• Check the Guides on the H Transport Cover for damage, wear or faulty installation
Procedure
Enter dC330 [012-101] and press Start. Open the H Transport Cover and actuate the Complier
Entrance Sensor (PL 17.12) (Figure 1) by manually feeding a sheet of paper through the Fin-
isher. The display changes.
YN
Press Stop. Check the circuit of the Compiler Entrance Sensor (Figure 2). Refer to the
OF 99-2 RAP for troubleshooting procedure.
Press Stop.
• Ensure that the connectors shown in the circuit diagram (Figure 2) are securely con-
nected and that the wires are not damaged.
• Check the Finisher Drive Motor and its associated gears and belts (PL 17.4, PL 17.7) for
damage, contamination or misalignment.
• Decurler Roll/Pinch Roll for a drive failure (PL 17.7).
• Replace the Compiler Entrance Sensor (PL 17.12).
• If the problem persists, replace the Finisher PWB (PL 17.13) (Figure 3).

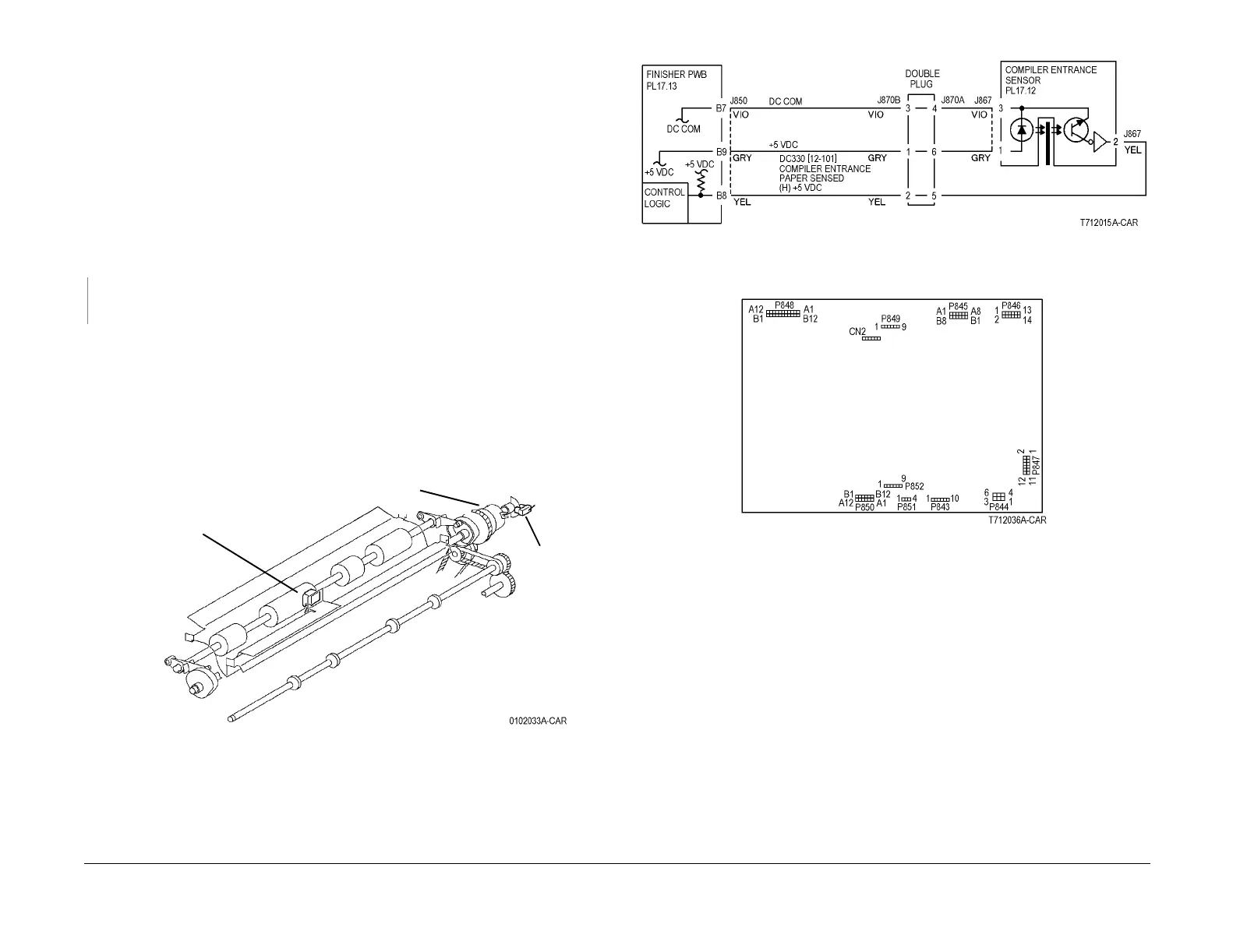

Figure 1 Component Location
Figure 2 12-120 RAP Circuit Diagram - Compiler Entrance Sensor
Figure 3 Finisher PWB
Compiler
Entrance
Sensor
Home
Sensor
D
ecur
l
er
Cl
utc
h
