09/03
2-248
DC 3535/2240/1632, WC M24
12-122
Initial issue
Status Indicator RAPs
12-122 Compiler Entrance Sensor Off
Paper does not deactuate the Compiler Entrance Sensor.
Initial Actions
• Check condition and specification of the paper supply.
• Check for obstructions in the paper feed path.
• Clean the H Transport Belt and check for wear.
Procedure
Make a copy and observe paper in the Compiler Tray. The copy enters the Compiler Tray.
YN
There is a drives problem. Check the following:
• The Finisher Drive Motor and its associated gears and belts (PL 17.7) for damage,
contamination or misalignment.
• The Decurler Roll/Pinch Roll (Shaft) (PL 17.7) for a drive or contact failure.
• The Exit Roll and Pinch Rolls (PL 17.12) for a drive or contact failure.
Enter dC330 [012-101] and press Start. Open the H Transport Cover and actuate the Complier
Entrance Sensor (PL 17.12) (Figure 1) by manually feeding a sheet of paper through the Fin-
isher. The display changes.
YN
Press Stop. Check the circuit of the Compiler Entrance Sensor (Figure 2). Refer to the
OF 99-2 RAP for troubleshooting procedure.
Press Stop.
• Ensure that the connectors shown in the circuit diagram (Figure 2) are securely con-
nected and that the wires are not damaged.
• Replace the Compiler Entrance Sensor (PL 17.12).
• If the problem persists, replace the Finisher PWB (PL 17.13) (Figure 3).

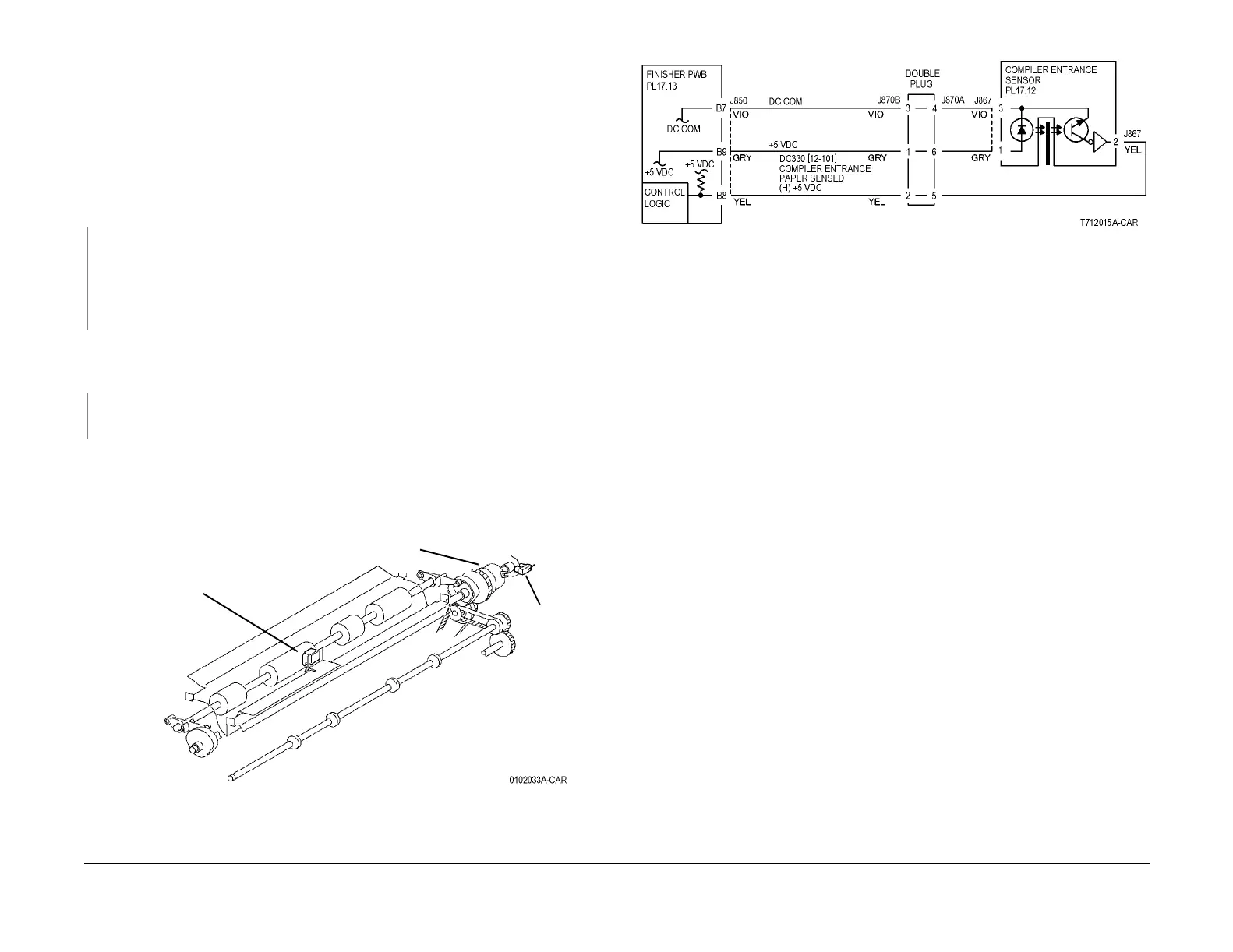

Figure 1 Component Location
Figure 2 12-122 RAP Circuit Diagram - Compiler Entrance Sensor
Compiler
Entrance
Sensor
Home
Sensor
ecur
er
utc
To Next Page
