Status Indicator RAPs
1-301 RAP
The Left Lower Cover is open
Procedure
Enter dC330 [001-302] and press the Start button. Open the Left Lower Cover. Actuate the LH
Lower Cover Interlock Switch (PL 2.3) with a screwdriver. The display changes state.
YN
Go to the OF 99-2 RAP and repair the LH Lower Cover Interlock Switch. (PL 2.3). Refer to
Figure 1.
Check the Actuator and Left Lower Cover installation (PL 2.3).

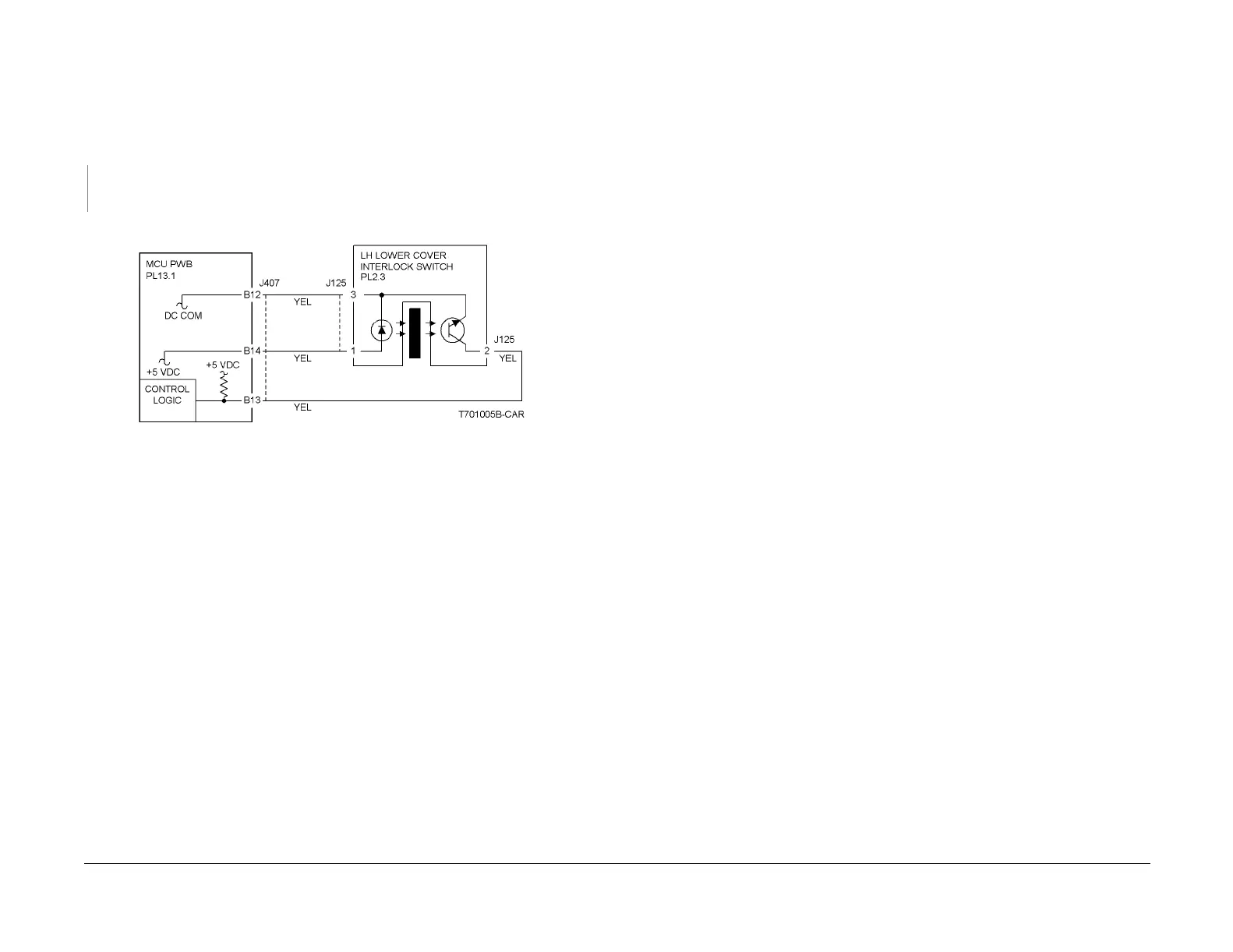

Figure 1 1-301 RAP Circuit Diagram - LH Lower Cover Interlock Switch
To Next Page
