6. Position Support (Figure 4)

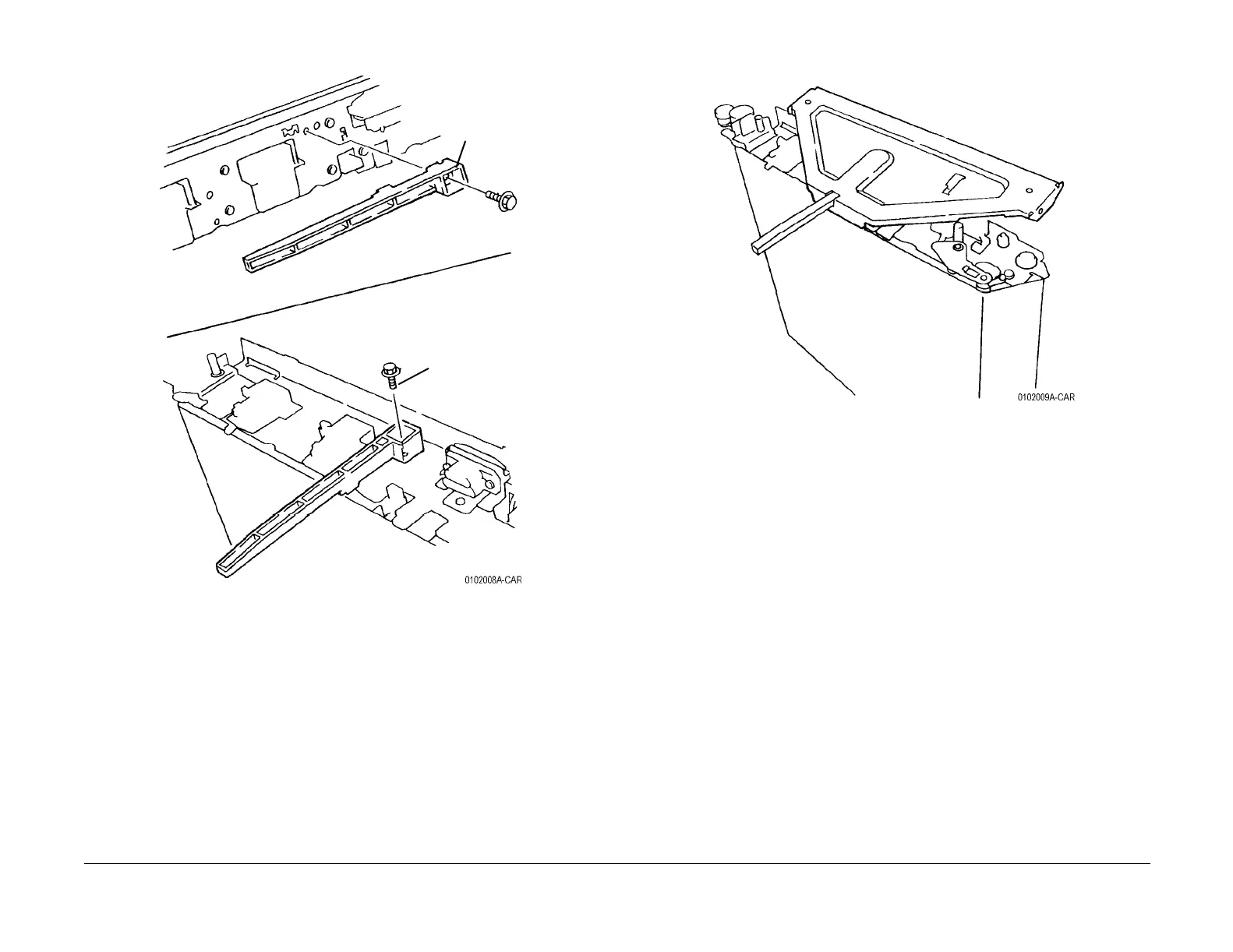

Figure 4 Positioning Latch
7. Install Stand Plate (Figure 5).
Figure 5 Installing Stand Plate
1
Remove
Screw and
Support
2
Install Sup-
port and
Screw
