Xerox DocuColor 2240 Service Manual

09/03
4-93
DC 3535/2240/1632, WC M24
REP 9.22
Repairs and Adjustments
Initial issue
8. Place Stand Plate below and stand IBT Belt Assembly.

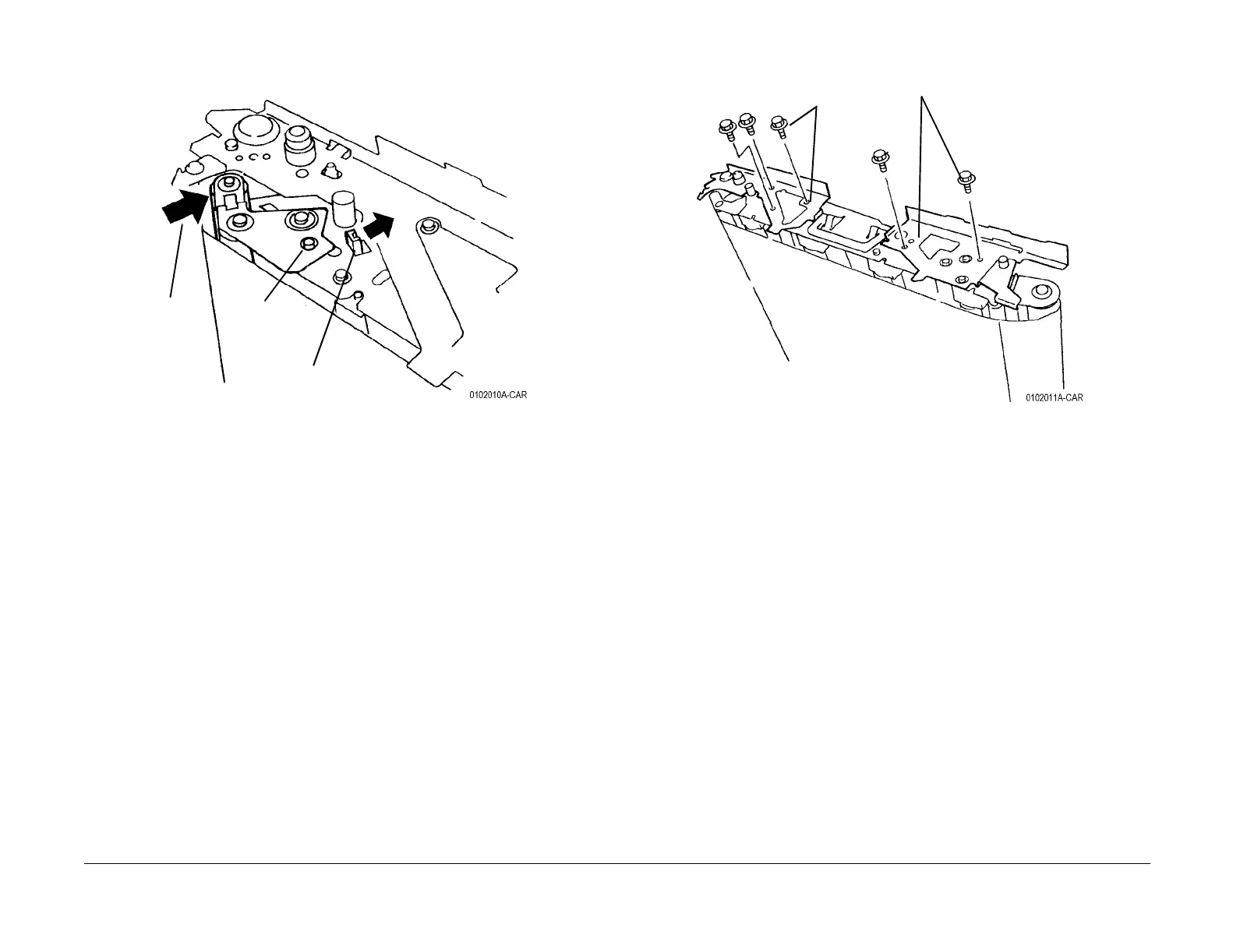

9. Relax tension of Belt on both sides (Figure 6).
Figure 6 Relaxing Belt Tension
10. Remove Brackets (Figure 7).
Figure 7 Removing Bracket
1
Forcefully
push roll
and do
step 2
2
Push Tab so Lock
engages plate
Lock
Remove Screws (5)
and Brackets (2)
