Xerox DocuColor 2240 - Page 877

09/03
4-94
DC 3535/2240/1632, WC M24
REP 9.22
Initial issue
Repairs and Adjustments

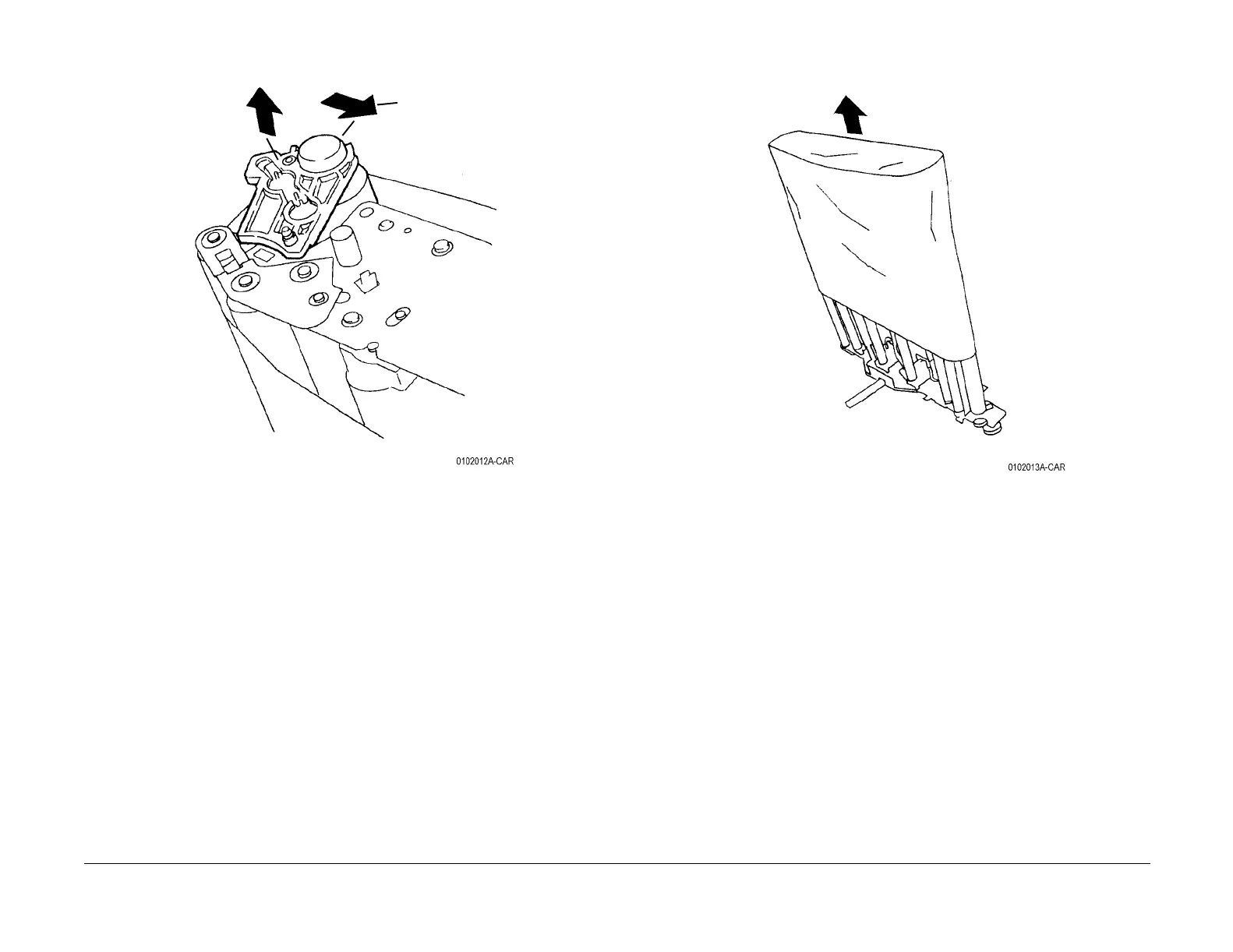

11. Pull out Backup Roll Housing from hole below and rotate (Figure 8).
Figure 8 Pulling Out Backup Roll Housing
12. Remove Transfer Belt (Figure 9).
Figure 9 Removing Transfer Belt
1
Lift Backup
Roll Hous-
ing to disen-
gage bottom
2
Rotate
Housing 1/4
turn
