Xerox DocuColor 2240 Service Manual

09/03
4-110
DC 3535/2240/1632, WC M24
REP 12.6
Initial issue
Repairs and Adjustments
6. Remove the Home Sensor (Figure 5).

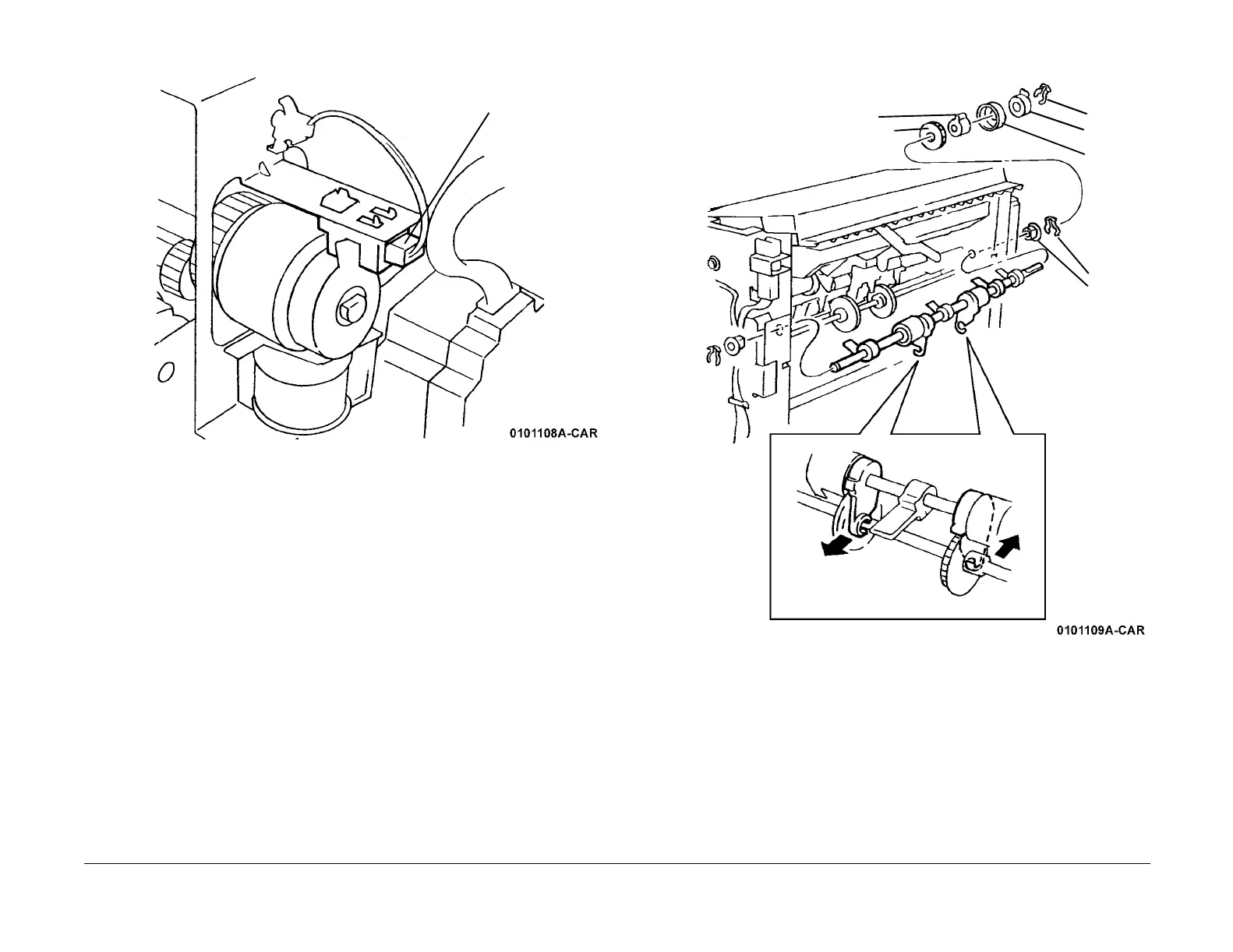

Figure 5 Remove Home Sensor
7. Remove Eject Roll (Figure 6).
Figure 6 Removing Eject Roll
Disconnect harness and
remove Home Sensor
1
Remove
Clip,
Actuator,
and
Clutch
2
Remove
Collar
and Gear
3
Remove
Clip and
Bearing
from
both
ends
4
Disconnect Hook (2) from Eject
Shaft and remove Eject Roll
