Xerox DocuColor 2240 Service Manual

09/03
4-128
DC 3535/2240/1632, WC M24
REP 12.14
Initial issue
Repairs and Adjustments
4. Remove the Thumbscrews (2) (Figure 3).

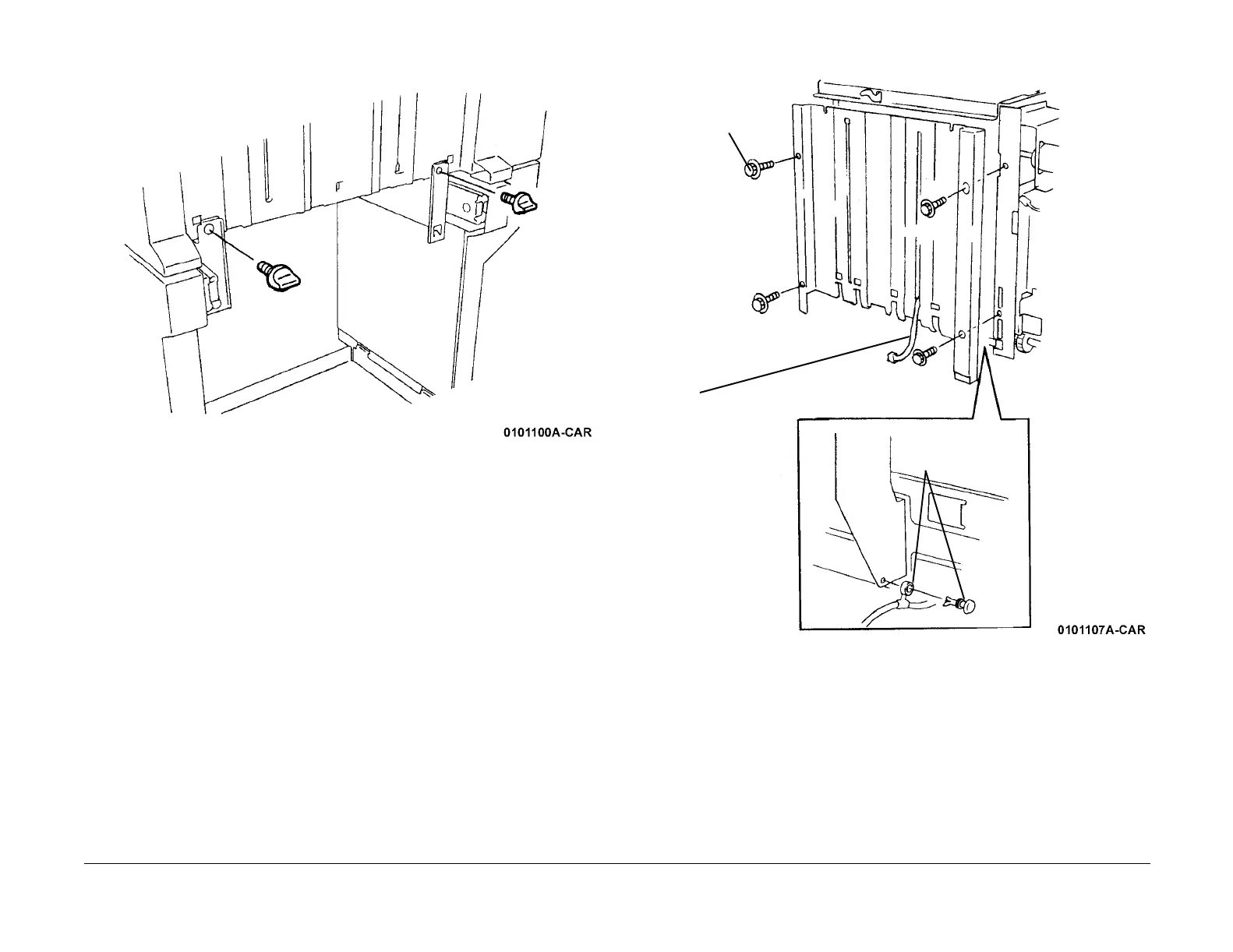

Figure 3 Removing Thumbscrews
5. Remove the Tray Guide (Figure 4).
Figure 4 Removing Tray Guide
1
Remove
Screws (4)
2
Remove Fastener
and Cable Clamp
3
Remove Cable
from Tray Guide
and remove Tray
Guide
