09/03
4-129
DC 3535/2240/1632, WC M24
REP 12.14
Repairs and Adjustments
Initial issue

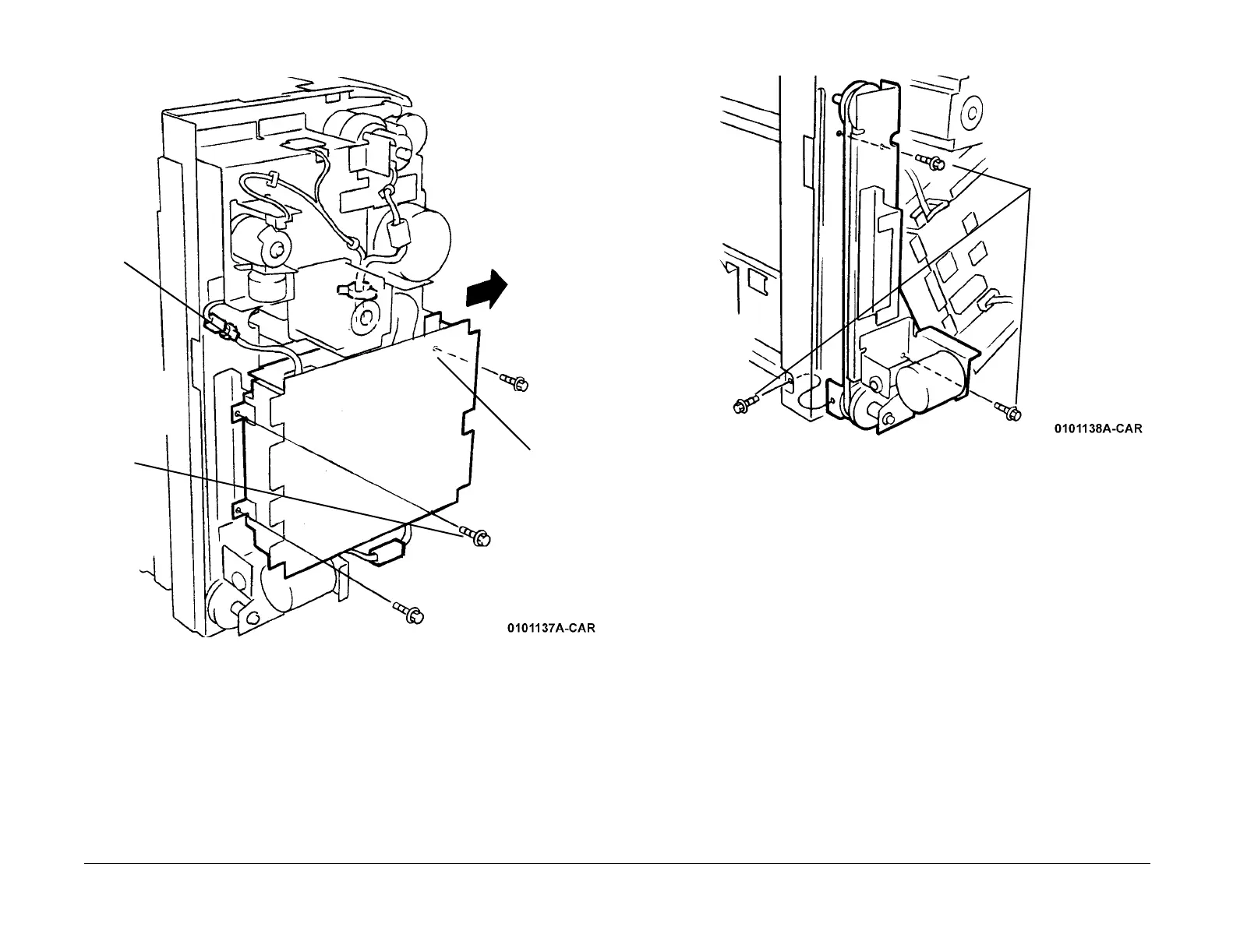

6. Move PWB Chassis (Figure 5).
Figure 5 Moving PWB Chassis
7. Remove Front Elevator Bracket (Figure 6).
Figure 6 Removing Elevator Bracket Assembly
1
Release
Wires from
Clamp
2
Loosen
Screw
2
Remove
Screws
(2)
4
Move PWB
Chassis
Remove
Screws (3)
and Elevator
Bracket
Assembly
