Token Ring Installation
Initial issue
Installation

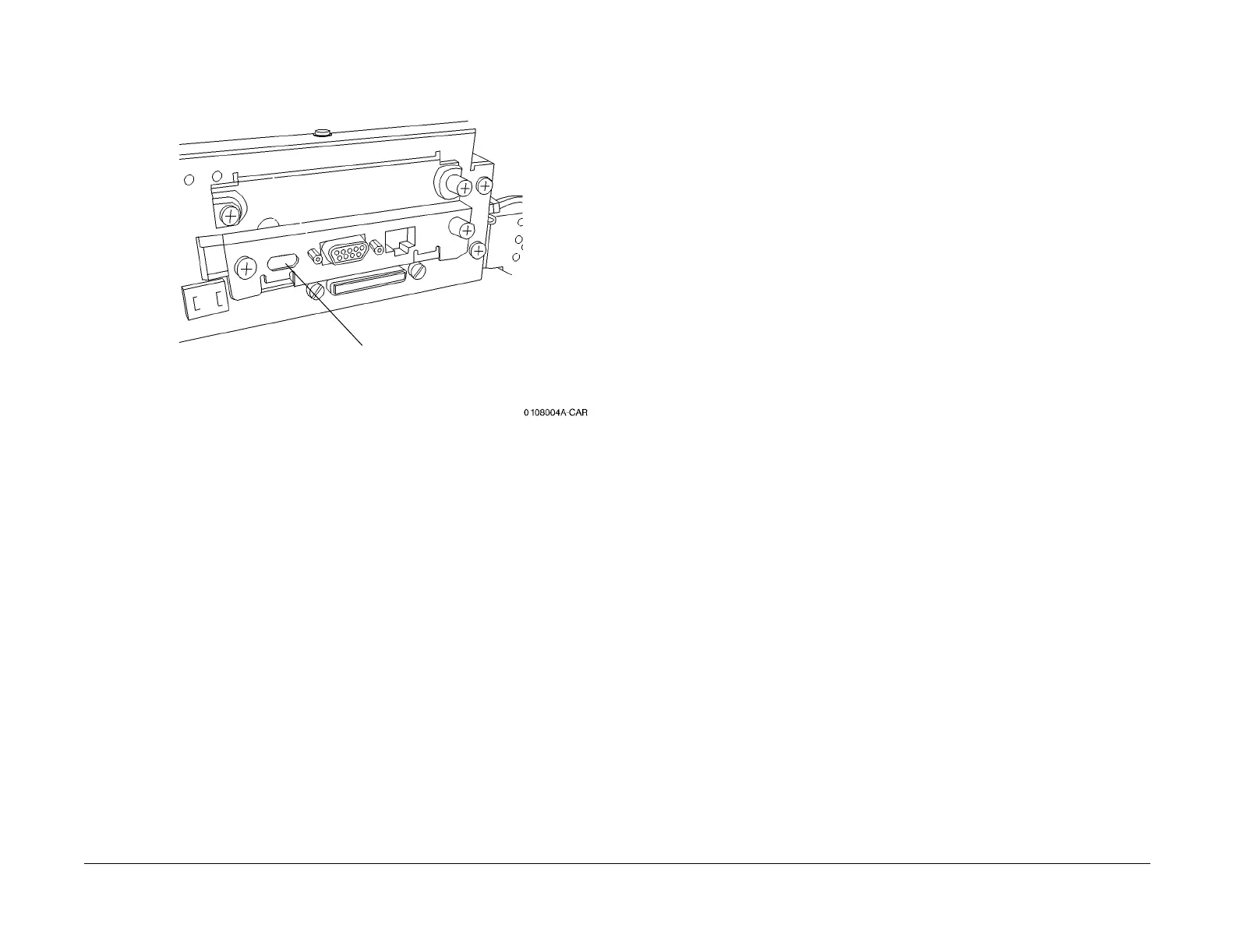

Figure 5 Token Ring PWB
23. The LED indicates a successful network connection. If the LED is off, call for network
assistance.
Green LED
