Xerox DocuColor 2240

09/03
2-135
DC 3535/2240/1632, WC M24
7-271
Status Indicator RAPs
Initial issue
7-271 Tray 2 Paper Size Sensor
An abnormal AD value was detected by the Tray 2 Paper Size Sensor.
Initial Actions
• Check that the paper size setting is correct.
• Check the Tray 2 Paper Size Sensor for damage or incorrect mounting. Repair or replace
as required.
• Check the switch actuators on Tray 2 for wear or damage. Repair or replace as required
Procedure
The machine is equipped with a 3TM.
YN
Ensure that Tray 2 is closed. The voltage measured a P/J546-8 on the Tray Module
PWB (PL 16.15) corresponds to the paper size in Table 1.
YN
There is +5 VDC from P/J816-1 to P/J816-3 on the Tray 2 Paper Size Sensor
(PL 16.1).
YN
There is +5VDC from P/J546-9 to P/J546-7 on the Tray Module PWB.
YN
Go to the +5VDC Wirenets (Figure 4) to troubleshoot the power circuit.
Go to Figure 1. Check the wires from P/J546 to P/J816.
Go to Figure 1. Check the wire from P/J546-8 to P/J816-2. If the wire is OK, replace
the Tray 2 Paper Size Sensor (PL 16.1).
• Replace the Tray 2 Paper Size Sensor (PL 16.1).
• If the problem continues, replace the Tray Module PWB (PL 16.15).
Ensure that Tray 2 is closed. The voltage measured at P/J546-8 on the Tray Module PWB
(PL 15.9) corresponds to the paper size in Table 1.
YN
There is +5VDC from P/J816-1 to P/J816-3 on the Tray 2 Paper Size Sensor (PL
15.1).
YN
There is +5VDC from P/J546-9 to P/J546-7 on the Tray Module PWB.
YN
Go to the +5VDC Wirenets (Figure 4) to troubleshoot the power circuit.
Go to Figure 2. Check the wires from P/J546 to P/J816.
Go to Figure 2. Check the wire from P/J546-8 to P/J816-2. If the wire is OK, replace the
Tray 2 Paper Size Sensor (PL 15.1).
• Replace the Tray 2 Paper Size Sensor (PL 15.1).
• If the problem continues, replace the Tray Module PWB (PL 15.9).

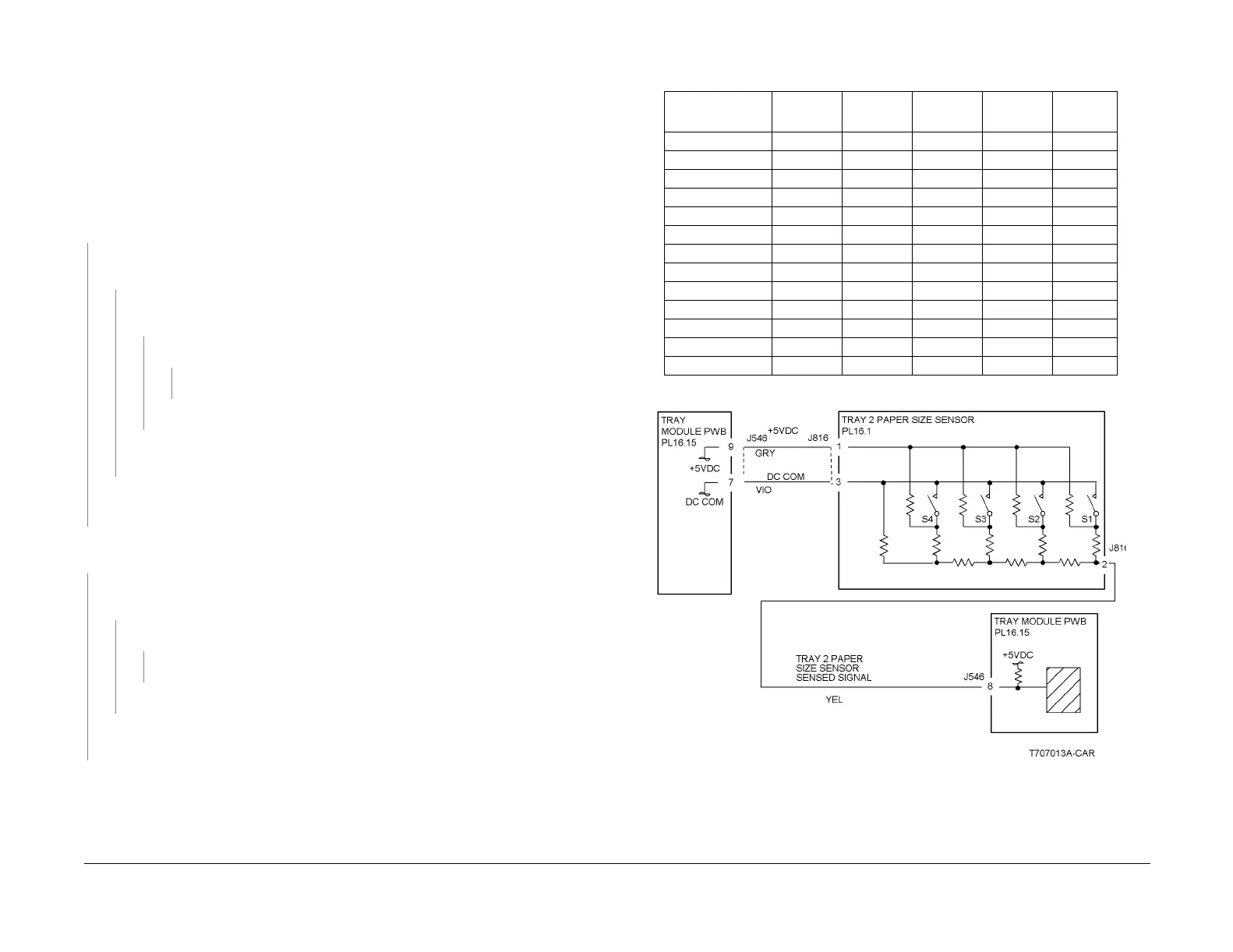

Figure 1 7-271 RAP Circuit Diagram - Tray 2 Paper Size Sensing
Table 1 Tray 2 Size Sensor Values
Paper Size
S1
[007-104]
S2
[007-105]
S3
[007-106]
S3
[007-107]
Voltage
(J546-8)
No Tray OFF OFF OFF OFF 4.78
A3 SEF OFF OFF OFF ON 4.45
11x17 SEF OFF OFF ON OFF 4.12
8.5x13 SEF OFF OFF ON ON 3.81
B5 or 16K LEF OFF ON OFF ON 3.18
B5 or 8x10 SEF OFF ON ON OFF 2.87
8.5x11 SEF OFF ON ON ON 2.57
B4 or 8K SEF ON OFF OFF ON 1.98
A4 SEF ON OFF ON OFF 1.67
8.5x14 SEF ON OFF ON ON 1.37
A4 LEF ON ON OFF ON 0.77
8.5x11 LEF ON ON ON OFF 0.47
A5 or 5.5x8.5 SEF ON ON ON ON 0.17
