Command reference

R&S

ZNB/ZNBT

1007User Manual 1173.9163.02 ─ 62

Suffix:

<Chn>

Channel number used to identify the active trace

Parameters:

<Unit> TIME | DISTance

TIME - x-axis scaled in time units.

DISTance - x-axis scaled in distance units (Distance = Time * c

* Velocity Factor).

Example:

*RST; :CALC:TRAN:TIME:STAT ON

Reset the instrument, activating a frequency sweep, and enable

the time domain transformation for the default trace.

CALC:TRAN:TIME:XAX DIST

Convert the x-axis scaling to distance units.

Manual operation: See " Time / Distance" on page 419

CALCulate:TRANsform:VNETworks...

The CALCulate:TRANsform:VNETworks... commands define and activate the cir-

cuit models for the different de-/embedding types. SeeChapter 4.6.2, "Embedding and

deembedding", on page 208 .

The circuit models are addressed by predefined enum constants. Except for the FIM-

Port model, that consists of a single snp file, the models and constants are different for

the different de-/embedding types.

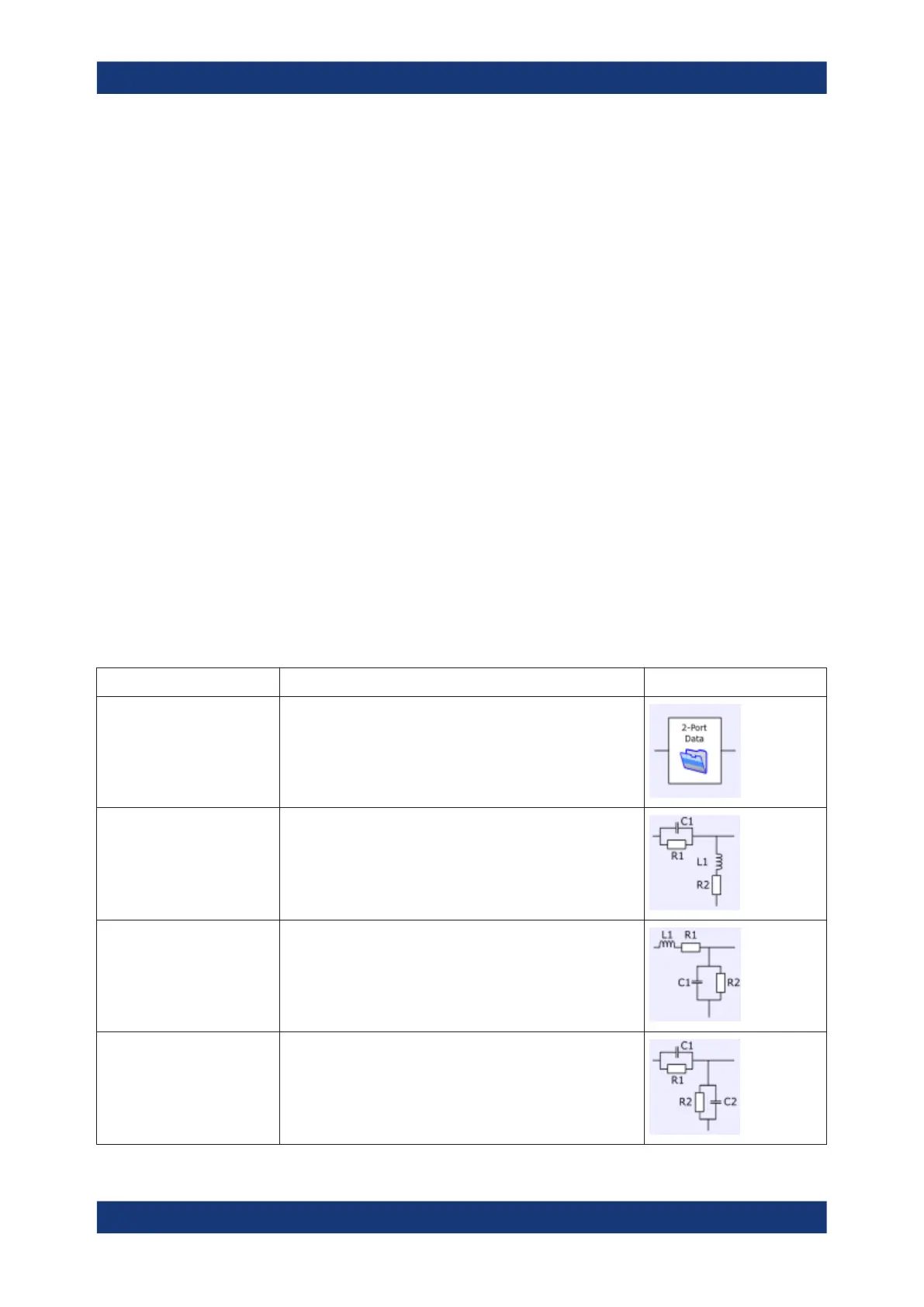

Table 7-6: Circuit models for single ended port embedding/deembedding

Parameter Circuit model Pictogram

FIMPort File import, generic 2-port (no circuit model)

CSL Serial C, shunt L

LSC Serial L, shunt C

CSC Serial C, shunt C
