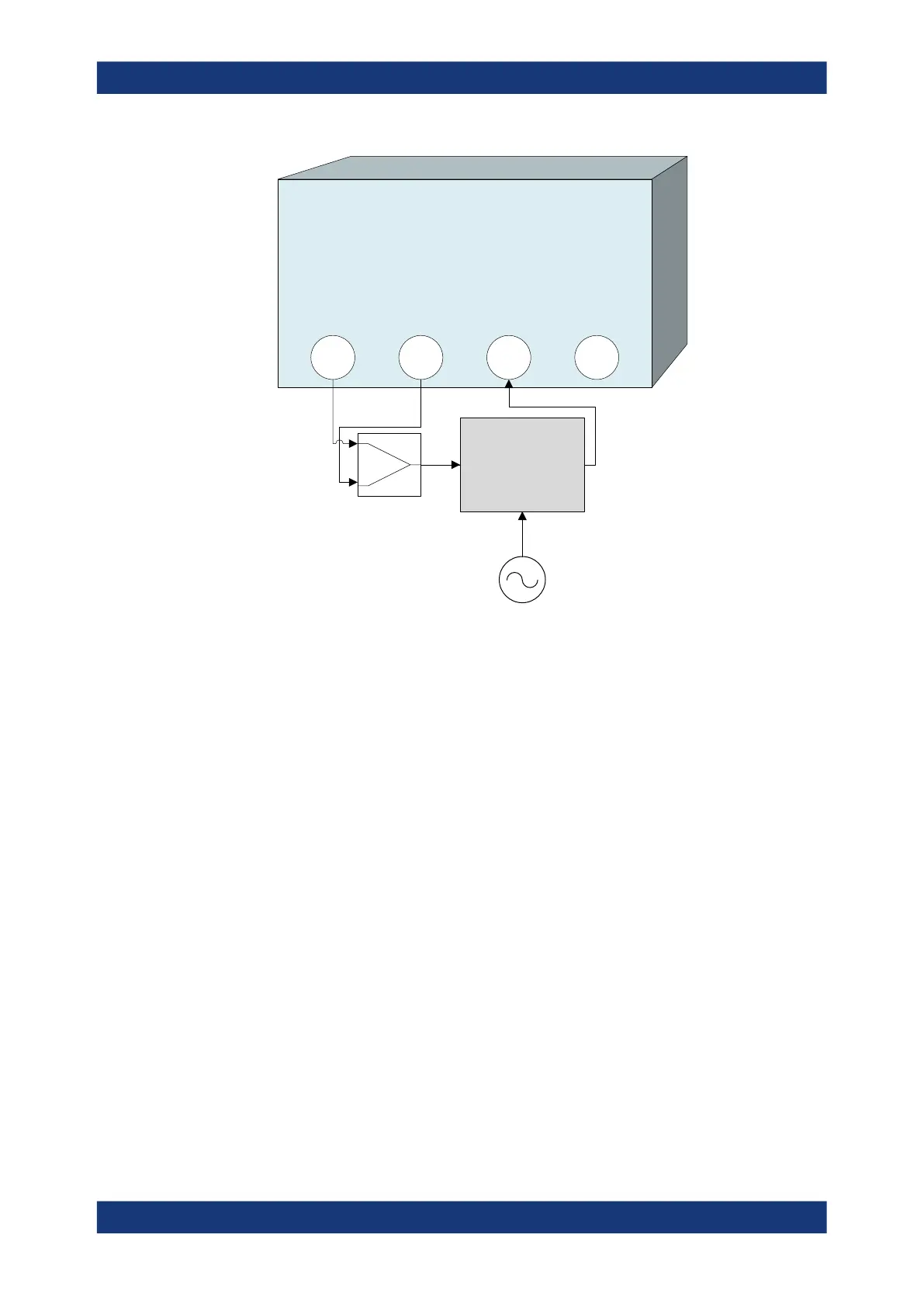

Concepts and features
R&S
®
ZNB/ZNBT
244
User Manual 1
173.9163.02 ─ 62
VNA
1
3
2
4
Upper T
one
DUT
1
2
Lower T
one
LO
Intermodulation measurement results
The intermodulation measurement provides two different types of results:
●
In the swept measurement, the analyzer performs a frequency or power sweep of
the two-tone stimulus signal and displays the selected intermodulation quantities
as a function of the lower-tone frequency or power
.
Optional extensions and accessories
243
245
