R&S ZNB Series User Manual

GUI reference
R&S
®
ZNB/ZNBT
556User Manual 1173.9163.02 ─ 62
Start Meas
Starts the voltage and current measurement.
Note that "Start Meas" does not automatically activate the "Output Voltage" and
"Range" / "Shunt" settings of the current channel. Use Set to activate them manually.
The measurement (=sampling) time can only be set via remote command. It is not
channel-specific and applies to RFFE and GPIO measurements.
Remote command:
CONTrol<Ch>:RFFE:TEST:SENSe:TRIGger
CONTrol<Ch>:RFFE:TEST:TIME
Voltage, Current
Results of the voltage/current measurements on the related RFFE pins.
Remote command:
CONTrol:RFFE<Bus>:TEST:DATA:VOLTage?
CONTrol:RFFE<Bus>:TEST:CLOCk:VOLTage?
CONTrol:RFFE<Bus>:TEST:VIO:VOLTage?
CONTrol:RFFE<Bus>:TEST:DATA:CURRent?
CONTrol:RFFE<Bus>:TEST:CLOCk:CURRent?
CONTrol:RFFE<Bus>:TEST:VIO:CURRent?
5.12.1.5 GPIO configuration
Access: GPIOs tab of the "RFFE Config" dialog
Basic GPIO configuration
The (left part of the) GPIO config table gives access to the channel-specific GPIO volt-
age settings.

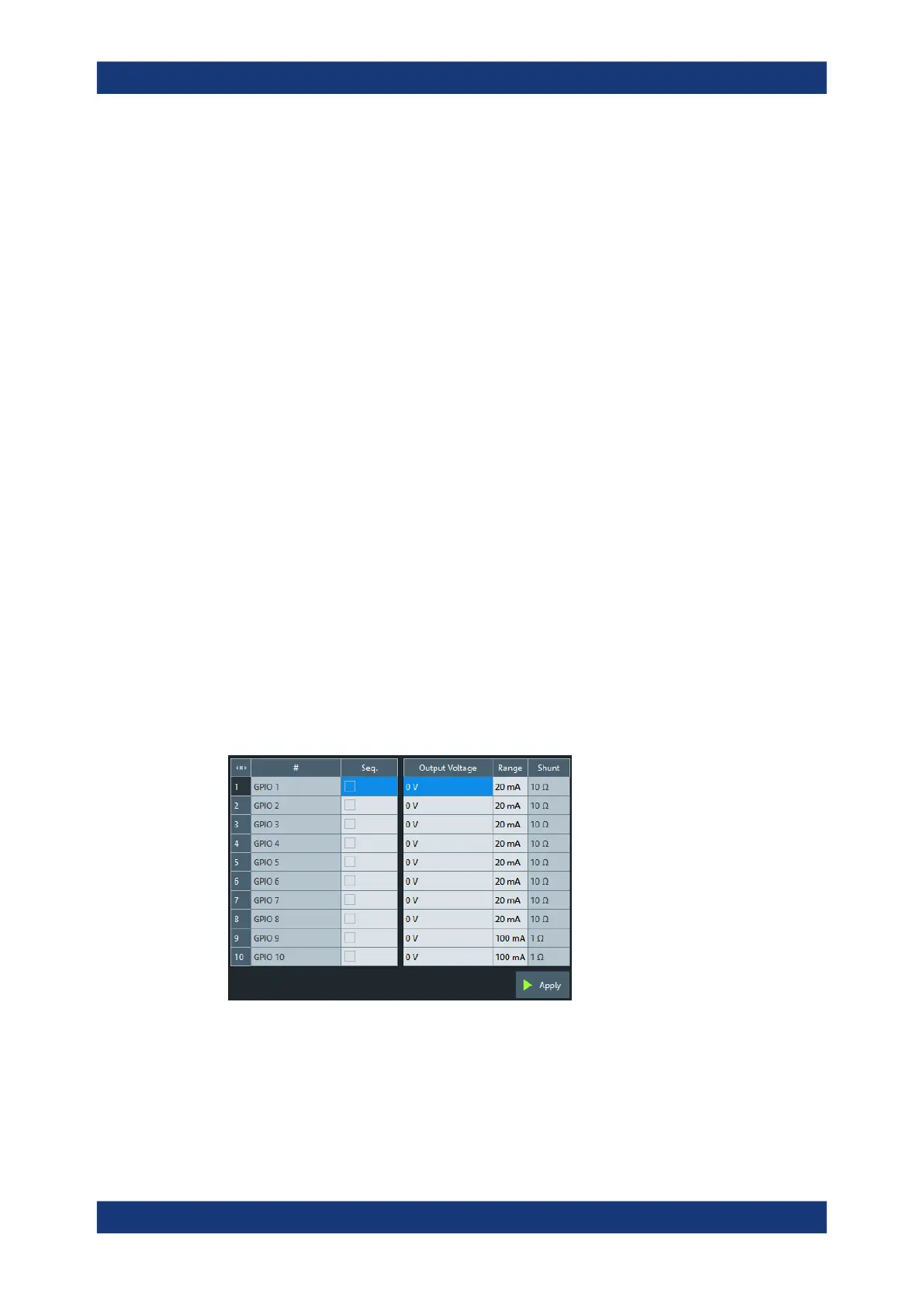

Figure 5-44: Basic GPIO Configuration for HW Var. 03
Seq.
Enables/disables the corresponding GPIO pin in the Sweep Sequencer (see Chap-
ter 5.12.1.6, "Sweep Sequencer", on page 558).
Channel Config softtool
