Ch<n> Calibration Properties/Cal Group <n> Properties

Displays the basic channel settings and the properties of the system error correction

and the power correction for the channel (calibration group) selected in the "Channel

State" ("Pool") table.

"Ch<n> Calibration Properties" also indicates settings mismatches (between the

selected channel and the channel setup that was used during calibration) that lead to a

"Cal Off". Currently this indication is limited to settings related to Parallel Measure-

ments with Frequency Offset and Freq Sweep Mode.

In addition, it is stated whether sweep data are available for the selected calibration.

Remote command:

[SENSe<Ch>:]CORRection:DATE?

[SENSe<Ch>:]CORRection:DATA:PARameter<Sfk>?

[SENSe<Ch>:]CORRection:DATA:PARameter<Sfk>:PORT<PhyPt>?

[SENSe<Ch>:]CORRection:DATA:PARameter:COUNt?

[SENSe<Chn>:]CORRection:SSTate?

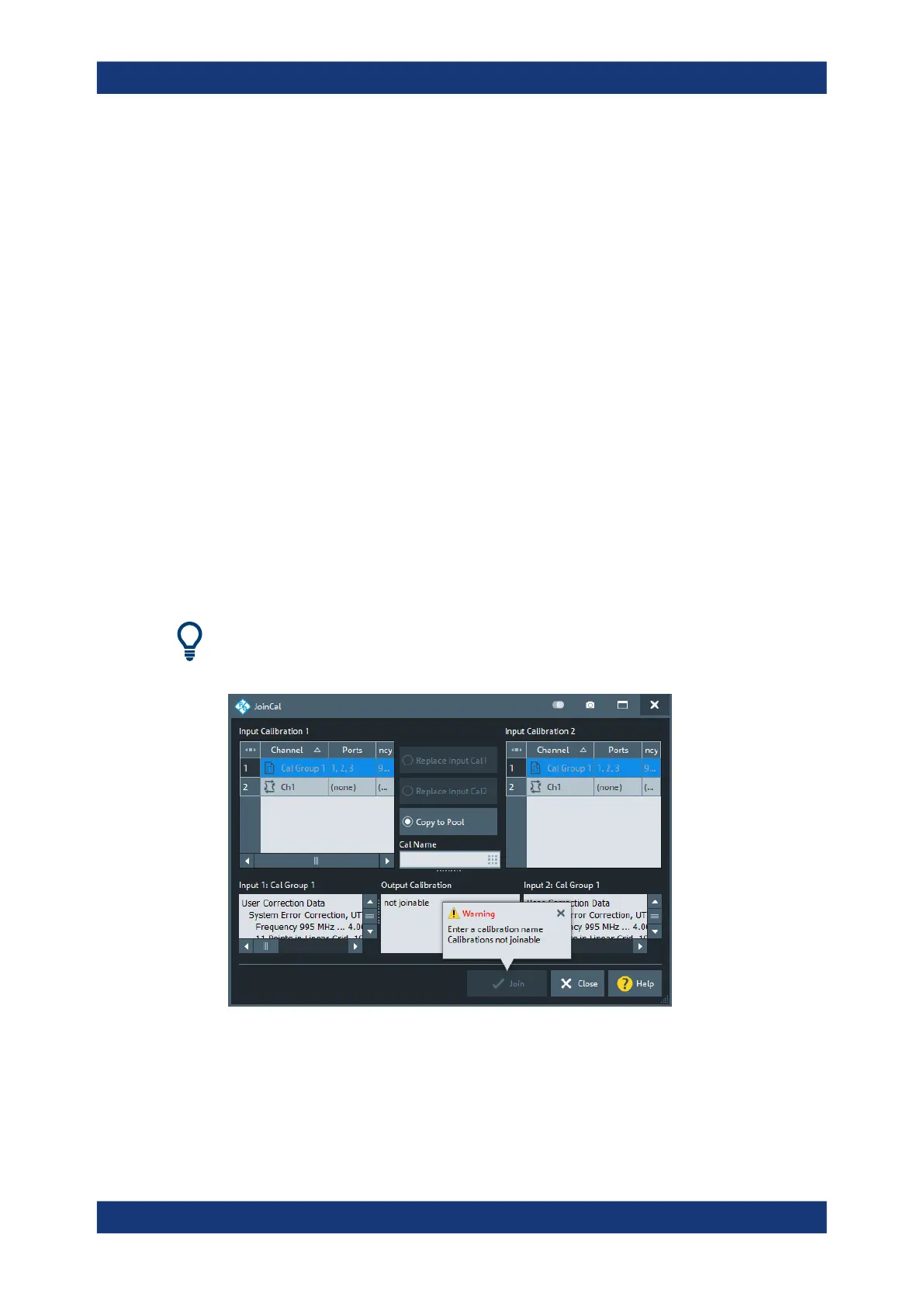

5.11.4.4 JoinCal dialog

Allows you to join existing calibrations.

Access: Channel – [Cal] > "Use Cal" > "JoinCal"

Background information

See Chapter 4.5.9, "Joining calibrations", on page 202.

Input Calibration1/Input Calibration2/Cal Name

Select the input calibrations to be joined, and specify a name for the resulting calibra-

tion

Remote command:

SYSTem:CORRection:JOINcal
