Tracking

Enables or disables tracking for "Multiple Peak" search. If enabled, a new multiple

peak search is performed for each sweep (creating/deleting markers as needed).

Define an Eval Range to restrict the search to the adequate frequency or power inter-

val.

Remote command:

CALCulate<Chn>:MARKer<Mk>:SEARch:TRACking

Marker Config...

Opens the Multiple Marker Config dialog.

All Markers Off

See "All Off" on page 392.

5.7.4.2 Multiple Marker Config dialog

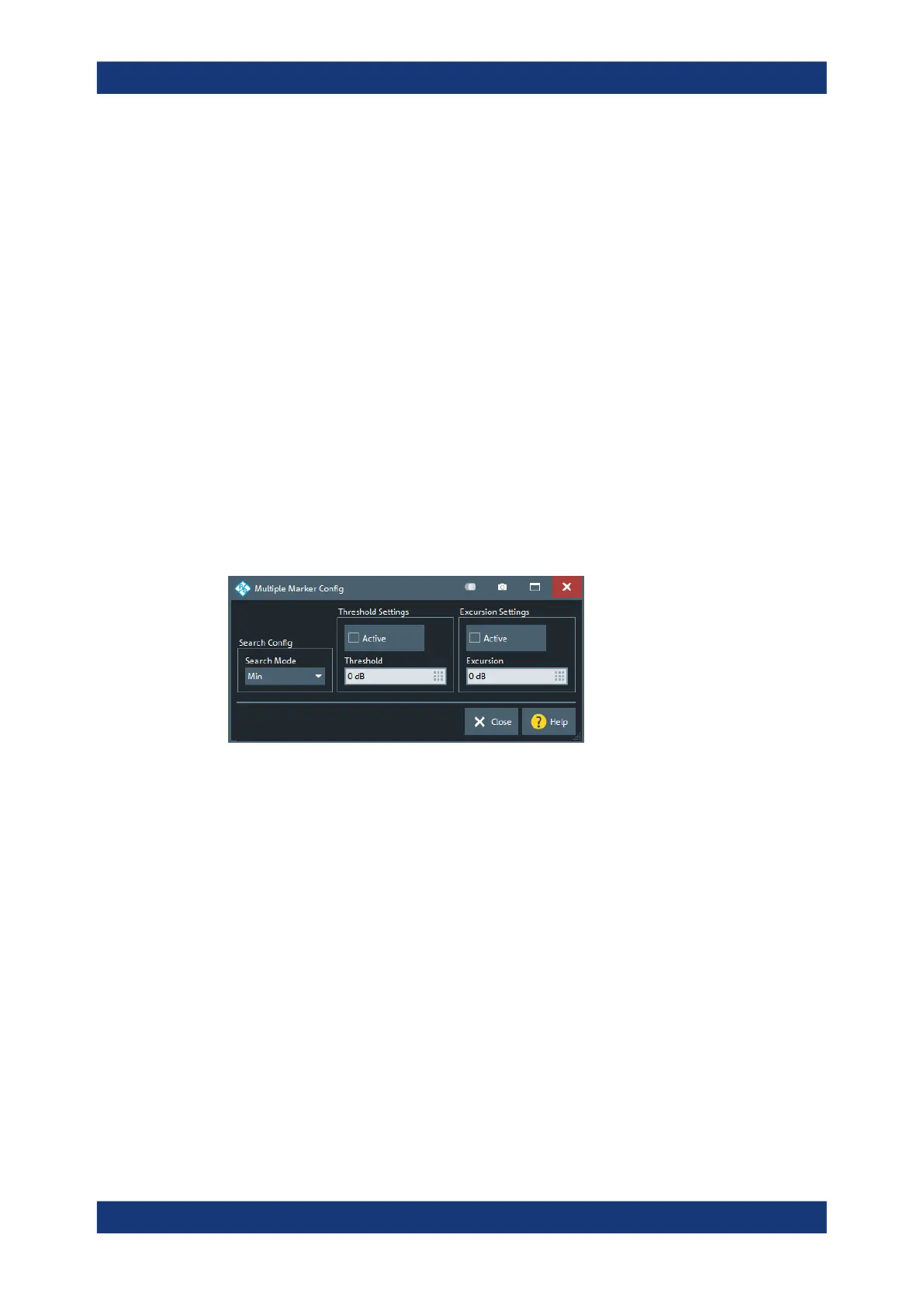

The "Multiple Marker Config" dialog allows you to configure the multiple peak searches

for the active trace.

Access: Trace – [Marker] > "Multiple Peak" > "Marker Config..."

Search Config

Same as selecting Max / Min.

Remote command:

CALCulate<Chn>:MARKer<Mk>:FUNCtion:EXECute MMAXimum | MMINimum

CALCulate<Chn>:MARKer<Mk>:REFerence:FUNCtion:EXECute MMAXimum |

MMINimum

Threshold Settings

Defines a threshold for multiple peak searches and activates it.

If "Active", only maxima above and minima below the configured "Threshold" are con-

sidered.

The unit is derived from the active trace format and cannot be modified. Changing the

trace format resets the "Threshold" to a format-specific default value.

Remote command:

CALCulate<Chn>:MARKer:MPEak:THReshold

CALCulate<Chn>:MARKer:MPEak:THReshold:STATe

Marker softtool
