5.13.9 Differential Match tab

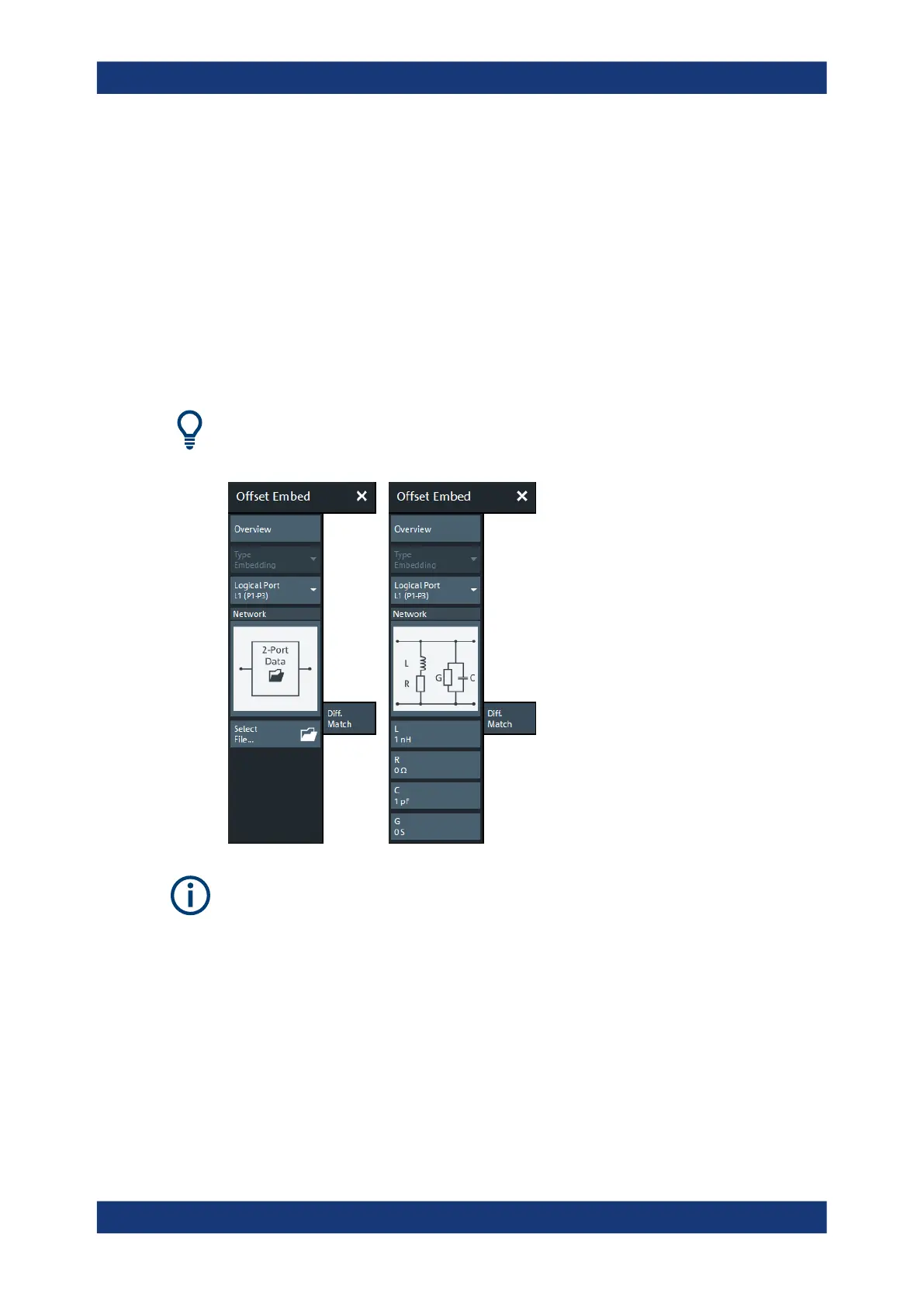

Allows you to specify a 2-port embedding network for the differential mode of a bal-
anced port.
Such a network is either defined
●
via its S-parameter stored in a two-port Touchstone file (*.s2p) or
●
by specifying the parameters of a "Shunt L, Shunt C" lumped element model
Use the complementary dock widget to access the balanced port configuration and to
activate or deactivate "Differential Match" embedding for selected balanced ports (see
Chapter 5.13.1.8, "Differential Match panel", on page 614).
Background information
Refer to Chapter 4.6.2.8, "Differential match embedding", on page 216.
If the "Fixture Simulator" is disabled for the related channel (see
"Fixture Simulator"
on page 549), this tab is inactive, i.e. all controls except the "Overview" button are
grayed out.
Overview
See "Overview" on page 616.
Type
Currently only Differential Match"Embedding" is supported.
Offset Embed softtool
