Programming examples

R&S

ZNB/ZNBT

1507User Manual 1173.9163.02 ─ 62

// Bandstop search ref. to marker

:CALCulate1:MARKer1:STATe ON

:CALCulate1:MARKer1:X 1.7 GHz

:CALCulate1:MARKer:FUNCtion:BWIDth:MODE BsRMarker

:CALCulate1:MARKer:FUNCtion:BWIDth:MODE? %BsRM

:INITiate; *WAI;

:CALCulate1:MARKer:FUNCtion:EXECute BFILter

8.2.2.6 Creating diagrams

In the following example, remote control commands are used to position several dia-

grams on the screen. The remote control commands presented here extend the func-

tionality of the "Display > Diagram" and "Display > Split" softtool tabs.

// Reset the analyzer

*RST

:SYSTEM:DISPLAY:UPDATE ON

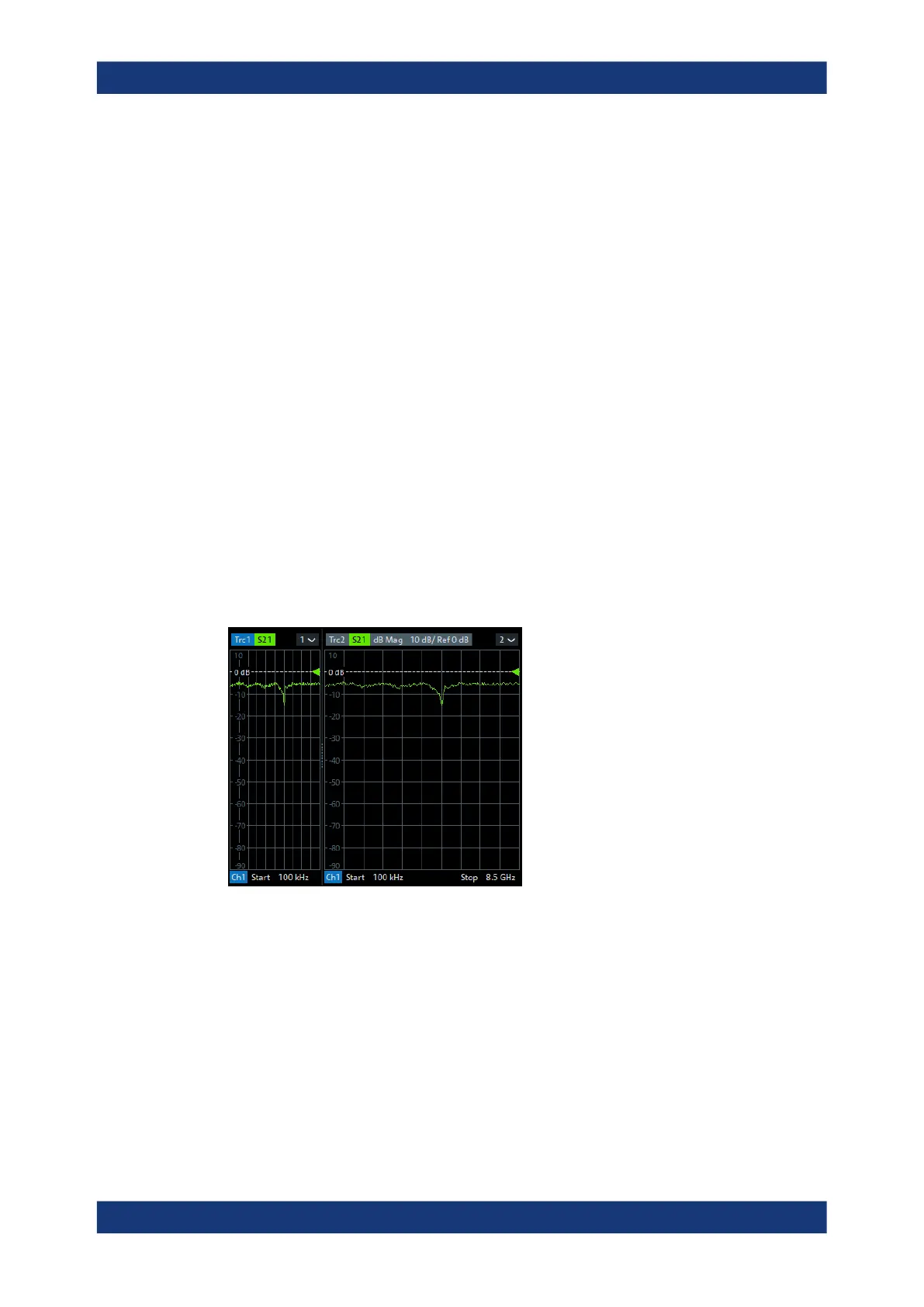

// Define and display a simple horizontal layout (two diagrams side by side)

:DISPlay:LAYout:DEFine 1, Horizontal, '1.00,0.30,0.70'

:DISPlay:LAYout:APPLy 1

// Define and display a simple vertical layout (two diagrams, one on top of the

other)

:DISPlay:LAYout:DEFine 2, Vertical, '1.00,0.50,0.50'

:DISPlay:LAYout:APPLy 2
