GUI reference
R&S
®
ZNB/ZNBT
641User Manual 1173.9163.02 ─ 62

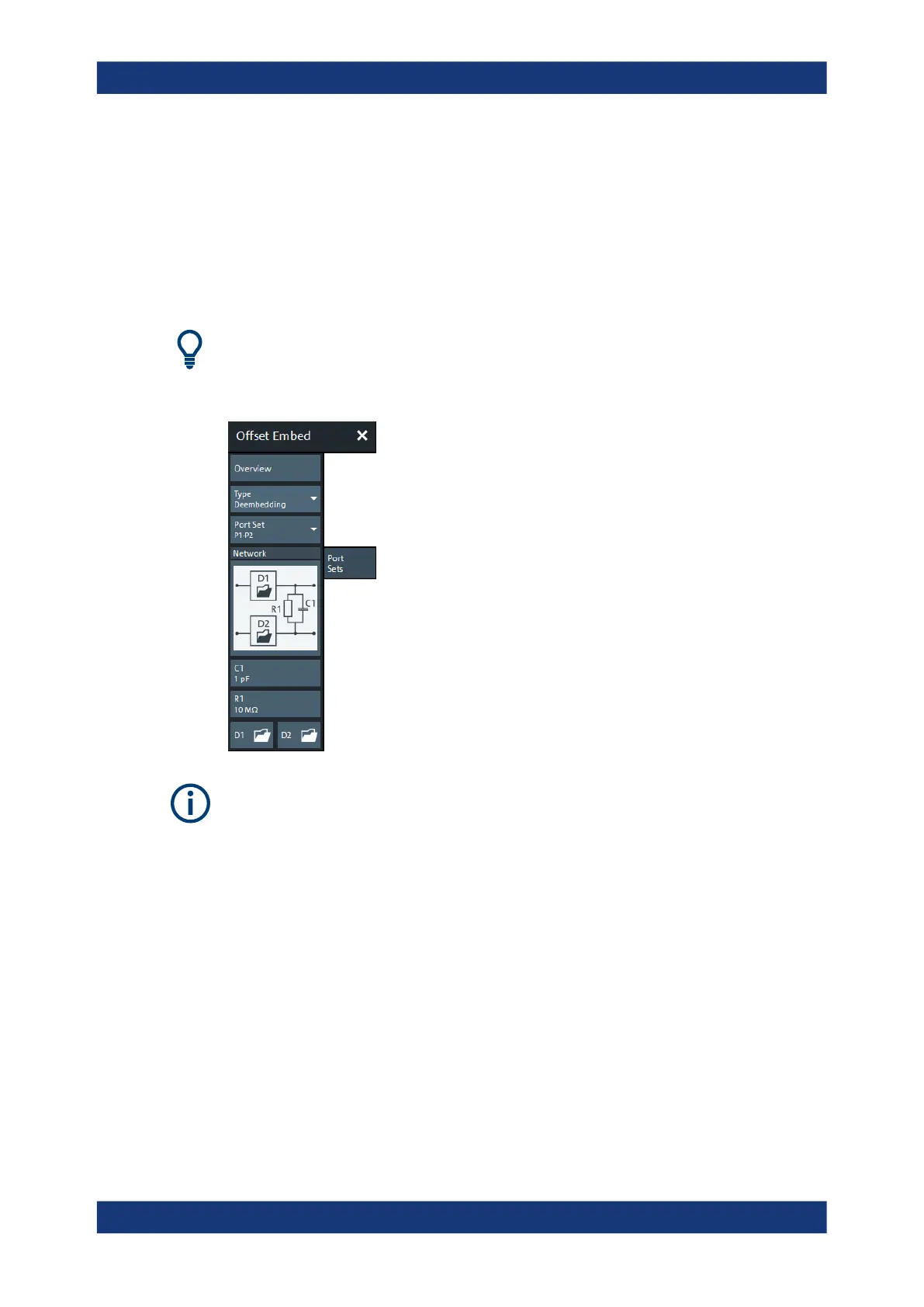

5.13.6 Port Sets tab
Selects transformation networks for deembedding/embedding arbitrary port sets,
defines their parameters, assigns them to a port set and enables embedding.
Use the complementary dock widget to create the required port sets and to activate or
deactivate dembedding/embedding for selected port sets (see Chapter 5.13.1.4, "Port
Sets panel", on page 609).
Background information
Refer to Chapter 4.6.2.5, "Port pair de-/embedding", on page 213 and Chapter 4.6.2.6,
"Port set de-/embedding", on page 214.
If the "Fixture Simulator" is disabled for the related channel (see
"Fixture Simulator"
on page 549), this tab is inactive, i.e. all controls except the "Overview" button are
grayed out.
Overview
See "Overview" on page 616.
Type
Switches between "Deembedding" and "Embedding" network definition.
Port Set
Port sets, defined in the complementary Port Sets panel dock widget panel. The trans-
formation networks are defined such that the physical analyzer test ports are connec-
ted to the left of the circuit; the DUT ports are on the right side. You can define inde-
pendent transformation networks for all port sets.
The port set number, i.e. the number at the beginning of each "Port Set" item, corre-
sponds to the position of the port set in the Port Sets panel.
Offset Embed softtool
