Preset Configuration
Specifies whether the preset action performs a factory preset or restores a user preset
file. A user preset file is an arbitrary recall set file (*.znx|*.znxml), that can be cre-
ated from the active setup using System – [File] > "Save...". If the current user preset
file is not found (e.g. because it was deleted or moved), System – [Preset] initiates a
factory preset.
The preset configuration applies to:
●
the System – [Preset] hardkey
●
the remote commands *RST and SYSTem:PRESet (if "Align *RST to User Defined
Preset" is selected in the Remote Preset Configuration section).
Furthermore, the user preset file is used as a template, whenever New recall set files
are created from the GUI.
Remote command:
SYSTem:PRESet:USER:NAME
SYSTem:PRESet:USER[:STATe]
Start in Preset
If this option is active, the R&S ZNB/ZNBT FW always starts with the configured Preset
Configuration. Otherwise it starts with the previous state, i.e. the settings that were per-
sisted during the previous shutdown.
Remote command:
SYSTem:PRESet:STARt

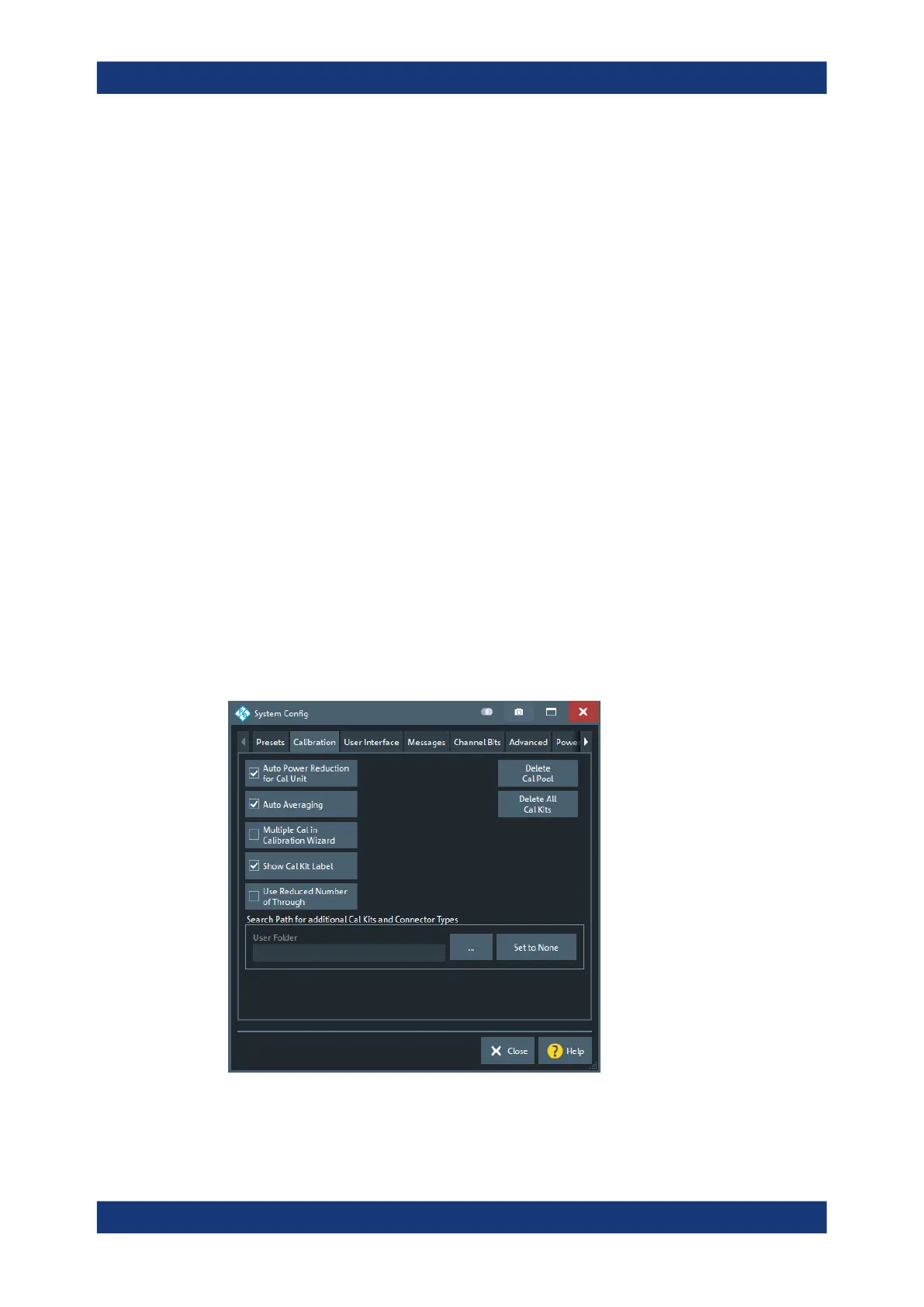

Calibration tab
Provides general system error correction (calibration) settings.
Setup softtool
