Getting started
R&S
®
ZNB/ZNBT
52User Manual 1173.9163.02 ─ 62
also Chapter 3.1.11, "Connecting external accessories", on page 31) or via Remote
Desktop (see also Chapter 3.1.12, "Remote operation in a LAN", on page 35).
Manual operation and remote control are described to their full extent in the GUI refer-
ence and Command reference chapters, respectively. GUI functions and their related
remote commands are linked bidirectionally. Background information is provided in the
Concepts and features chapter.
3.3.1 Manual operation
The analyzer functions are accessible via several tabbed softtools, each presenting
related functions and settings. The function keys on the front panel (R&S ZNB only) or
the on-screen "Hard Key Panel" open the most frequently used softtools.
Manual operation via function keys and softtools provides touch-friendly access to the
instrument functions and settings, avoiding complicated menu structures and long
operating sequences. In general, this approach is recommended. However, sometimes
the toolbar or an object's context menu can offer a shortcut. As a full-fledged alterna-
tive for manual operation via mouse and keyboard, also the menu bar provides access
to all instrument functions and settings.

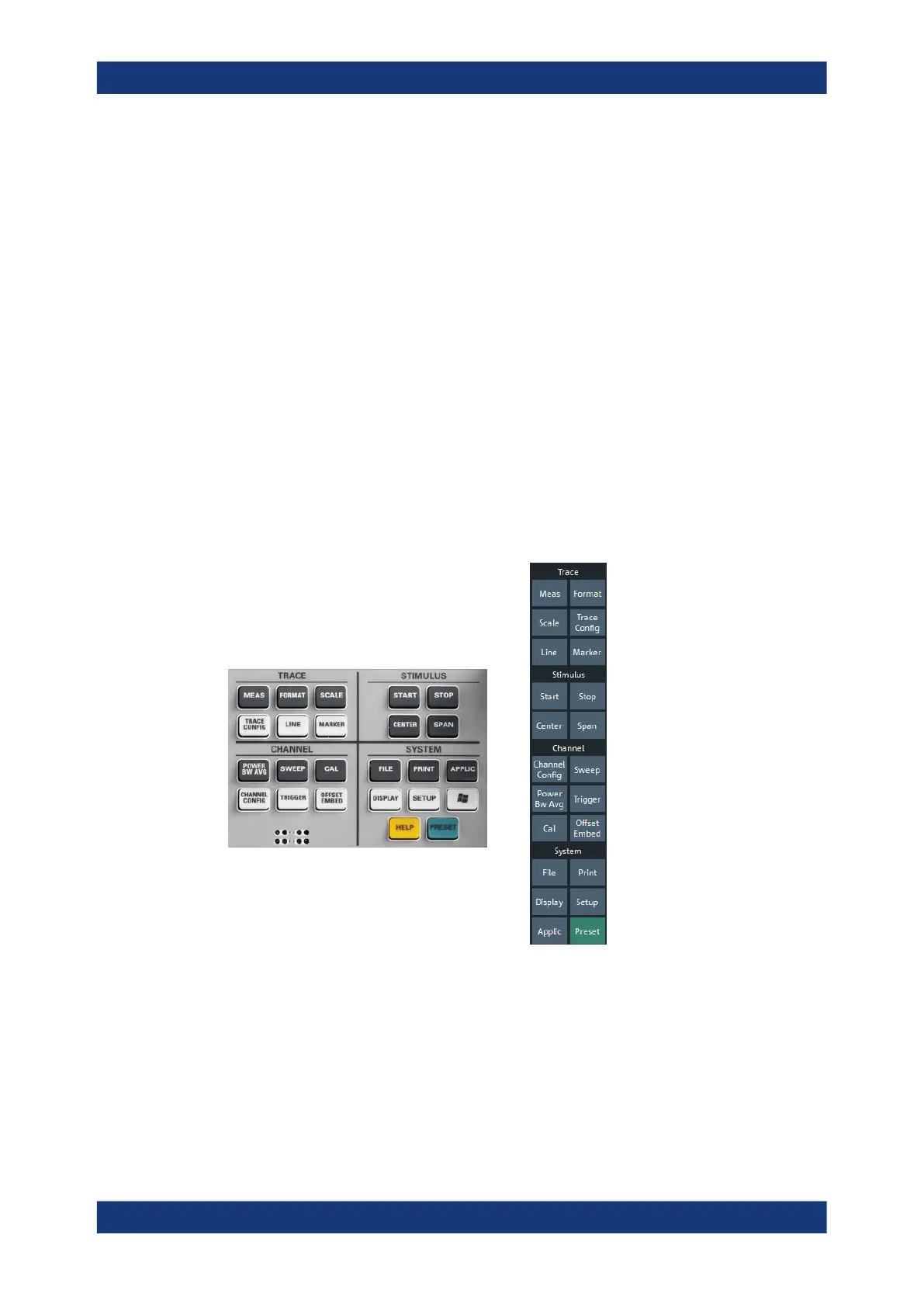

Figure 3-6: Function Keys
Operating the instrument
